Microlab m1910 [4/4] Illustrations
![Microlab m1910 [4/4] Illustrations](/views2/1175788/page4/bg4.png)
Mp3 \ Mp4
Media player
TV
Gaming de vi ce s
PC or No te bo ok
Media
player
CD\ VCD \ DVD
Blu-Ray player
Connections
to AC
power supply
20. Please remove the power plug form the main power source or wall power source when not in use. When plugged in to a
power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse
specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker
may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the
wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times
while the product is in use.
25. Try to install the product near a wall socket or extension cord and shall be easily accessible.
26. The highest environmental temperature suitable for this product is 40°C.
Introduction
Features
Pure sound with PCM technology
Power 5.1 subwoofer system with cinematic effects
Connects to stereo and 5.1 audio source such as DVD player and gaming devices
Enhance your movie effects to cinema quality
Immerse yourself in your games with acoustic effects
5 satellites to fill your room and excite your senses
Feature TOSLINK and Coaxial connectors
Remote control for standoff adjustments
Package contents
M-1910 satellites 5 pcs
M-1910 subwoofer 1 pc
2RCA - 2RCA cable 3 pcs
3.5mm - 2RCA cable 1 pc
Coaxial cable 1 pc
Optical cable 1 pc
Remote control 1 pc
User manual 1pc
Enhance your rudimentary TV audio to home theater sound effects with this powerful 5.1 system. Versatile
in capabilities, it lets you connect to many multimedia platform options. You can connect to your digital
audio processor, or CD/DVD player, Mp3/Mp4 media player, or your TV.
Comes complete with front stereo and center satellites to create sound movements in your room. Two
surround satellites placed at the rear for extra sound dimension.
Powerful subwoofer with built-in amplifier that gives you unprecedented vocal and depth in bass
frequencies. The subwoofer designed with bass reflex tunnel for efficient woofer movements and
complete low frequencies production.
For purer sound, the system includes one TOSlink and one Coxial for user to connect to their
gaming devices such as PS3, XBOX or PC sound card with S/PDIF connectors.
Function Instruction

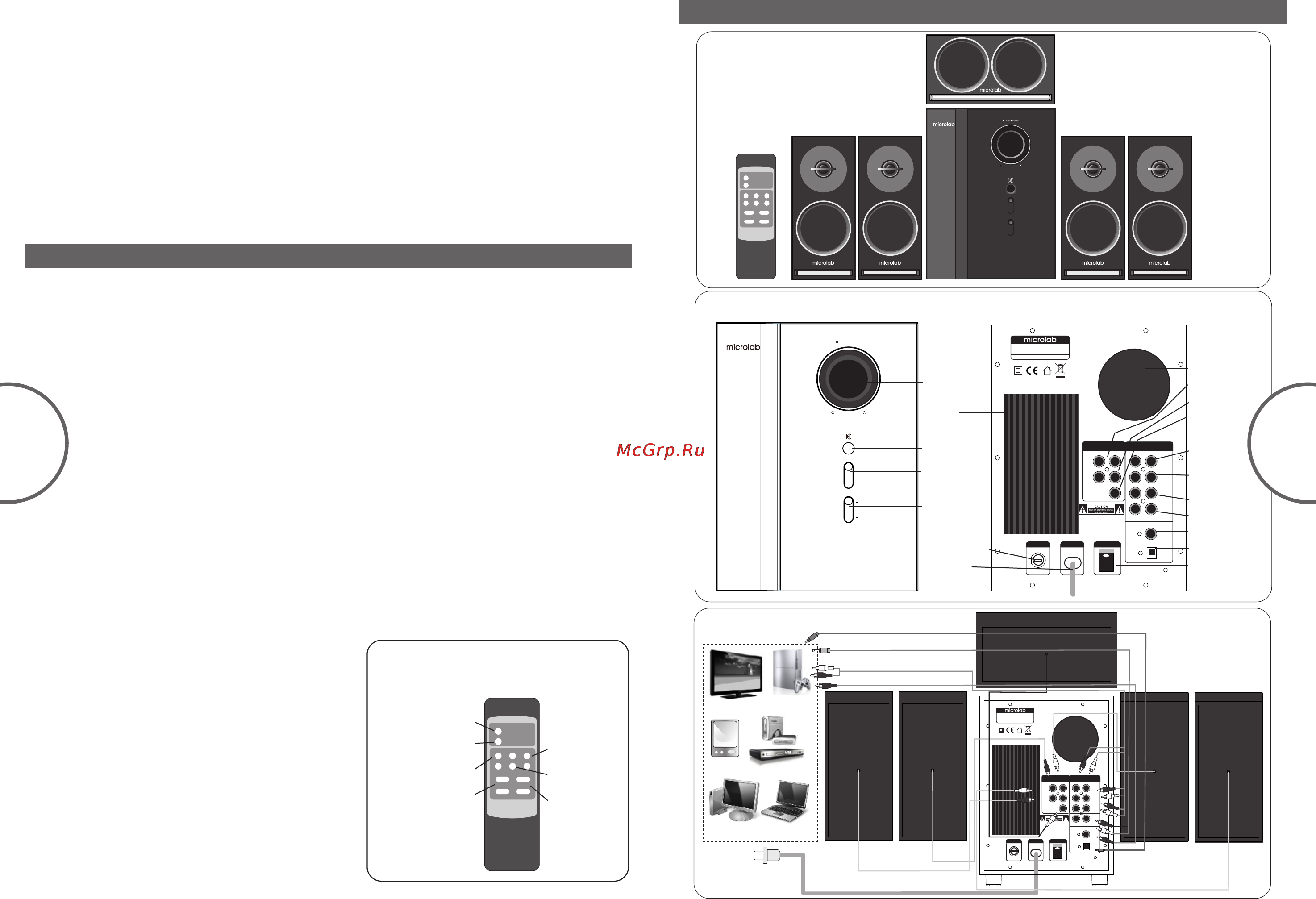

Illustrations
Front view
EN
4
EN
3
ST-BY
VOLUME
BASS
FRONT
INPUT S EL
FRONT +
FRONT-
VOLUM E+
VOLUM E-
SUB-W +
SUB-W-
CENTE R+
CENTE R-
SURR+
SURR-
MUTE
INPU T SEL
FRON T+
FRON T-
VOLU ME+
VOLU ME-
SUB- W+
SUB- W-
CENT ER+
CENT ER-
SURR +
SURR -
MUT E
BASS
VOLUME
PUSH INPUT SEL
FRON T
R L
R
L
AUD IO
OUT PUT
AUD IO
INP UT
SUR R
SUR R
FR
CEN
SW / CE N
FR
AUX
COA XIAL
OPT ICAL
T800mAL250V
FUSE
AC IN
POW ER
ON
OFF
MULTIMEDIA SPEAKER
MODEL: M-1910
MADE IN CHINA
Front panel
Rear panel
Volume knob/
Input selector
(toggle)
Heat sink
Standby:
power savings
mode (LED)
Bass adjustment
Front adjustment
FU SE compartment
AC input cord
Bass reflex tunnel
To Surround satellites
To Front satellites
To Center satellite
Surround (rear)
inputs
Subwoofer/Center
inputs
Front inputs
AUX: stereo inputs
Coaxial input
Optical TOSlink input
Power ON/OFF switch
R L
R
L
AUDIO
OUTPU T
AUDIO
INPUT
SURR
SURR
FR
CEN
SW / CEN
FR
AUX
COAXI AL
OPTIC AL
T800mAL250V
FUSE
AC IN
POWER
ON
OFF
MULTIMEDIA SPEAKER
MODEL: M-1910
MADE IN CHINA
Coaxial connection
x3 cables - 5.1 home theater
3.5mm stereo connection (AUX)
Optical S/PDIF (gaming devices, etc)
Subwoofer
Subwoofer
Right
Surr Right
Left
Surr Left
Center
Remote
control
Remote
control
Surr
Left
Left
Center
Right
Surr
Right
Subwoofer
Mute: turn off volume
temporary
Input Selector:
Change audio source
Front volume adjustments
Master volume adjustments
Surround volume
adjustments
Center volume
adjustments
Subwoofer volume
adjustments
80-M1910-97-0001-01 2012-05-09 (Change remote control and front panel)
