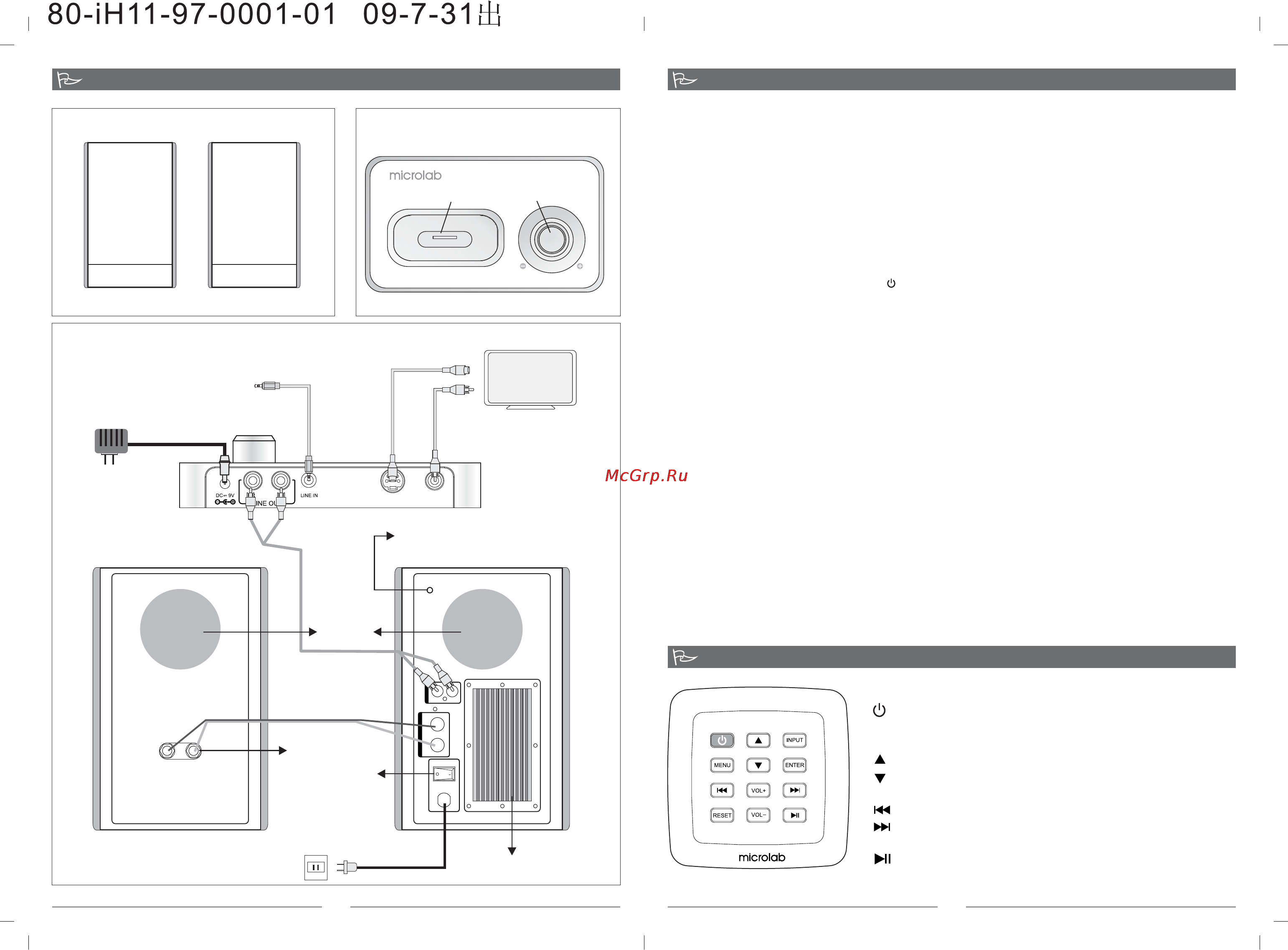

Product connection and operationIllustrations
3 4
Front Panel
iPod docking interface
Volume dial
iDock top panel
Connections
a. Connect the LINE OUT of iDock with the audio signal input port of the Main Speaker.
b. Connect the LINE IN of iDock with the audio output port of the audio players, e.g., DVD player or
PC, etc. If the iPod is docked, the LINE IN is not to be used and vice versa.
c. Connect the S-VIDEO OUT/Composite OUT of the iDock with the TV or LCD respective video input
ports.
d. Connect the power adaptor
,
s DC plug into the iDock DC 9V socket, and the other end into the wall
or AC power supply.
a. Turn on the AC power supply. The Volume dial LED remains off and ensure the Volume dial
remains at the lowest point to prevent speaker damage from sudden volume spike.
b. Turn the volume dial or press the " " (ST-BY) on the remote control to turn on the product. The blue
luminous ring LED is lighted.
With the iPod docked, the audio output is from the iPod interface. When there is no iPod player
connected, the LINE IN becomes the default input selection. Any digital audio playback devices can
be connected via this 3.5mm stereo interface.
Note: When using iPod, please install the base adaptor of your respective iPod player version into
the common base of the system.
a. Connect the interconnect speaker cable to the Sub speaker and the other end to the Main
speaker's audio output jacks (terminals)
b. Ensure the terminal polarity connections are matched both ends.
c. Ensure the master volume is turned down low or minimum, connect the 2RCA left and right
connector to the Main speaker rear audio input jacks.
d. Connect the corresponding end to the iDock LINE IN.
a. Depress the POWER switch on the Main speaker to turn on the multimedia speaker system.
b. Ensure that your audio source is correctly configured and start the playback file.
c. Adjust the master volume on the iDock or the side bass control to your preferred levels.
Alternatively you can use the remote control to adjust the volume levels to your preferred
listening ambience.
1. iDock connection
Operation
Input selections:
2. Multimedia speaker connections
Operation
Remote control illustration
Remote control
Functions:
: Power ON / Off button, product goes to standby in Off mode
INPUT: Depress to select between line input or iPod interface
MENU: Revert to iPod's previous menu
: Previous menu
: Next menu
ENTER: Confirm selected menu
: Previous song
: Next song
VOL+/-: Volume adjustment level
: Play or Pause the playback
RESET: Depress to revert volume to factory default settings.
from CD/MP3/MP4/DVD/PC...
or any digital audio playback source
with 3.5mm stereo socket
Basic connections
TV or projection screen
Power adaptor
AC power source: 100 to 240V
Video outputs:
S-Video or Composite
iDock Rear panel
ON
OFF
AC IN
A
U
D
IO
IN
P
U
T
A
U
D
IO
O
U
TP
U
T
L
R
L
-
L+
Red LED illumination
AC power supply:
120V~ 60Hz
Power
switch
Sub Speaker Main Speaker
Heat sink
Bass reflex
tunnel
Terminals
Sub SpeakerMain Speaker
