Advanced Settings
114
A750 Wireless Dual Band Gigabit Router JR6150
The router changes to a new IP address that is assigned by your existing router. As a
result, this screen might not display.
8. Enter www.routerlogin.net and log in again.

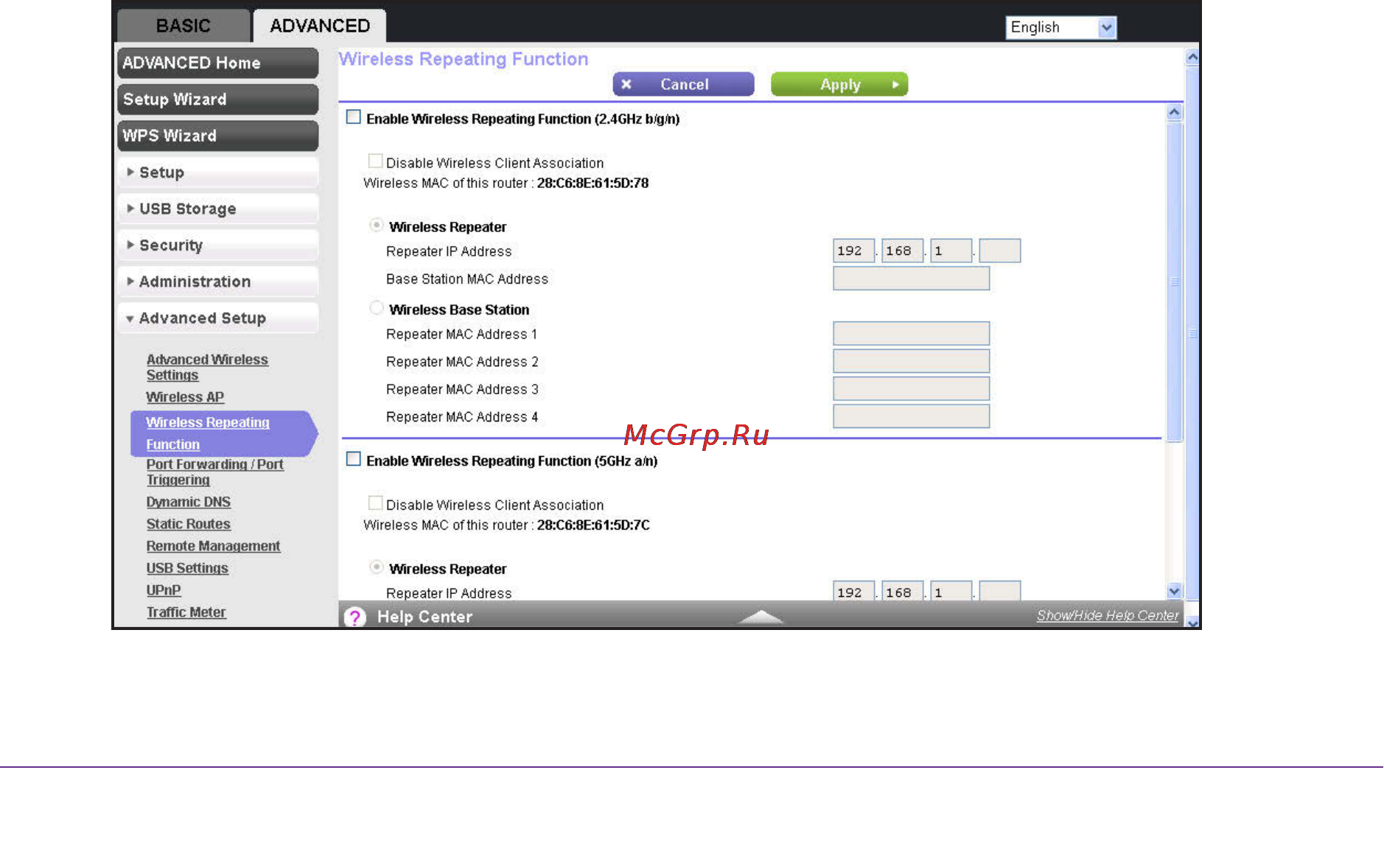

Wireless Repeating Function
You can set up the router to be used as a wireless base station or wireless repeater in a
wireless distribution system (WDS). A WDS lets you expand a wireless network through
multiple access points instead of using a wired backbone to link them. A wireless base station
connects to the Internet, can have wired and wireless clients, and sends its wireless signal to
an access point that functions as a wireless repeater. A wireless repeater can also have
wired and wireless clients, but connects to the Internet through the wireless base station.
The following figure shows a wireless repeating scenario.
RepeaterBase station
access pointaccess point
Figure 8. Wireless repeating scenario
The router can function either as a base station or as a repeater:
• Wireless base station. The router acts as the parent access point, bridging traffic to and
from the child repeater access point, as well as handling wireless and wired local
computers.
To configure this mode, you must know the MAC addresses of the child
repeater access point.
