Hardware Setup
12
A750 Wireless Dual Band Gigabit Router JR6150
• WPS/FastLane button. You can use this button to use WPS or FastLane to add a
wireless device or computer to your wireless network. The LED below the
WPS/FastLane button blinks
green when the router is trying to add the wireless device or
computer. The LED stays solid green when wireless security is enabled in the router.
Back Panel

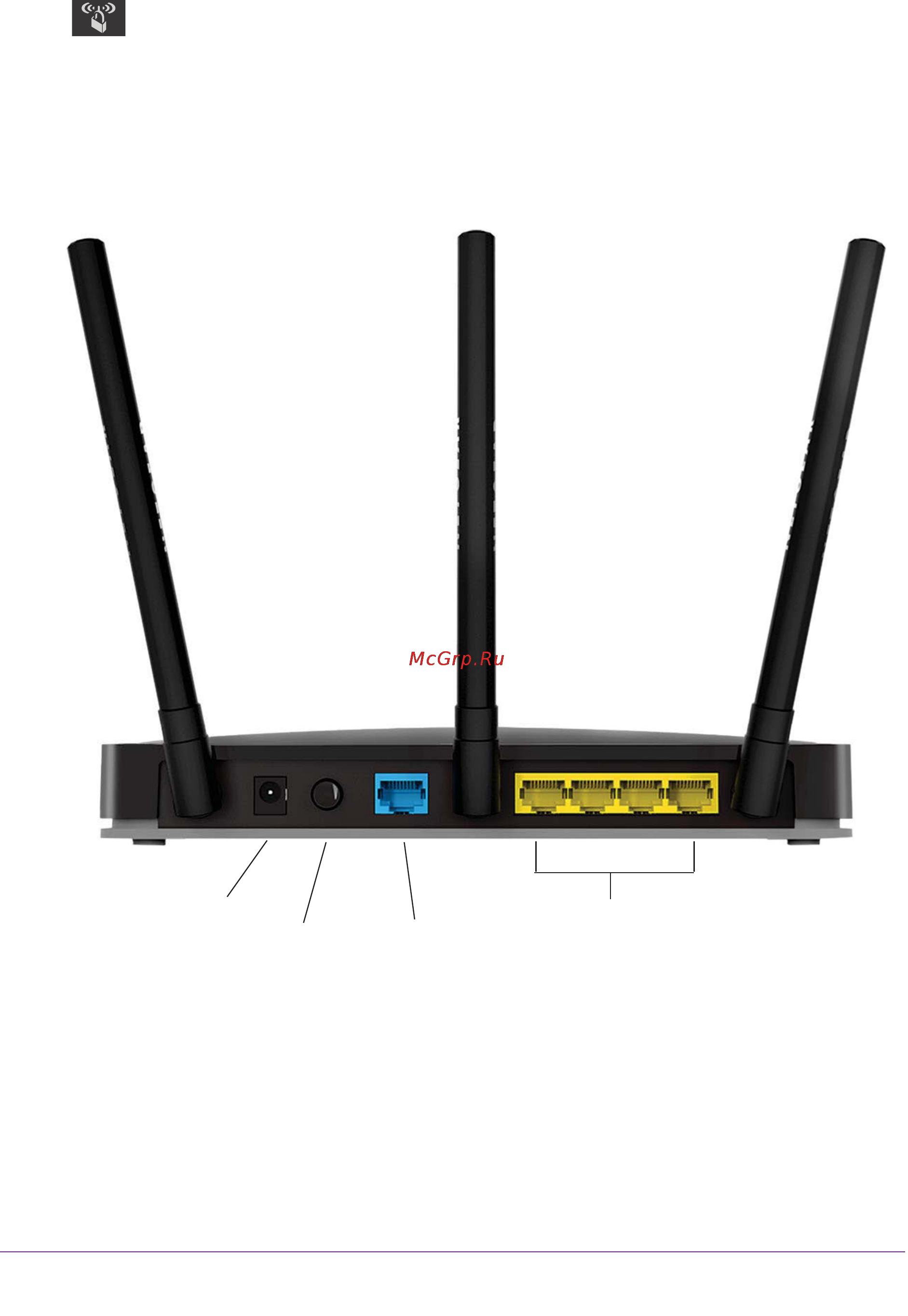

The back panel has the buttons and connections shown in the following figure.
Ethernet LAN
Internet
Power
Power On/Off button
Figure 3. Router, rear view
