Advanced Settings
115
A750 Wireless Dual Band Gigabit Router JR6150
• Wireless repeater. The router sends all traffic from its local wireless or wired computers
to a remote access point. To configure this mode, you must know the MAC address of the
remote parent access point.
For you to set up a wireless network in a WDS,
the following conditions must be met for both
access points:
• Both access points must use the same SSID, wireless channel, and encryption mode.
• Both access points must be on the same LAN IP subnet. That is, all the access point LAN
IP addresses are in the same network.
• All LAN devices (wired and wireless computers) must be configured to operate in the
same LAN network address range as the access points.
• The
channel
selection on the access points cannot be Auto (see Basic W
ireless Settings
on page 25).
• The security option must be WEP (or no security). The WEP
option displays only if you
select Up to 54 Mbps from the Mode list on the Wireless Settings screen (see Basic
Wireless Settings on page 25).
Set Up the Base Station
The wireless repeating function works only in hub and spoke mode. The units cannot be
daisy-chained. You must know the wireless MAC addresses of all units. First, set up the base
station and then set up the repeater.
To set up the base station:
1. Log in to the router.
For more information, see Use NETGEAR genie after Installation
on page 17.

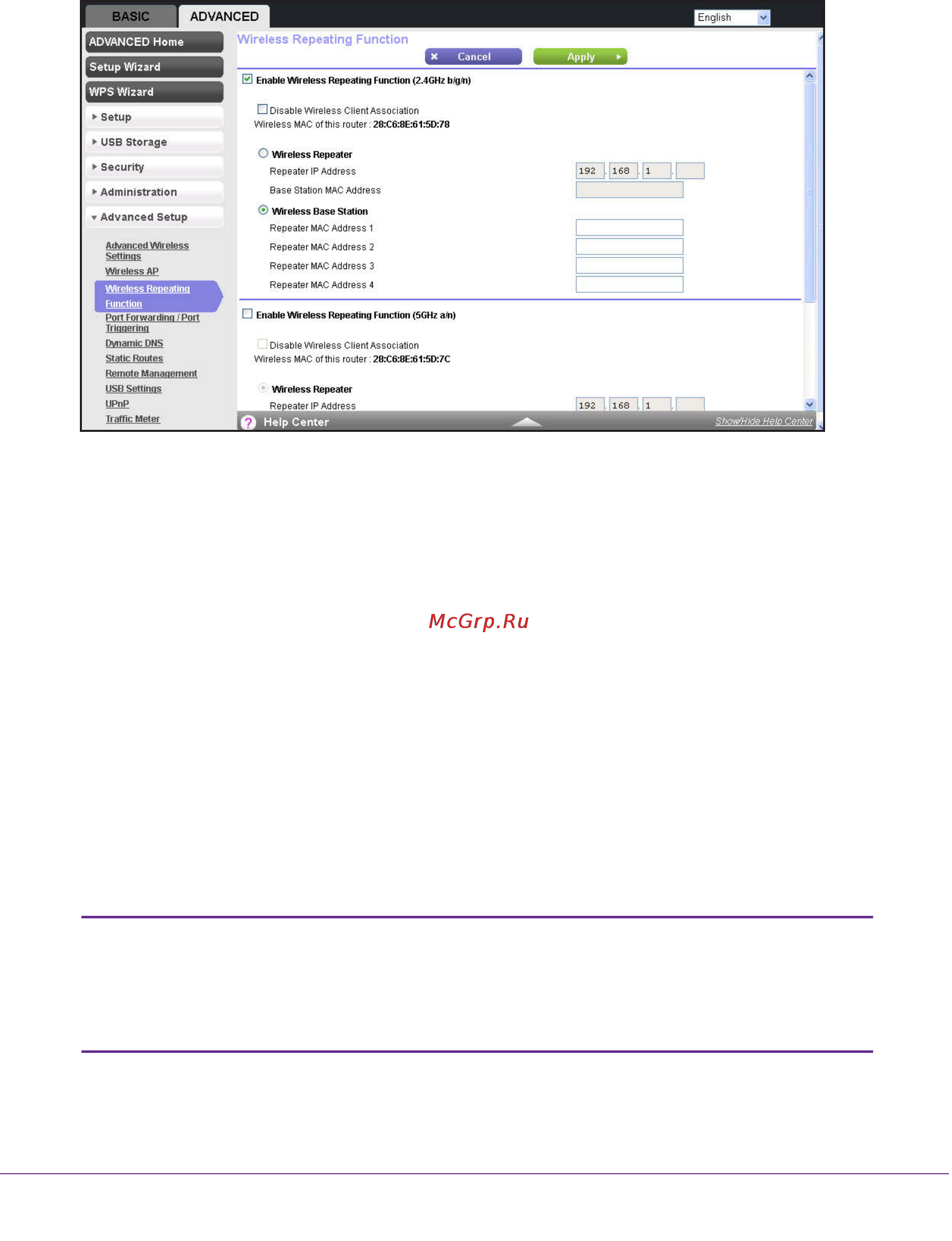

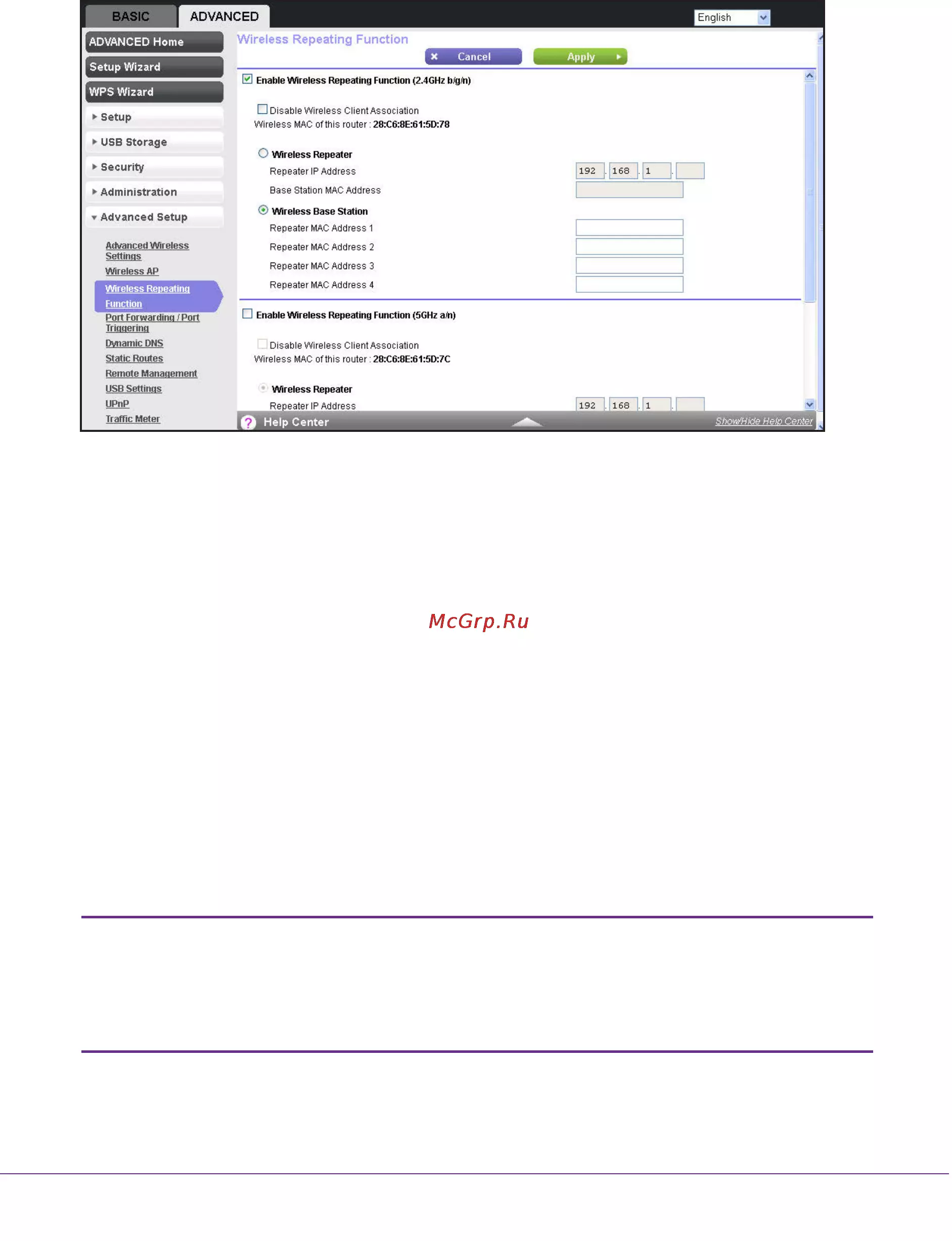

2. Select ADVANCED >
Advanced Setup > Wireless Repeating Function.
