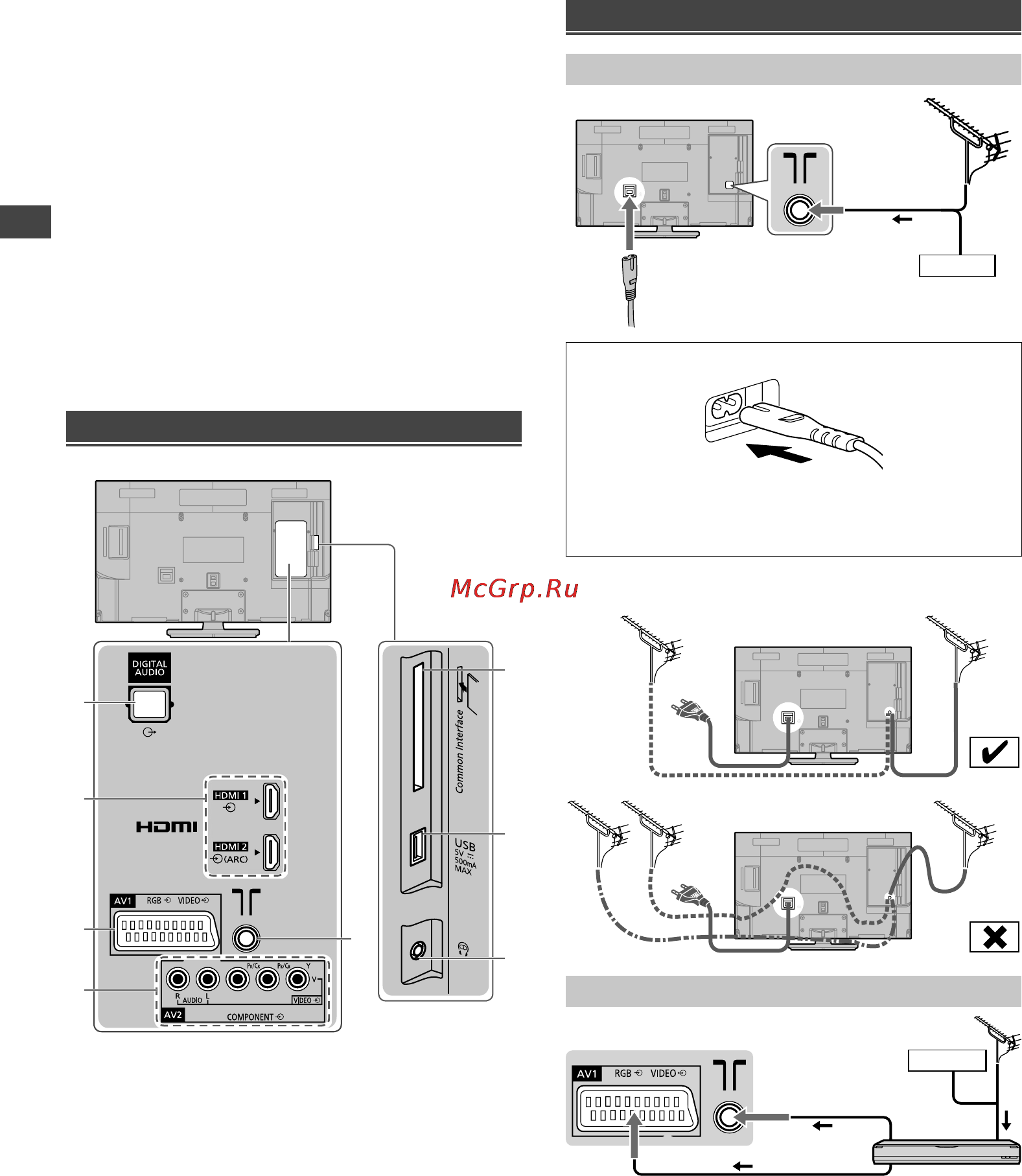

Connecting the TV
6
Connecting the TV
●
Please ensure the TV is disconnected from the mains
socket / power point before attaching or disconnecting
any RF / AV leads.
●
External equipment and cables are for illustratives
purposes only and not supplied with this TV.
●
Check the type of terminals and cable plugs are
correct when connecting.
●
When using a SCART or HDMI cable, use the fully
wired one.
●
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor.
Otherwise, distortion of image / sound may occur or
operation of other equipment may be interfered.
●
Also read the manual of the equipment being
connected.
Terminals
Rear of the TV
1
2
3
4
5
6
7
8
1 DIGITAL AUDIO
2 HDMI 1 - 2
3 AV1 (SCART)
4 AV2 (COMPONENT / VIDEO)
5 Terrestrial / cable terminal
6 Headphone jack
7 USB port
8 CI slot
Connections
Aerial and mains lead
RF cable
Cable
Mains lead
(supplied)
Terrestrial
aerial
Insert the mains plug firmly into place.
●
When disconnecting the mains lead, be absolutely
sure to disconnect the mains plug at the socket outlet
first.
●
If the aerial is placed in the wrong location, interference
might happen.
DVD Recorder / VCR
DVD Recorder /
VCR
TV
SCART cable
RF cable
RF cable
Cable
