5. OPERATION
This water heater is designed for DHW supply in residential or industrial applications.
It can be installed in any CH or solar panel heating system.
The water heater must be connected to the water supply via the cold water coupling and to DHW utilities via the hot water
coupling. When DHW is required, cold water enters the tank where it is heated to the temperature set on the thermostat, if
there is one.
The ideal setting is 60-65°C because this temperature guarantees the best performance of the water heater as well as:
- maximum hygiene
- cost effectiveness
- reduced scaling
DHW in the tank is heated by CH/solar heated water owing through the heat exchangers.

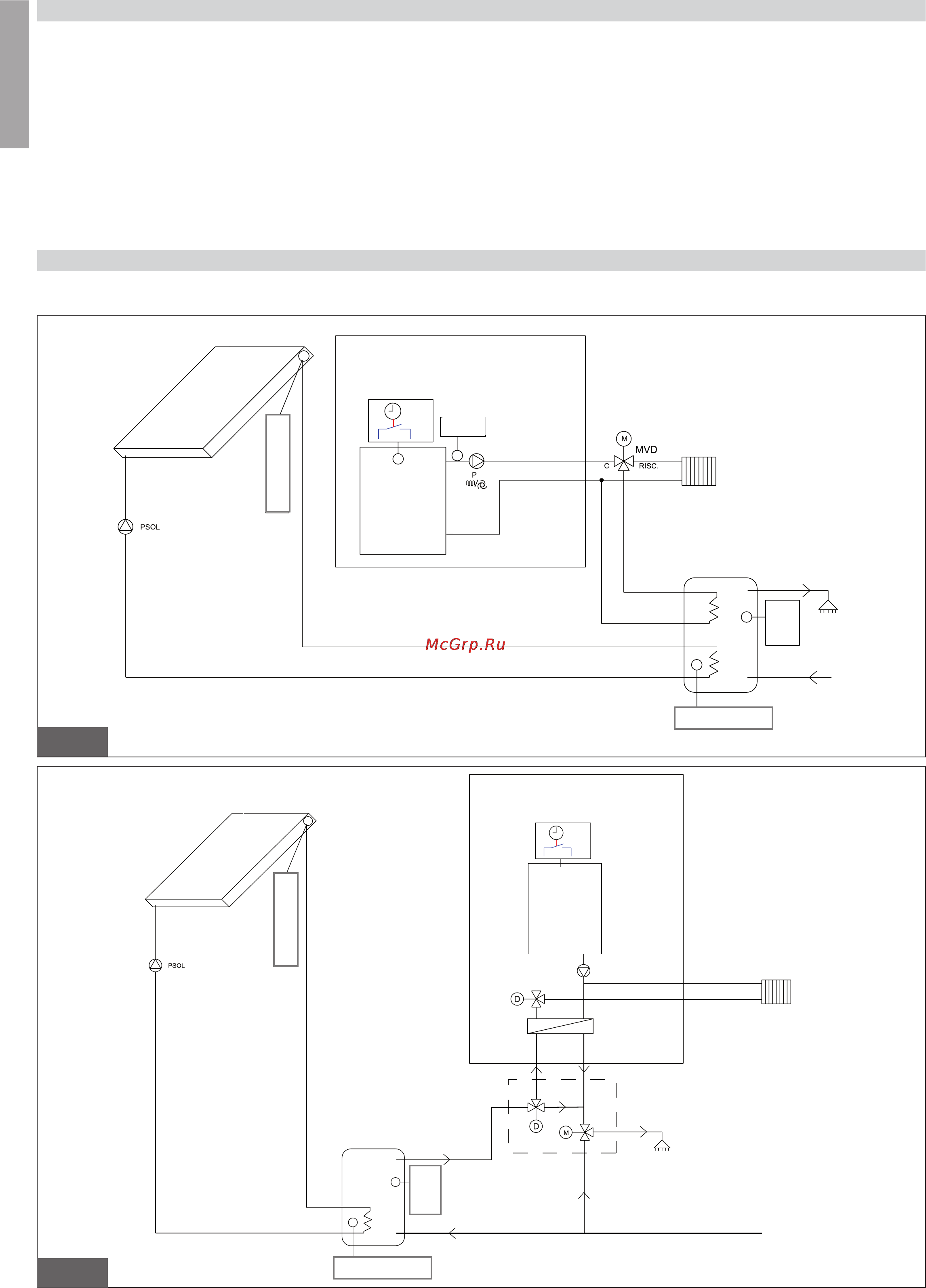

6. SAMPLE LAYOUTS
fig. 5
fig. 6
The examples given below are purely indicative.
Forced circulation
solar panel
Forced circula-
tion solar panel
probe on the collector side
max. length 100 m
probe on the collector side
max. length 100 m
Flow probe
Water
heater probe
(boiler)
HEAT
EXCHANGER
EXTERNAL BOILER
Burner
Burner
HEATING
HEATING
hot water
hot water
cold water
cold water
WATER HEATER
Water hea-
ter probe
(boiler)
WATER HEATER
EXTERNAL BOILER
water heater probe
water heater probe
Water heater
probe (boiler)
