4-1
Chapter 4
Blade Module Features

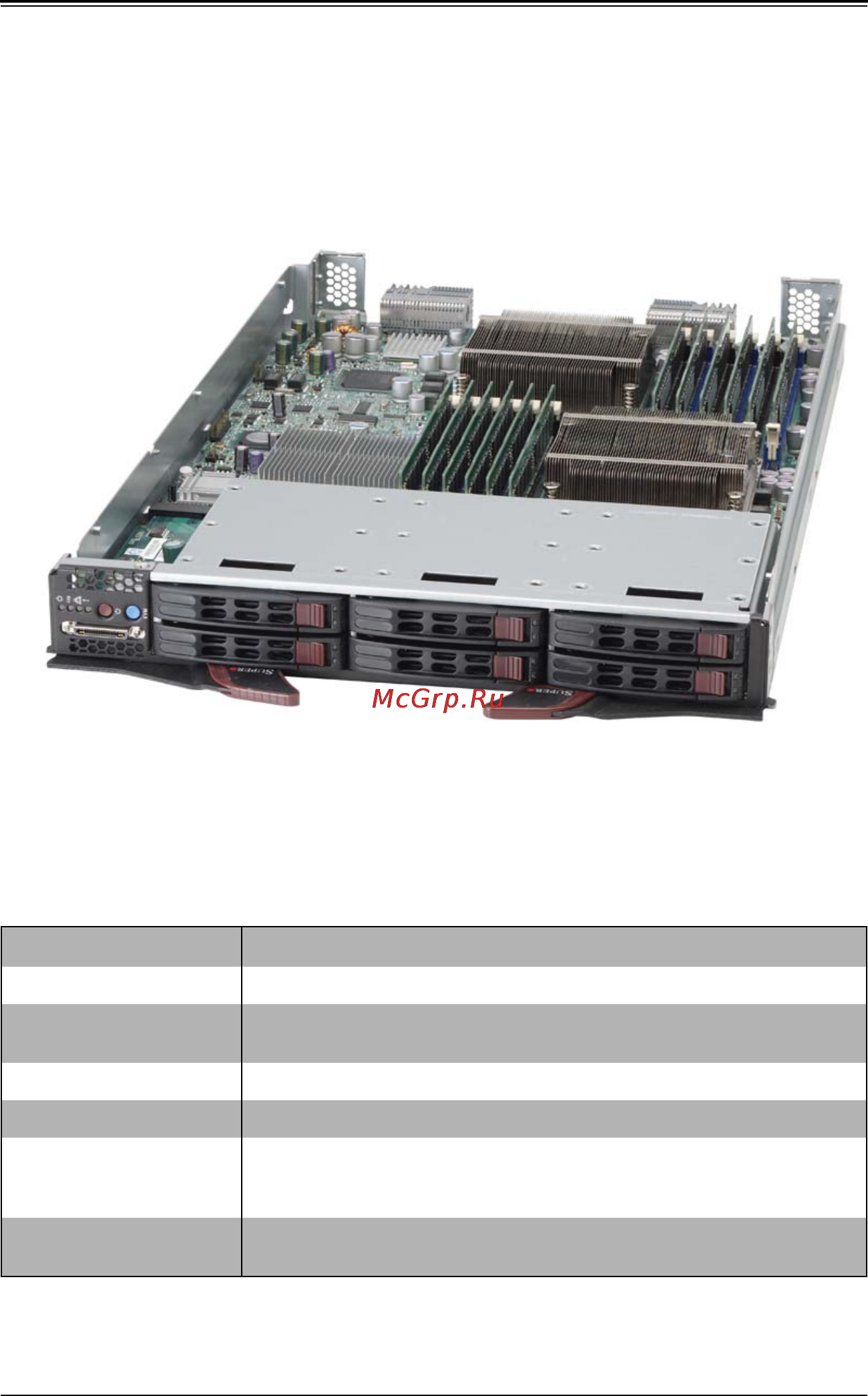

Figure 4-1. SBI-7126T-S6 Blade Module Front View
This chapter describes the SBI-7126T-S6 blade module. Installation and maintenance
should be performed by experienced technicians only.
See Figure 4-1 for a front view of the blade unit and Table 4-1 for its features.
Table 4-1. SBI-7126T-S6 Blade Module Features
Feature Description
Processors Supports single or dual 1366-pin Intel Xeon 5500/5600 series processors
Memory
Supports up to 192GB/48GB of ECC Registered/Unbuffered ECC
DDR3-1333/1066/800 SDRAM in twelve DIMM slots
Storage Six 2.5" hot-plug SAS2/SATA hard disk drives
Ports KVM port (1)
Features
Onboard Hermon graphics chip, IPMI 2.0, ATA/100, Plug and Play, APM
1.2, DMI 2.3, PCI 2.2, ACPI 1.0/2.0, SMBIOS 2.3, Real Time Clock, Watch
Dog,
Power Consumption
Base Power Draw (~35W) / Power per CPU (60W/80W/95W) / Power per
DIMM (typically 14.5W)
