Chapter 5: Chassis Setup and Maintenance

5-7 Installing the Air Shroud

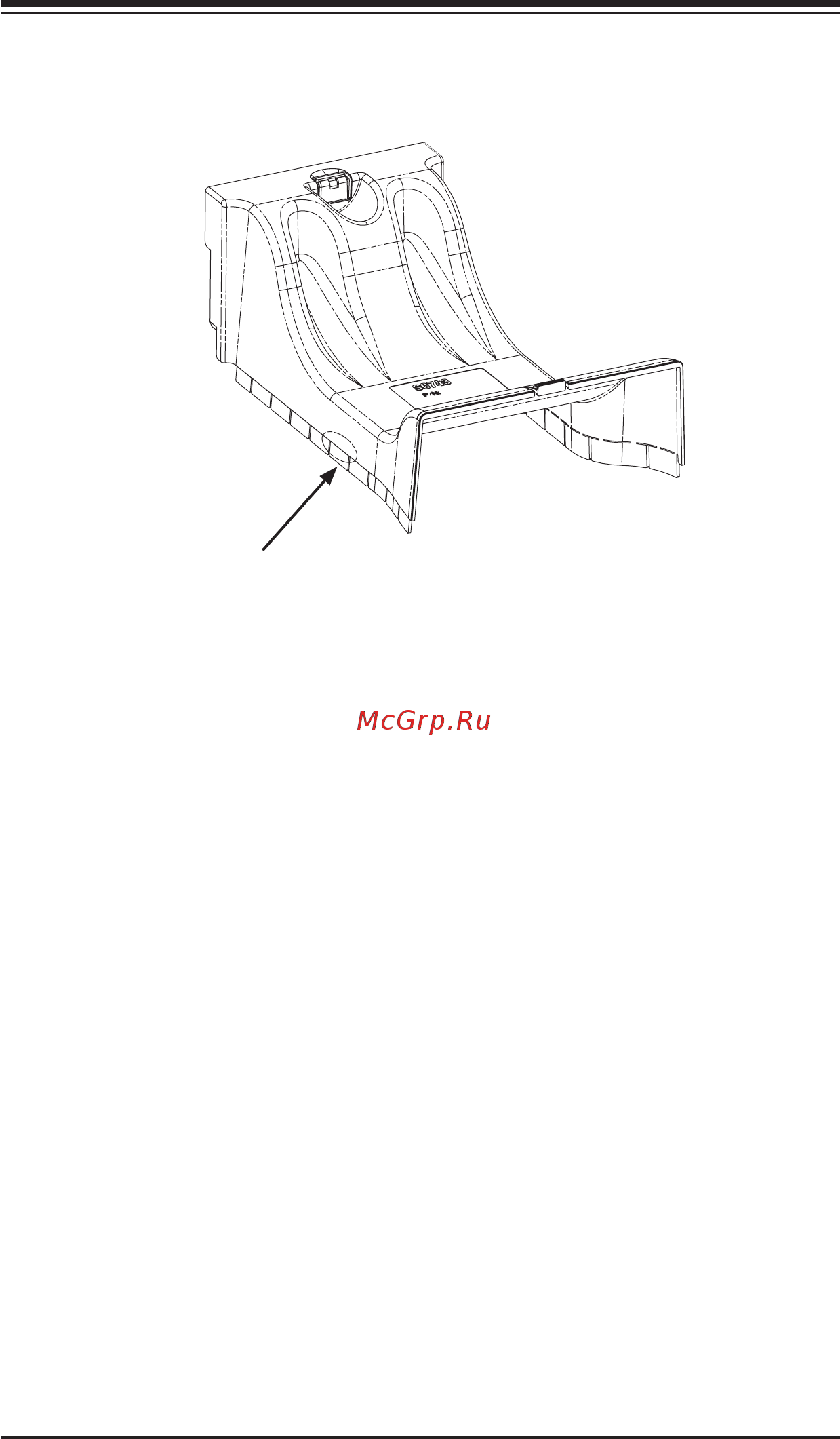

Figure 5-21: Air Shroud

Air shrouds concentrate airow to maximize fan efciency. The SC745 chassis air

shroud does not require screws to set up.

NOTE: The air shroud includes tabs that can be removed if motherboard compo-

nents prevent the air shroud from tting securely. Remove tabs only if necessary.

Installing the Air Shroud

1. Power down the system and remove the power cords from the rear of the

power supplies. Open the chassis cover as described in Section 5-3.

2. Place air shroud in your chassis with the fan side touching the edge of the

two fans closest to the power supply. The other side should cover both the

rear fans.

3. Replace the chassis cover.

Removable Tabs
