Chapter 2: Server Installation
2-5

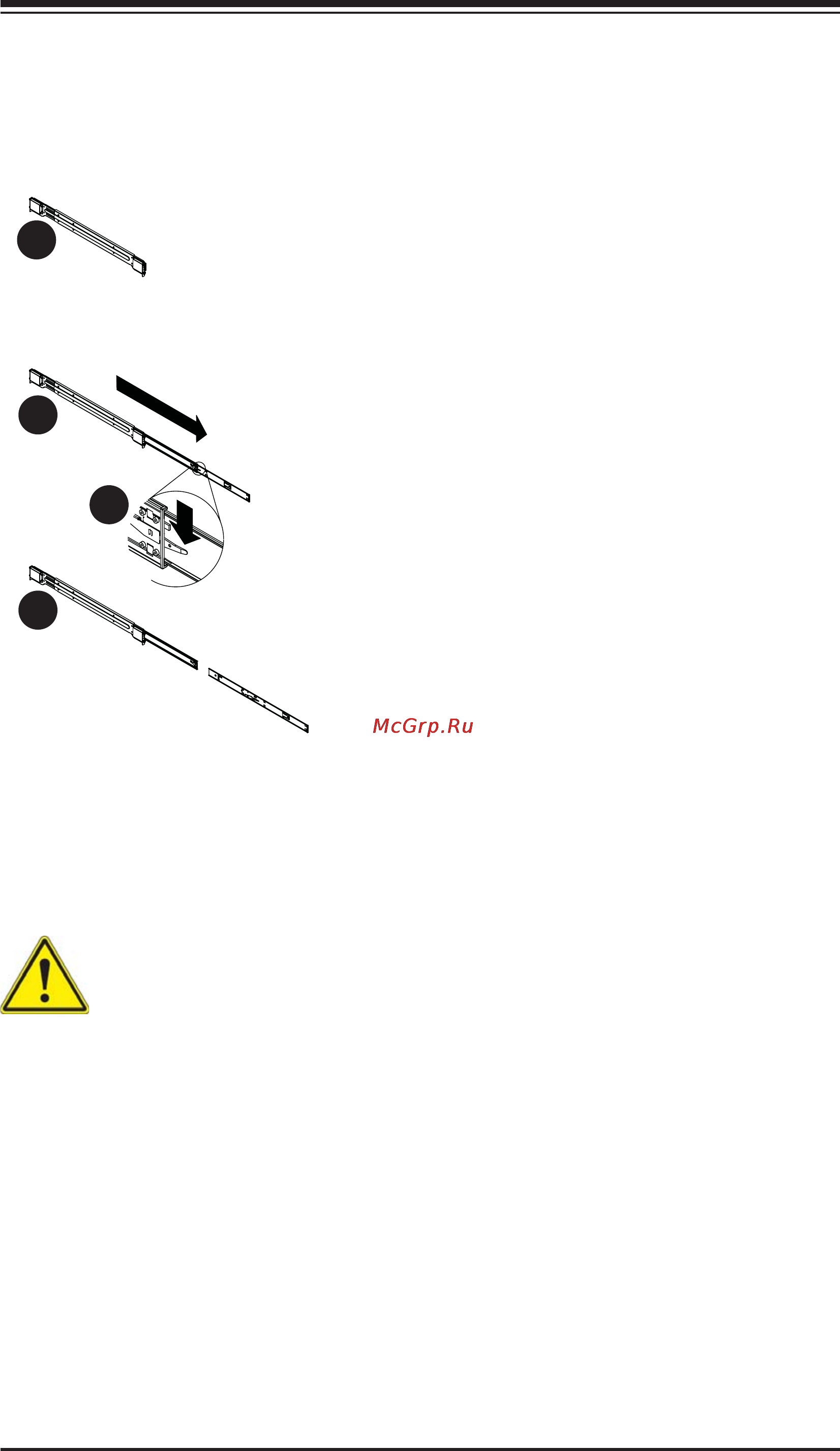

Figure 2-1: Separating the Rack Rails
1
1
1
2
1
4
1
3
Separating the Inner and Outer Rails
1. Locate the rail assembly in the chassis
packaging.
2. Extend the rail assembly by pulling it
outward.
3. Press the quick-release tab.
4. Separate the inner rail extension from
the outer rail assembly.
Rail Assembly
Extending the Rails
Quick-
Release Tab
Separating
the Inner Rail
Extension
Warning: do not pick up the server with the front handles. They are de-
signed to pull the system from a rack only.
