Operation Manual

d Digital display: on default it displays output voltage level;

“H” is displayed after shutoﬀ due to high voltage;

“L” is displayed after shutoﬀ due to low voltage;

“С” is displayed on overheating protection operation.

In the Pause mode the countdown time to switch on the Automatic

voltage regulator is displayed.

e I/O: selection button is displayed the input or output voltage on the

digital display

f Wall mounting holes

g Output socket

h Delay: delay selection button (6 or 180 s): while pressing the delay time

will be 180 s, when not pressed – 6 seconds

i RESET/OFF: bimetallic circuit-breaker

j Power cord

5. APPLICATION

Automatic voltage regulator (AVR) is designed for providing various

equipment with high-quality stable electric power supply in conditions of

signiﬁcant and continuous deviations of mains voltage and protecting

your equipment against high-voltage and pulsed interference.

6. MOUNTING

Important! Before mountint the regulator, make sure that all ﬁxing

elements durable fastened to the wall!

• For securely wall mounting it is necessary to determine the type of wall material (wood, brick,

concrete, drywall, and etc.) for corresponding fastener selection.

• Mounting stabilizer location should be close to the wall outlet, considering the stabilizer power

cord length (1.25 m).

• Next, make a mounting fasteners (not included) to the wall, considering the wall mounting holes

location f on the stabilizer rear panel (see Fig. 2).

• Then hang the stabilizer on ﬁxing elements.

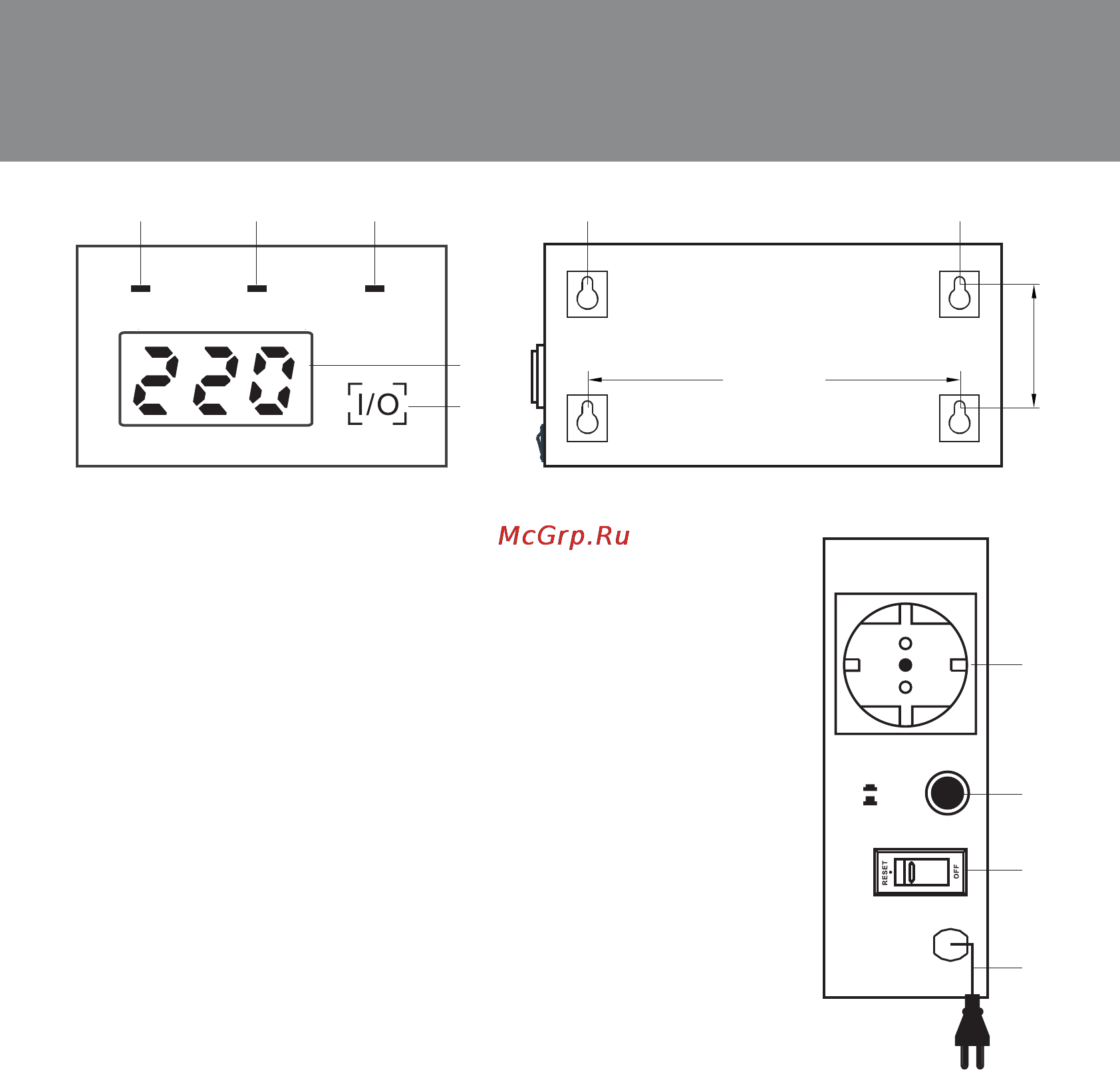

Fig. 2. Rear panel

Fig. 3. Side panel

СЕТЬ СТАБИЛИЗАЦИЯ ЗАЩИТА

Fig. 1. Control panel

ab c

f f

Вкл.

Пауза

Выкл.

240 mm

125 mm

AVR SLIM LCD
