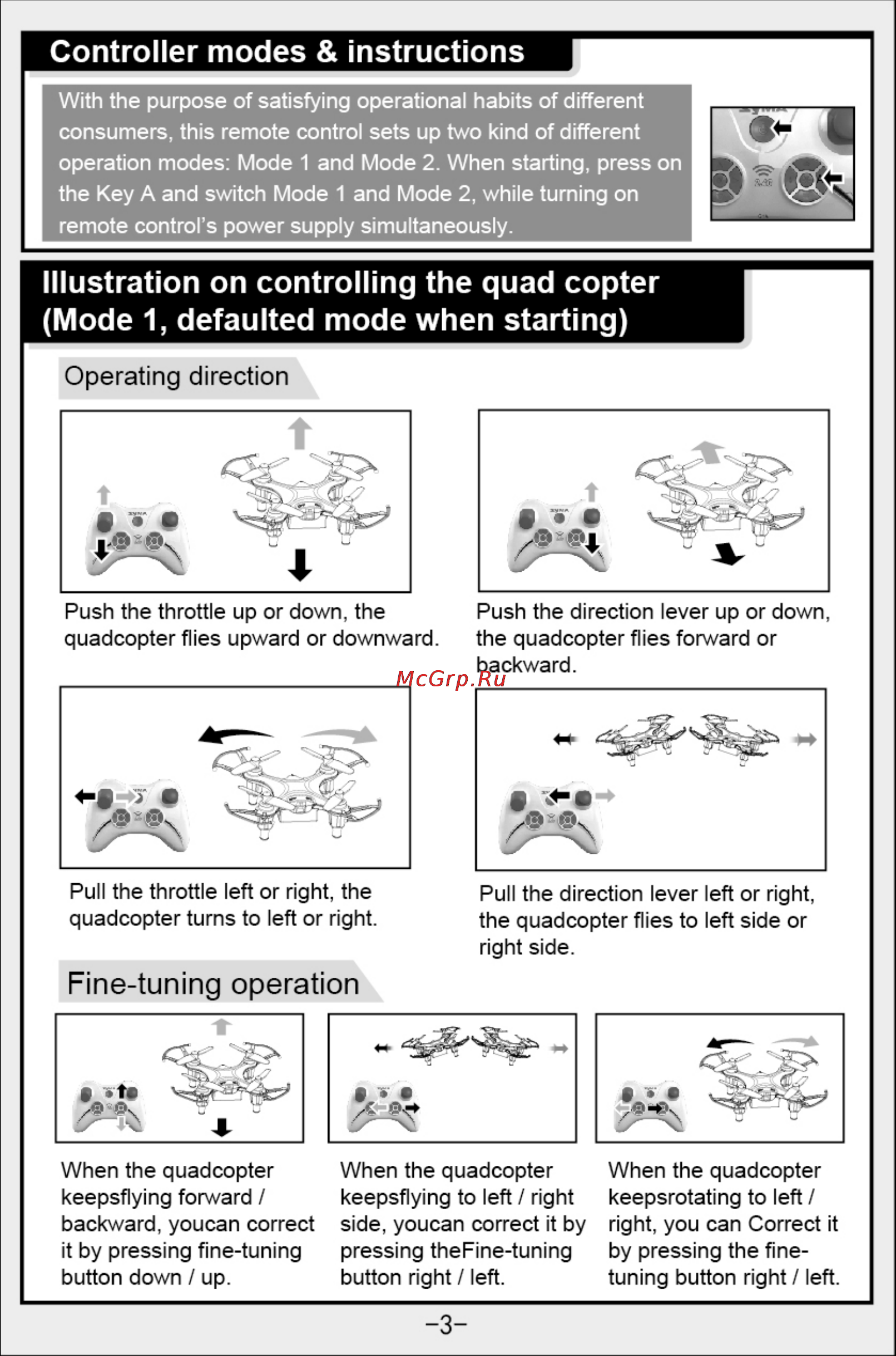

Controller modes instructions With the purpose of satisfying operational habits of different consumers this remote control sets up two kind of different operation modes Mode 1 and Mode 2 When starting press on the Key A and switch Mode 1 and Mode 2 while turning on remote control s power supply simultaneously Illustration on controlling the quad copter Mode 1 defaulted mode when starting Operating direction Push the throttle up or down the quadcopter flies upward or downward Push the direction lever up or down the quadcopter flies forward or backward Pull the throttle left or right the quadcopter turns to left or right Pull the direction lever left or right the quadcopter flies to left side or right side Fine tuning operation When the quadcopter keepsflying forward backward youcan correct it by pressing fine tuning button down up When the quadcopter keepsflying to left right side youcan correct it by pressing theFine tuning button right left When the quadcopter keepsrotating to left I right you can Correct it by pressing the finetuning button right left
