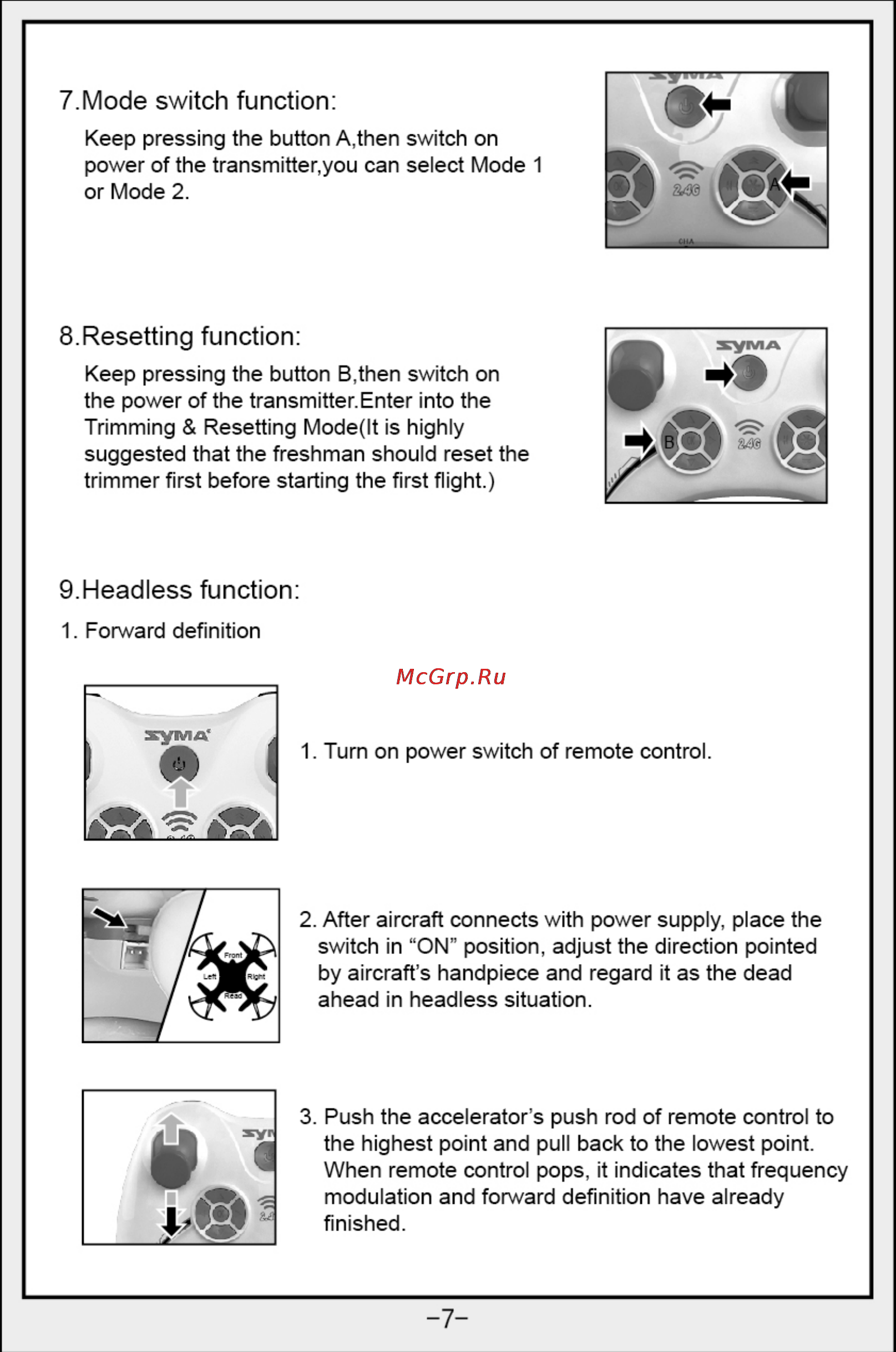

7 Mode switch function Keep pressing the button A then switch on power of the transmitter you can select Mode 1 or Mode 2 8 Resetting function Keep pressing the button B then switch on the power of the transmitter Enter into the Trimming Resetting Mode lt is highly suggested that the freshman should reset the trimmer first before starting the first flight 9 Headless function 1 Forward definition 1 Turn on power switch of remote control 2 After aircraft connects with power supply place the switch in ON position adjust the direction pointed by aircraft s handpiece and regard it as the dead ahead in headless situation 3 Push the accelerator s push rod of remote control to the highest point and pull back to the lowest point When remote control pops it indicates that frequency modulation and forward definition have already finished 7
