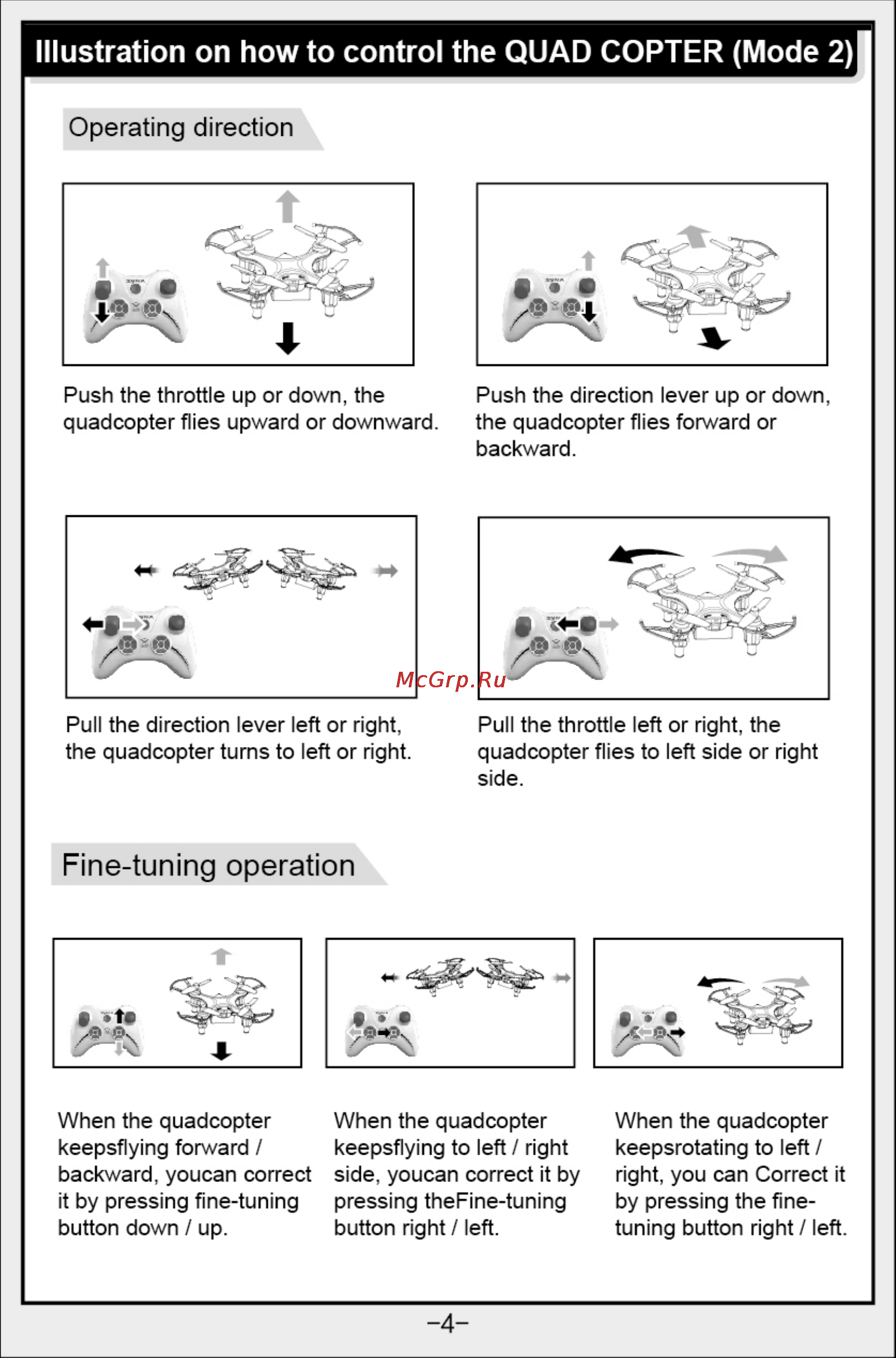

Illustration on how to control the QUAD COPTER Mode 2 Operating direction Push the throttle up or down the quadcopter flies upward or downward Push the direction lever up or down the quadcopter flies forward or backward Pull the direction lever left or right the quadcopter turns to left or right Pull the throttle left or right the quadcopter flies to left side or right side Fine tuning operation When the quadcopter keepsflying forward backward youcan correct it by pressing fine tuning button down up When the quadcopter keepsflying to left I right side youcan correct it by pressing theFine tuning button right left When the quadcopter keepsrotating to left right you can Correct it by pressing the finetuning button right left
