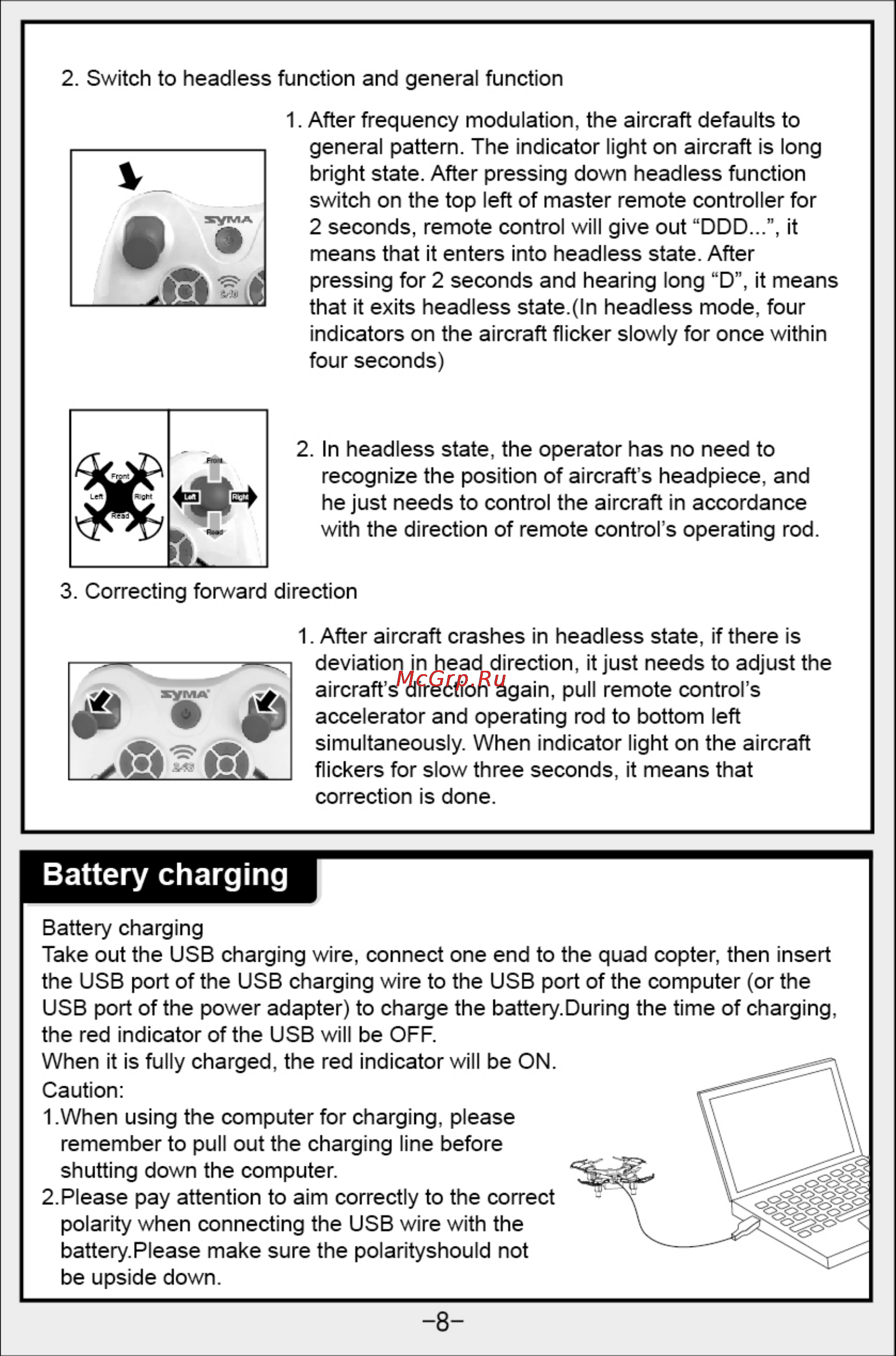

2 Switch to headless function and general function 1 After frequency modulation the aircraft defaults to general pattern The indicator light on aircraft is long bright state After pressing down headless function switch on the top left of master remote controller for 2 seconds remote control will give out DDD it means that it enters into headless state After pressing for 2 seconds and hearing long D it means that it exits headless state In headless mode four indicators on the aircraft flicker slowly for once within four seconds 2 In headless state the operator has no need to recognize the position of aircraft s headpiece and he just needs to control the aircraft in accordance with the direction of remote control s operating rod 3 Correcting forward direction 1 After aircraft crashes in headless state if there is deviation in head direction it just needs to adjust the aircraft s direction again pull remote control s accelerator and operating rod to bottom left simultaneously When indicator light on the aircraft flickers for slow three seconds it means that correction is done Battery charging Battery charging Take out the USB charging wire connect one end to the quad copter then insert the USB port of the USB charging wire to the USB port of the computer or the USB port of the power adapter to charge the battery During the time of charging the red indicator of the USB will be OFF When it is fully charged the red indicator will be ON Caution 1 When using the computer for charging please remember to pull out the charging line before shutting down the computer 2 Please pay attention to aim correctly to the correct polarity when connecting the USB wire with the battery Please make sure the polarityshould not be upside down 8
