TL-WA701ND 150Mbps Wireless N Access Point User Guide

1) Access Point: This mode allows wireless stations to access this device.

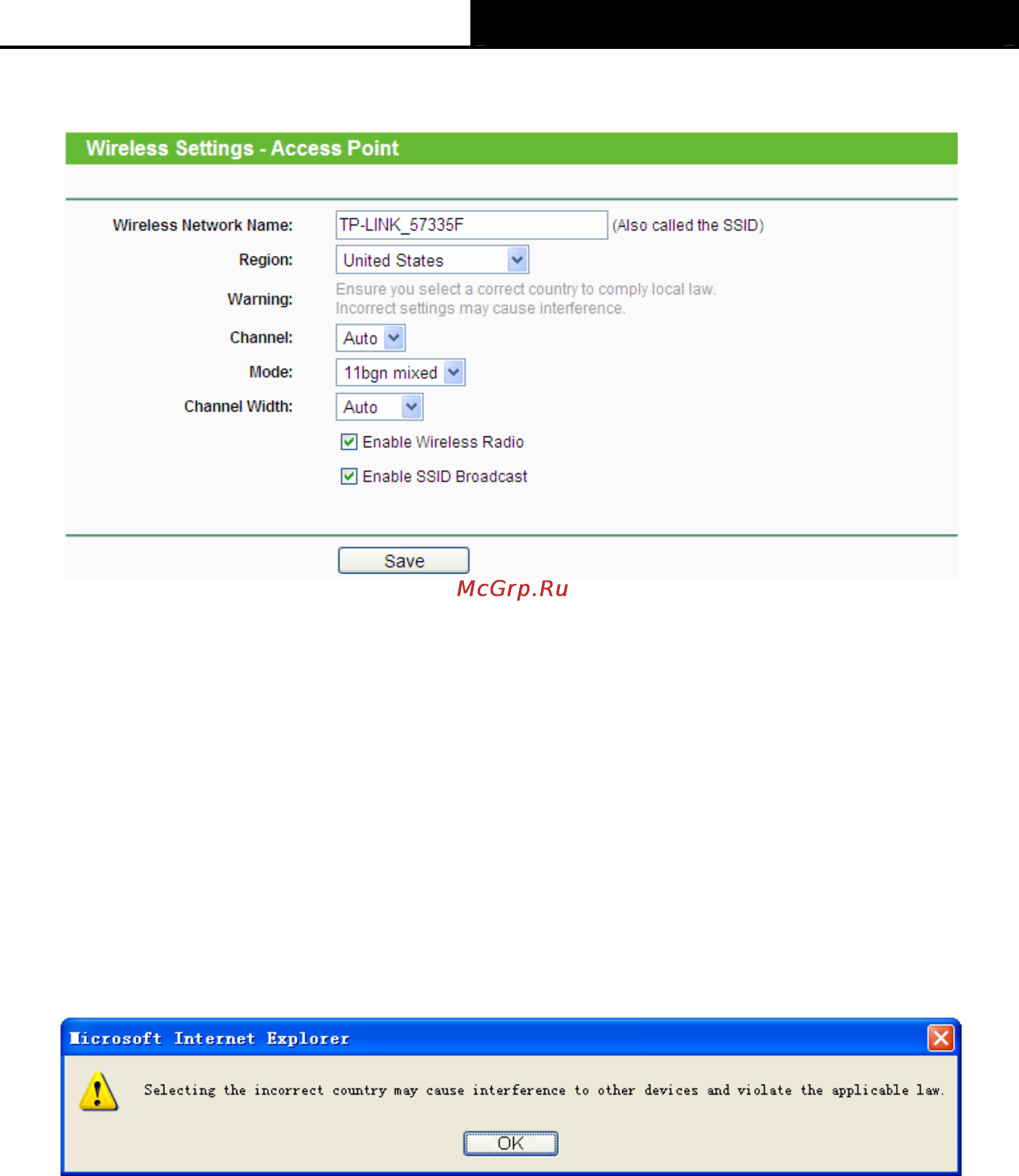

Figure 4-10 Wireless Settings in Access Point mode

¾ SSID (Set Service Identifier) - Identifies your wireless network name. Create a name up to 32

characters and make sure all wireless points in the wireless network with the same SSID. The

default SSID is TP-LINK_XXXXXX (XXXXXX indicates the last unique six characters of each

device’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as

test.

¾ Region - Select your region from the pull-down list. This field specifies the region where the

wireless function of the device can be used. It may be illegal to use the wireless function of

the device in a region other than one of those specified in this field. If your country or region

is not listed, please contact your local government agency for assistance.

When you select your local region from the pull-down list, click the Save button, then the

Note Dialog appears. Click OK.

Note Dialog

)

Note:

Limited by local law regulations, version for North America does not have region selection

option.

¾ Channel - Determines the operating frequency to be used. It is not necessary to change the

wireless channel unless you notice interference problems with another nearby access point.

¾ Mode - Select the desired wireless mode. The options are:

• 11b only - Only 802.11b wireless stations can connect to the device.

• 11g only - Only 802.11g wireless stations can connect to the device.

• 11n only - Only 802.11n wireless stations can connect to the device.

• 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device.
