Tp-Link tl-sg105e [11/43] Switch discovery
![Tp-Link tl-sg105e [11/43] Switch discovery](/views2/1190845/page11/bgb.png)
Easy Smart Configuration Utility
User Guide
8
2.3 Switch Discovery
When the utility is launched, it immediately searches the network for TP-LINK Easy Smart
Switches.
The discovered switches are listed as below.

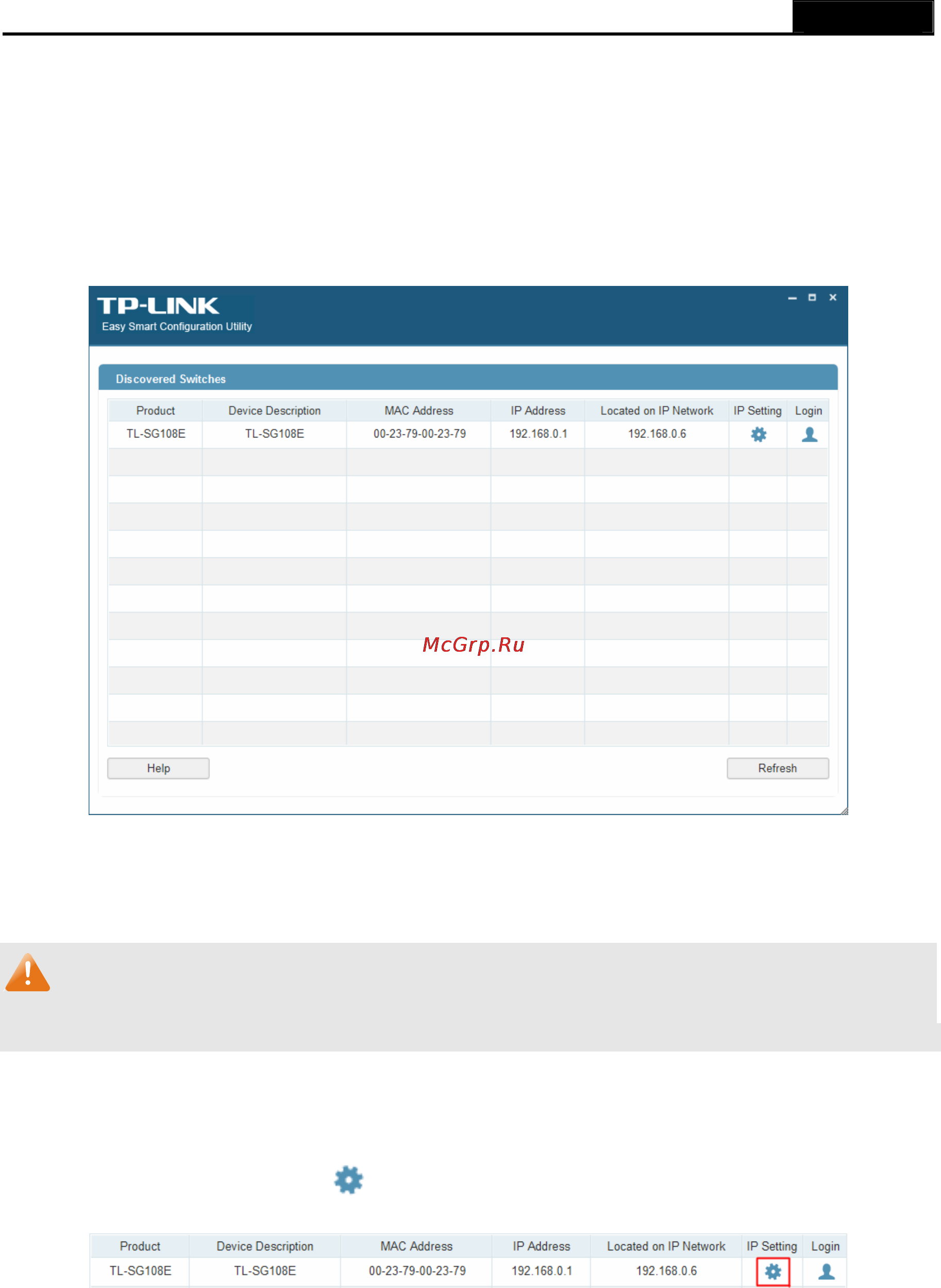

Figure 2-7 Main Page
Click Help in the left bottom to access the TP-LINK support website for more help.
Note:
The maximum number of the discovered switches is 30.
2.4 Switch Settings
You can select a switch and click to configure or display its status.
Figure 2-8 Discovered Switch
