Easy Smart Configuration Utility

User Guide

3.2 IP Setting

Each device in the network possesses a unique IP address. You can login the IP Setting page to

operate the switch using this IP address. The switch supports the DHCP mode to obtain an IP

address from the DHCP server.

On this page you can get and modify the network parameters of the switch.

Choose the menu System→IP Setting to load the following page.

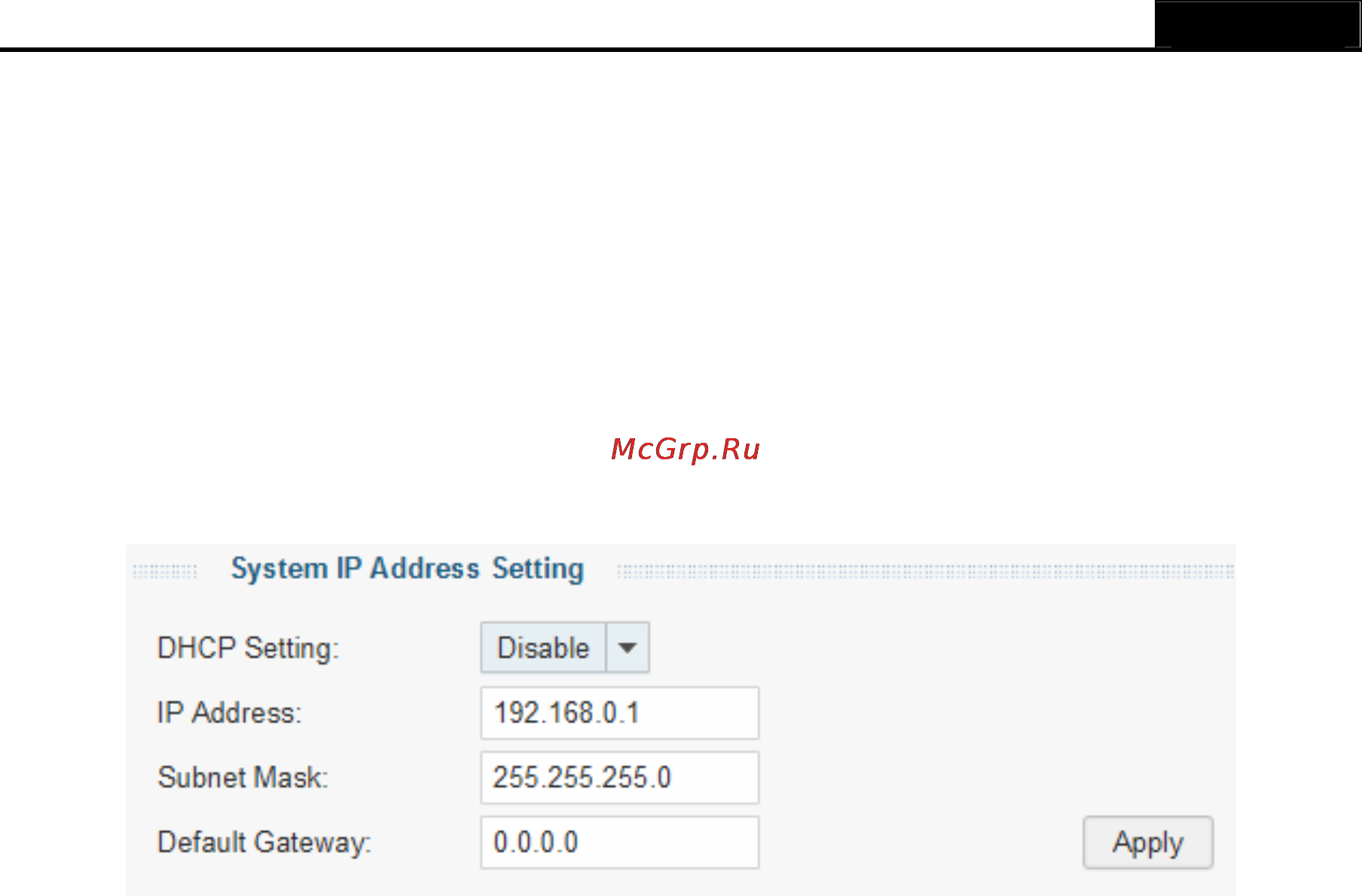

Figure 3-2 System IP Address Setting

The following entries are displayed on this screen:

¾ System IP Address Setting

DHCP Setting:

Enable or disable the DHCP function. If DHCP setting is enabled, the

switch will obtain the IP address, subnet Mask and default gateway

from the DHCP Server automatically; otherwise, these three items

should be configured manually. By default, it is disabled.

IP Address:

Enter the system IP of the switch. The default system IP is

192.168.0.1 and you can change it appropriate to your needs.

Subnet Mask:

Enter the subnet mask of the switch. By default, the switch uses

255.255.255.0 as the subnet mask.

Default Gateway:

Enter the default gateway of the switch.

3.3 User Account

On this page you can modify the administrator’s username and password in order to refuse illegal

users.

Choose the menu System→User Account to load the following page.
