Easy Smart Configuration Utility

User Guide

Chapter 4 Switching

Switching module is used to configure the basic functions of the switch, including three submenus:

Port Setting, IGMP Snooping and Port Trunk.

4.1 Port Setting

On this page, you can configure the basic parameters for the ports. When the port is disabled, the

packets on the port will be discarded. Disabling the port which is vacant for a long time can reduce

the power consumption effectively. And you can enable the port when it is in need.

The parameters will affect the working mode of the port, please set the parameters appropriate to

your needs.

Choose the menu Switching→Port Setting to load the following page.

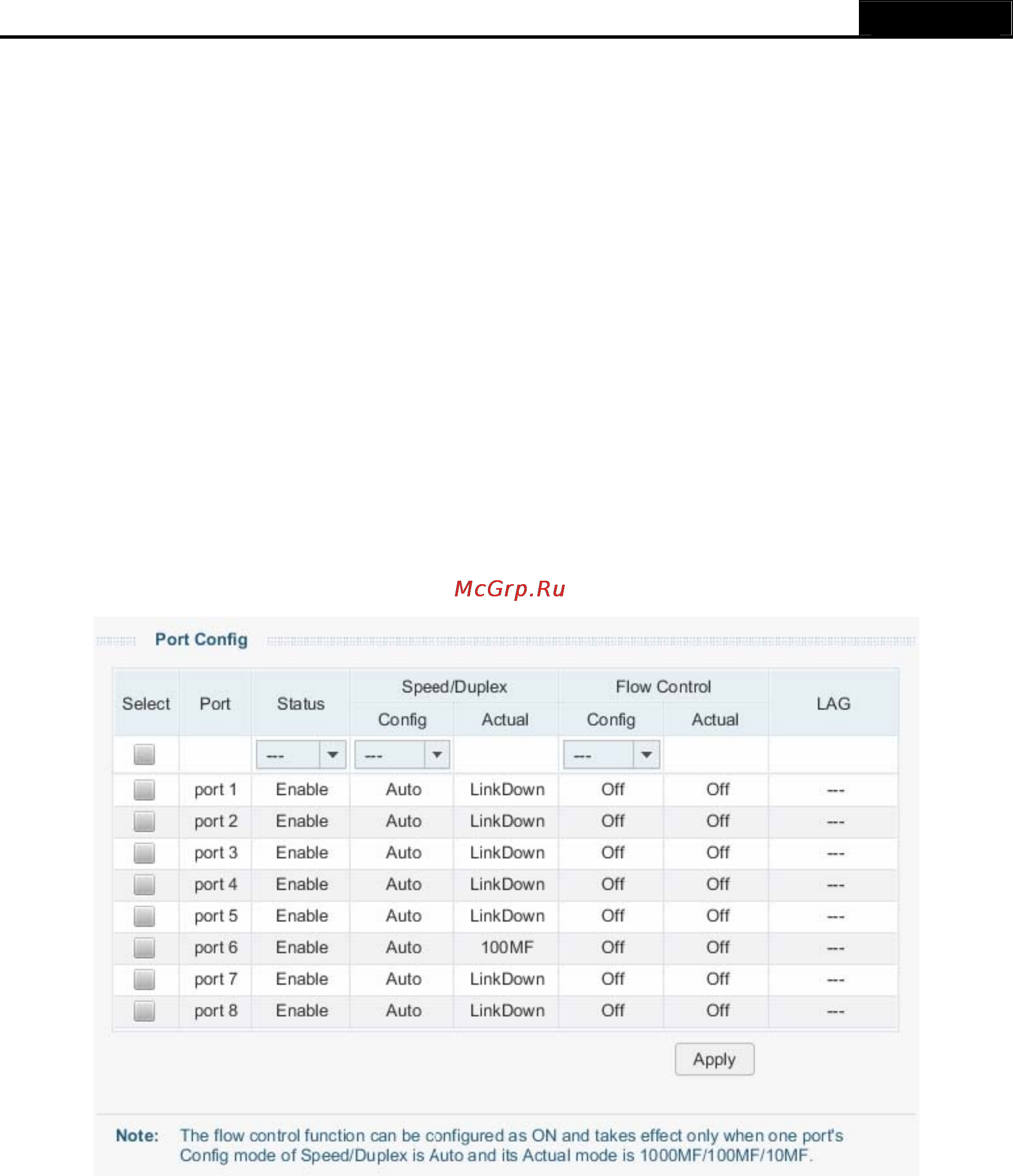

Figure 4-1 Port Config

The following entries are displayed on this screen:

¾ Port Config

Select:

Select the desired port for configuration. It is multi-optional.

Port:

Displays the port number.

Status:

Allows you to Enable/Disable the port. When Enable is

selected, the port can forward the packets normally.
