Easy Smart Configuration Utility

User Guide

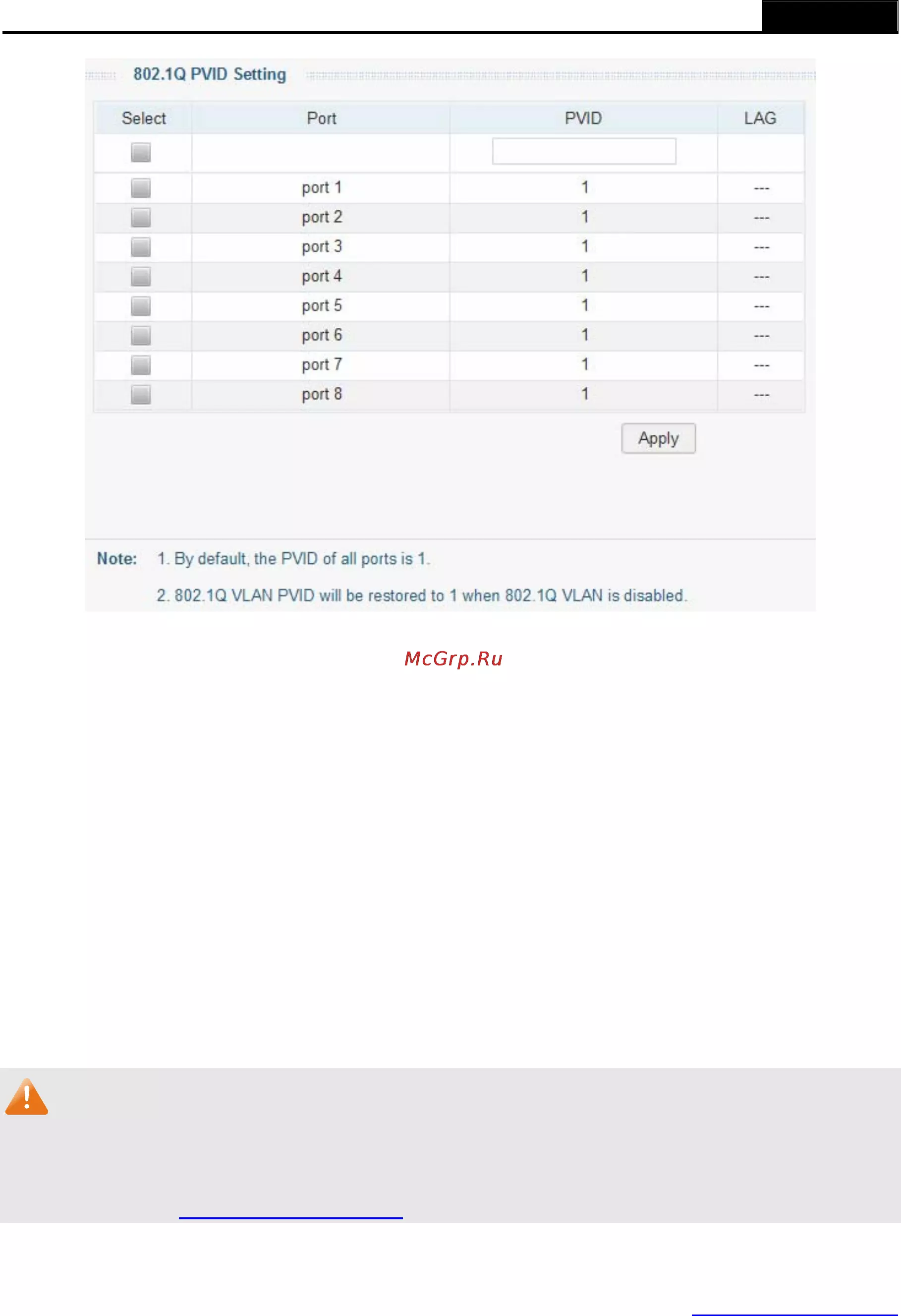

Figure 6-6 802.1Q VLAN PVID Setting

The following entries are displayed on this screen:

¾ 802.1Q VLAN PVID Setting

Select:

Select the desired port for configuration. It is multi-optional.

Port:

Displays the port number.

PVID:

Enter a PVID number for the port. When adding the tag header to

the received untagged packet, the switch will automatically uses

this PVID value as the VLAN ID of the added tag.

LAG:

Displays the LAG to which the port belongs.

Note:

1. 802.1Q VLAN should be enabled before setting PVID.

2. You can go to Switching→Port Trunk page to configure the LAG status of the port.
