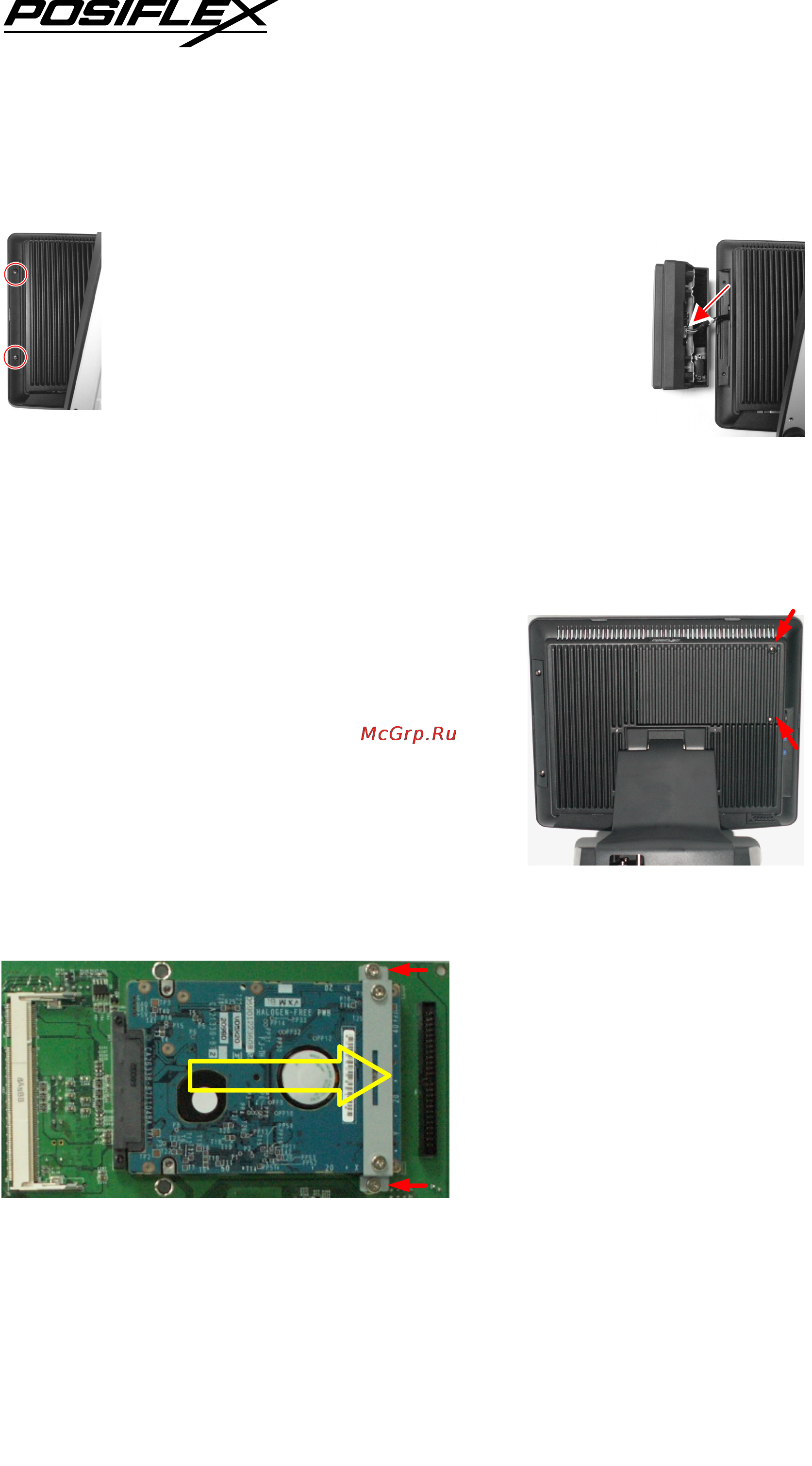

KS-6812 series Technical Manual 7 - 3
SIDE MOUNT UPGRADE KIT
Remove the 2 screws circled in the left picture
to remove the cover for side mount upgrade kit. Take
out the cable inside this cover and connect it to the
white connector inside the side mount upgrade kit like
SD-680 as arrowed in the right picture. Gently arrange
the excessive length of this cable back in the hole and
screw-fit it back to the position originally occupied by the cover.
Please reserve the cover if there is chance to have the side mount kit removed in the
future.
OPEN THE HDD COVER
Remove the 2 screws on back of main unit as
arrowed in the picture at right to remove the HDD
cover.
Replacing HDD or installing the option CF
card reader adaptor or change the CF card or upgrade
DDR2 SODIMM memory takes place inside the area
under HDD cover.
REPLACE HDD IN MAIN UNIT
The picture at left is the close
up view of the content inside the
HDD cover.
Remove the 2 red arrowed
screws to release the HDD bracket
and slide the HDD in direction
indicated by the hollow yellow
arrow to take out the HDD and
remove the 2 remaining screws on HDD bracket to separate the HDD.
