5
MEASUREMENT PROCEDURES
Blood pressure can be affected by the position of the cuff and your physiologic
condition. It is very important that you keep your wrist at heart level.

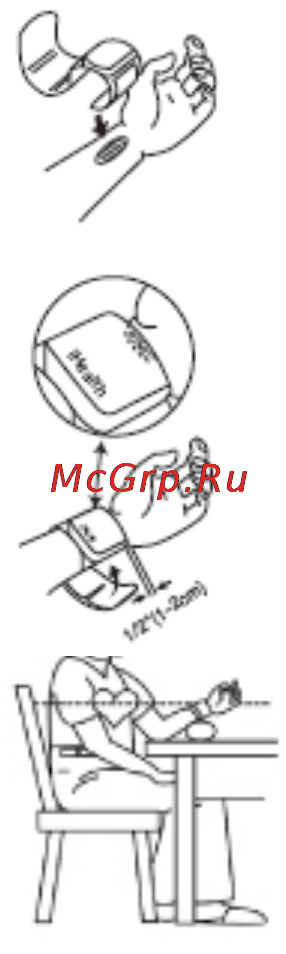

1. Be seated comfortably with your feet flat on the floo
r
without
crossing your legs. Stay still during measurement. Do not move your
wrist, body , o
r
the monitor.
2. Place you
r
hand palm-side up in front of you and wrap the c uff
around a bare wrist 1-2cm above the wrist joint. If the monitor is
correctly placed, iHealth logo will be f acing upright.
3. The middle of the c uff should be at the level of the right atrium of
your heart.
4. It is advised to place the monito
r
’s travel case unde
r
your arm fo
r
support and to keep your arm at optimal height fo
r
measurement.
5. Adjust the height of your wrist, the App will detect you
r
wrist
position and the measurement will start ONLY when the correct
position is detected. Follow t he on-screen instructions to begin
measurement.
Remember to:
1. Make sure that the appropriate cuff size is used; refe
r
to the cuff
circumference range in “SPECIFICATIONS”.
2. Measure on the same wrist each time.
3. Stay still and calm for one to one and half minutes before taking a blood pressure
measurement. Prolonged over-inflation of the bladder may cause ecchymoma of your
arm.
4. Keep the cuff c lean. Cleaning the cuff after every 200 times of usage is
recommended. If the cuff becomes dirty, clean it with a moistened cloth. Do not rinse
the monitor or cuff with running water.
Press the "START/STOP" button to stop measurement. Press the "START/STOP"
button for 2 seconds to turn off the monitor manually.
Auto Connect Option
Auto connect option allows the monitor to find the last used iOS device and
reestablish the connection with your iOS device automatically. Auto connect
option can be enabled in the App. (Device Setting->Auto Connect->On).
Taking Measurements with Multiple iOS Devices
Turn off the Bluetooth on the last used iOS device if the Auto Connect option is
enabled in your App, then follow the set up instructions in the Quick Start
Guide.
Measuring without an iOS Device
Enable the O ffline Measurement function on the App. (Device Setting->Offline
Measurement->On) Apply the cuff, follow the measurement instructions, and
