Yealink TA410 [15/17] Network settings

TA Series Installation Guide

15/17

4.2 Logging in the Web Configuration Panel

Start the browser on PC. In the address bar, enter the IP address, click “Enter” button

and then you can see Web Configuration Panel login page. Enter the Admin User

Name and Password to log in.

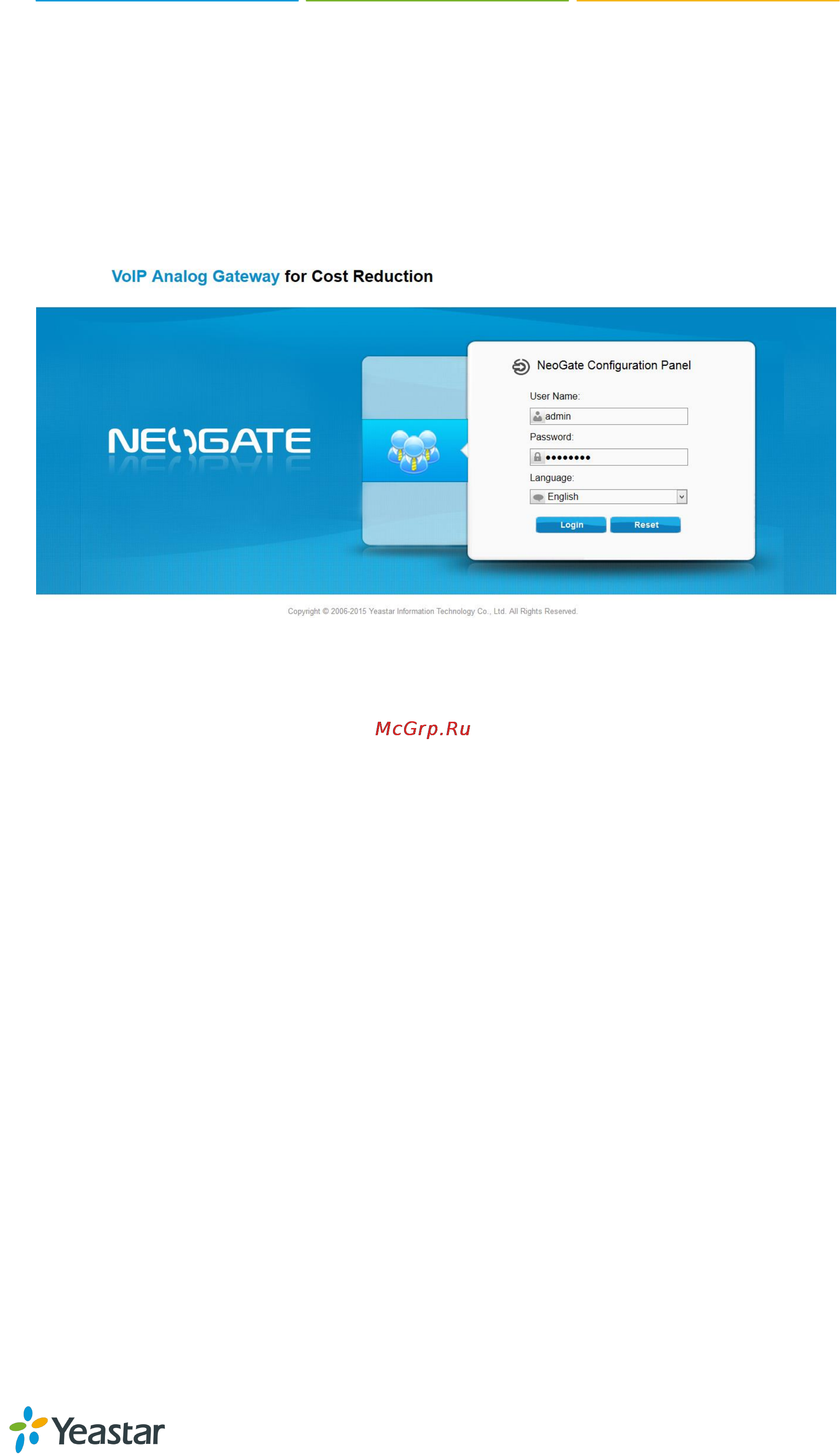

Figure 4-2 TA Web Configuration Panel Login Page

Via the configuration interface, the admin can make all the system configurations,

including network settings (LAN, WAN, Firewall, VPN, DDNS, VLAN, etc.); system

parameters configuration (time zone, password, etc.); internal settings (Web access

port, etc.); FXS ports list; FXO ports list; Hunting Groups; Hotline; call logs (search,

download); firmware update and reset, etc.

Note: after saving the changes, remember to click the “Apply changes” button to

make the changes take effect.

4.3 Network Settings

After logging in the admin configuration interface, generally the first step is to

configure the IP address. If the LAN ports are connected to the network, their IP

addresses need to be configured. If not, just configuring the IP address of the LAN

port which is connected to the local area network of the company is OK.

 LAN Settings

Click “Network Preferences”→ “LAN Settings” on the left menu bar of the web

configuration interface. LAN port is used for the interoperability of IP terminals

and . If the LAN port is connected to the company’s LAN, please configure the

correct IP address and corresponding subnet mask.
