Installation
4 309454D
Installation
Key:
A Fluid shut-off valve
BHose
C Hose reel fluid inlet hose
D Hose reel
E Accu-Shot electronic grease meter
F 2 in. swivel

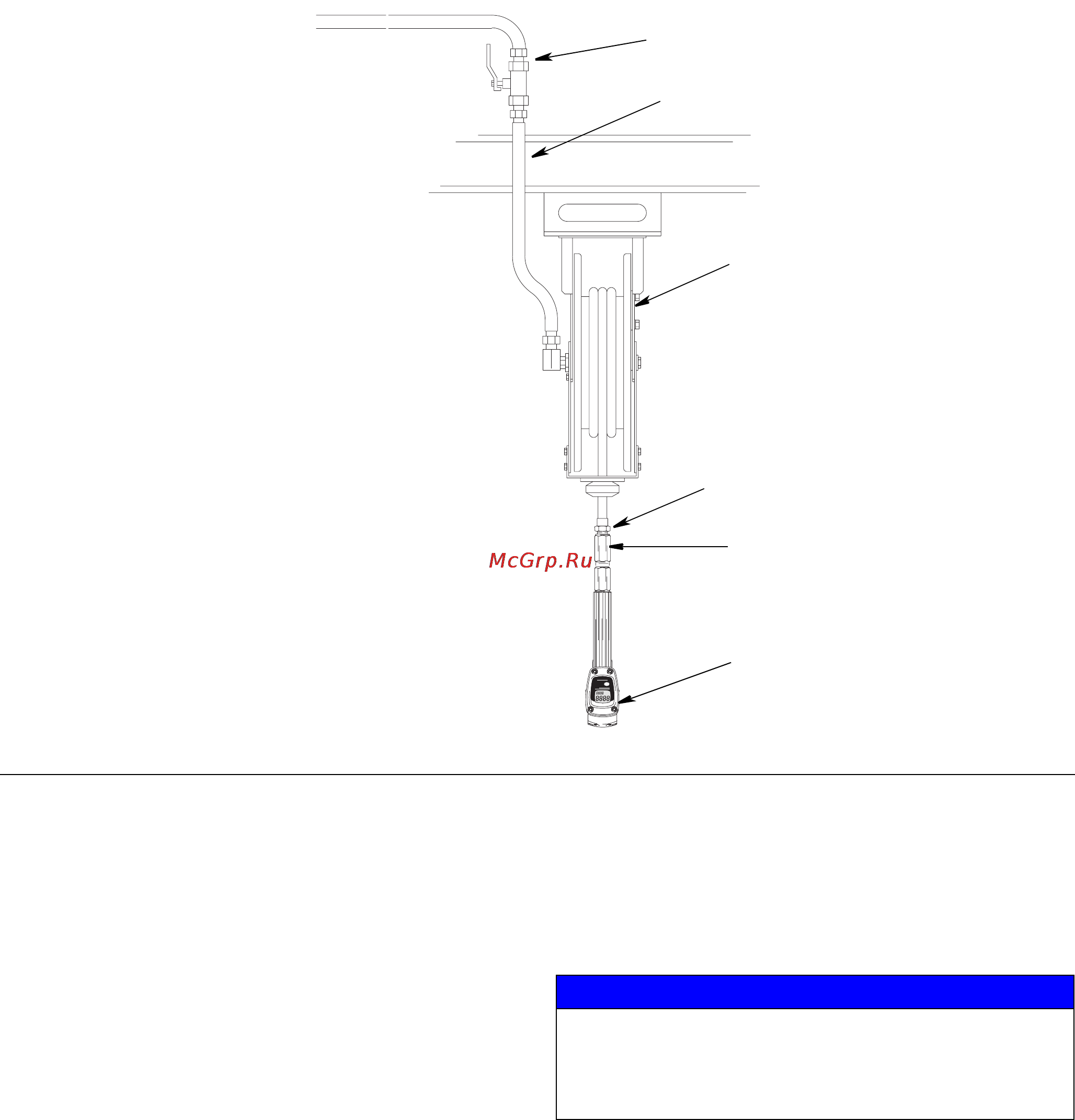

The installation shown in FIG. 1 is only a guide. The
components shown are typical; however, it is not a com-
plete system design. Contact your Graco distributor for
assistance in designing a system to suit your particular
needs.
FIG. 1: Typical Installation
A
C
D
B
F
E
NOTICE
This dispense valve is not designed for in-line instal-
lation. Do not install with a shut-off valve on the outlet
side of the meter. Such installation could result in
damage to the meter housing cover.
