Installation

6 309454D

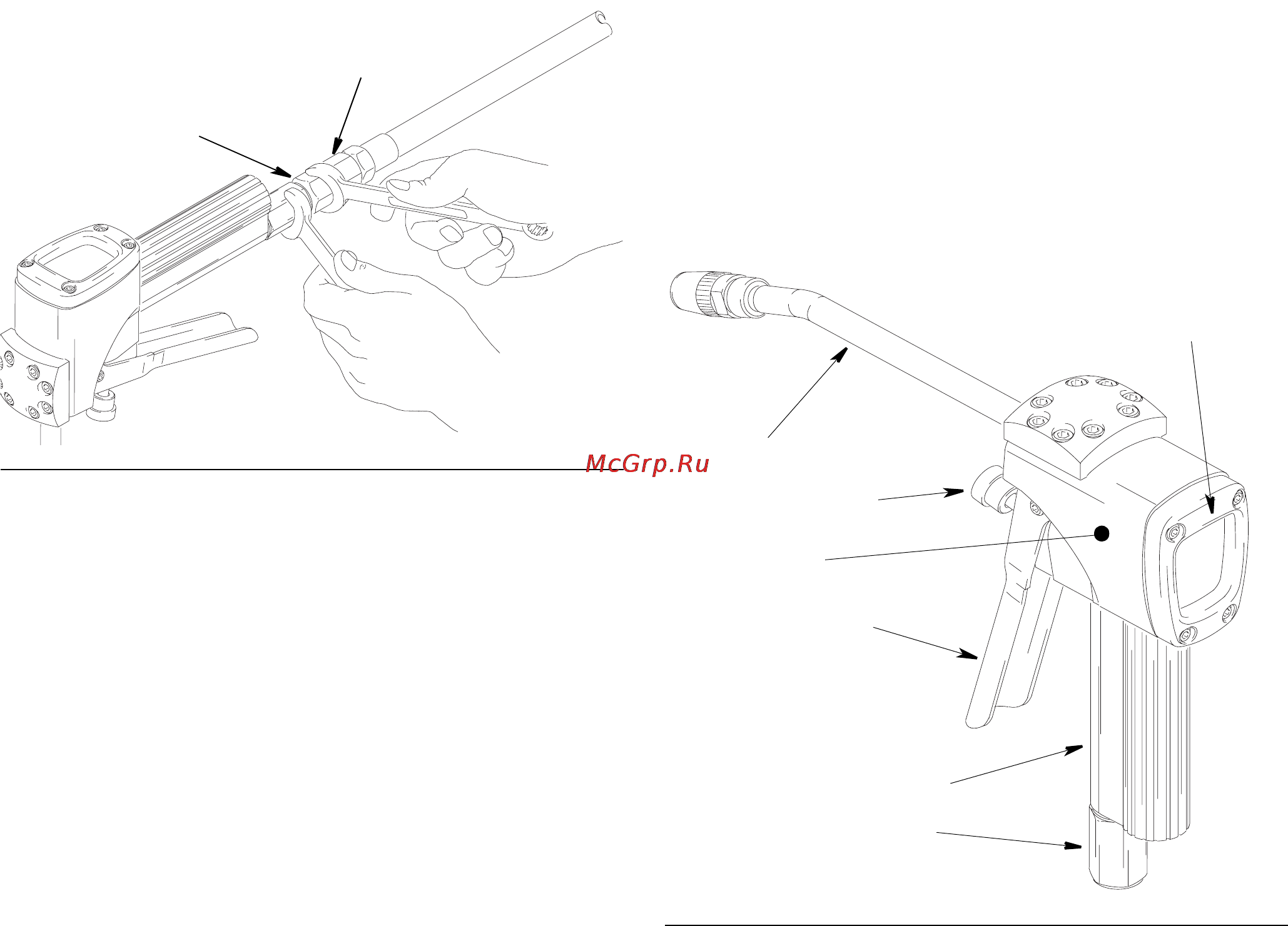

7. Apply thread sealant to the male threads of the hose

fitting (f), thread the hose fitting into the fitting (2) of

the Accu-Shot, and tighten firmly. (F

IG. 2)

NOTE: Let the sealant cure to the manufacturer’s rec-

ommendations before the system is pressurized with

grease.

8. Open all dispense position shut-off valves, and start

the pump to pressurize the system. See Operation

section for proper operation of meter (page 7).

9. To ensure dispensing accuracy, purge all air from

the fluid lines and the dispense valve before using.

Grease Dispenser Components

Refer to FIG. 3 for the following.

Key:

J Accu-Shot grease extension tube

K Measurement and recording of grease delivered by

internal oval gear metering chamber and control

electronics

L The delivery control valve is activated by a steel lever

provided with a safety lock. It is designed to control the

flow of grease at high pressure.

M The valve grip contains the electronic power supply

battery housing.

N Display

P Hose connection fitting

R Dispensing lever control knob

FIG. 2

FIG. 3
