Maintenance
309454D 9
Adjusting the Operating Lever
Refer to FIG. 7 for the following instructions.
The Accu-Shot valve operating lever (36) can be
adjusted using the adjustment set screw (41) and check
nut (40). The Accu-Shot is shipped with the lever
already locked and set and therefore does not normally
require adjustment. It may need adjusting after being
used for some time or when the valve is removed.
1. Relieve pressure, see Pressure Relief Procedure,
page 5.
2. Loosen the check nut (40).
3. Tighten or loosen the set screw (41) until the
required position is reached.
4. Fully lock the check nut (40) keeping the set screw
(41) in position.
NOTE: When the adjustment set screw is loosened, the
operating lever rest position (valve closed) moves away
from the grip. Once the adjustment has been performed
the position of the lever with respect to the grip must be
as illustrated in the overall Dimensions. See page 13.
Cleaning the Valve
Refer to FIG. 8 for following instructions unless otherwise
indicated.
1. Relieve pressure, see Pressure Relief Procedure,
page 5.
2. Loosen the nut (40) and remove it all together with
the set screw (41). (F
IG. 7)
3. Unscrew the battery cap (34) and remove the two
batteries (28). (F
IG. 5)
4. Unscrew the 4 fastening screws (23) and remove
the outlet housing (24), the plate (25), and the plate
gasket (26).
5. Remove the screws (21) along with the electronics
(17).
NOTE:
• Handle the card and all components very care-
fully.
• Before beginning Step 5, obtain a container to
hold the disassembled internal components of
the valve.
6. Unscrew and remove the valve plug (16).
7. Using a small screw driver, dislodge the valve pin
(11) by pressing through the hole where the nut and
set screw had been previously removed. Together
the pin (11), the valve seat (13), and the ball (12)
should come out of the valve. If the o-ring (10) and
the retaining ring (9) do not come out together with
the pin (11), remove both using a hooked tool, being
careful not to damage these parts. In order to
remove them, it may be necessary to work with the
hooked tool on the lever side.
8. Clean all the valve components, removing the resid-
ual grease using a clean cloth. Also re-clean the
valve seat. make sure all dirt is removed:
• from the valve plug (16)
• inside the valve seat hole (13)
• in the pin conical cavity (11)
• inside the valve

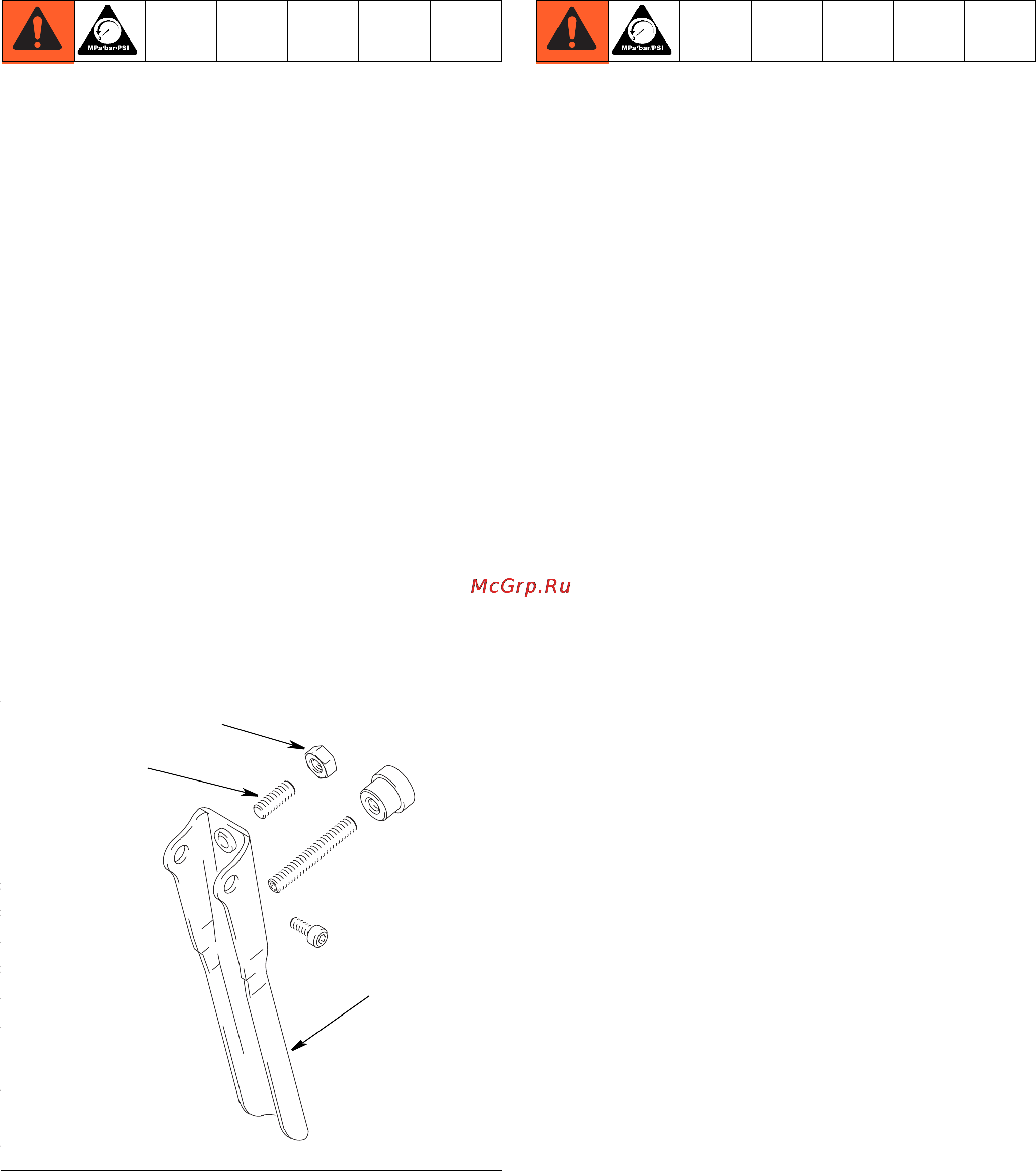

FIG. 7
