Graco Accu-Shot [7/14] Model 233807 shown

Operation

309454D 7

Operation

Before Dispensing Grease

The partial delivery meter (a) must read zero. If the

meter indicates a valve other than zero, press the

RESET button (b). (F

IG. 4)

NOTE: The partial delivery total cannot be zero-set dur-

ing the dispensing process.

Dispensing Grease

1. Pull the dispense lever.

2. Release the lever once the grease has been dis-

pensed.

NOTE:

• During delivery the partial delivery meter (a) will

indicate the amount of grease dispense since

the last time the RESET key (b) was pressed.

The cumulative total delivery meter (c) is also

updated during delivery. (F

IG. 4)

• Model 233933 displays grams and kilograms

(decimal point is not displayed, not pictured)

• Model 233807 displays ounces and pounds.

After Dispensing Grease

Tighten the dispense lever safety lock.

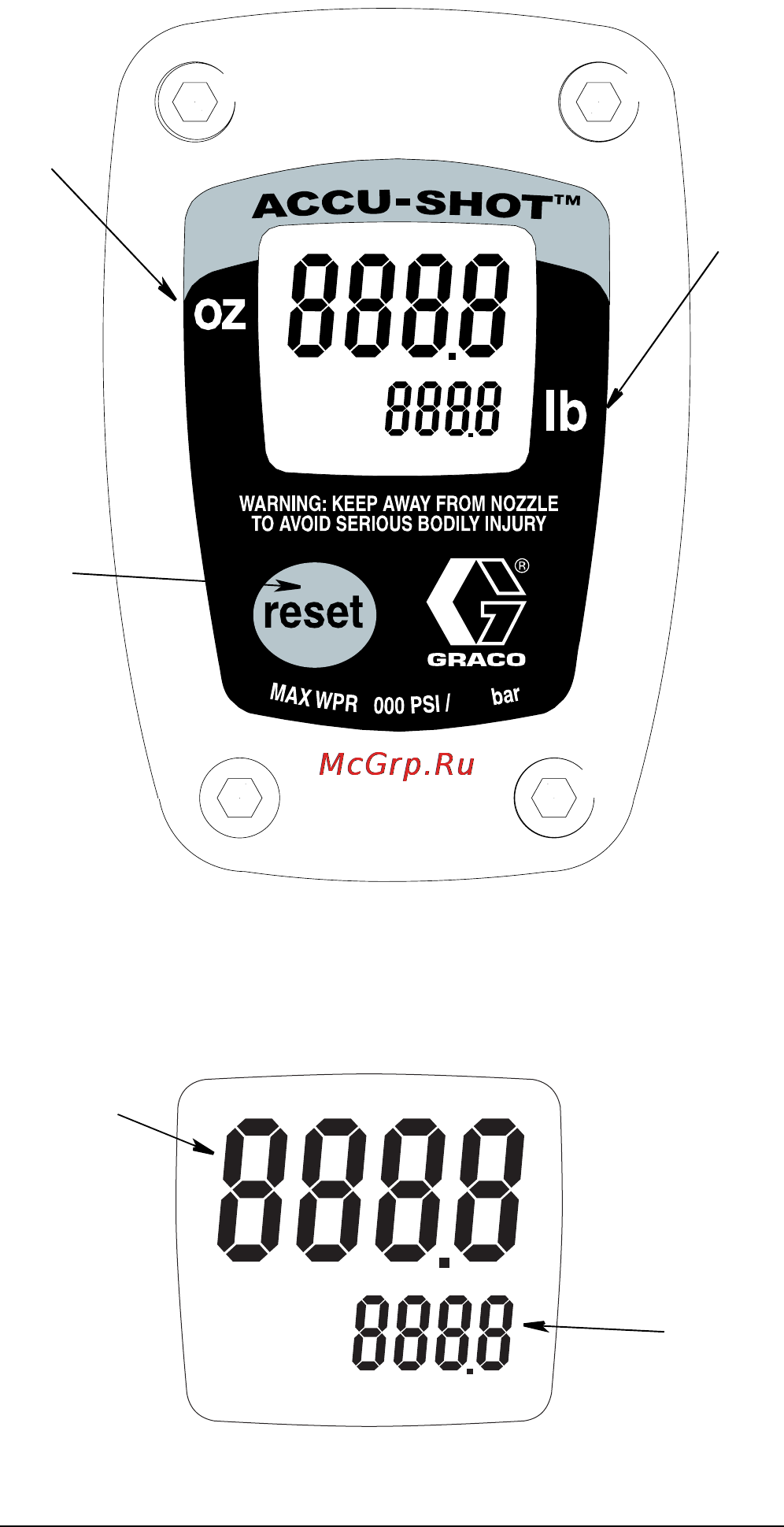

FIG. 4

345

Model 233807 Shown
