Installation

10 312865T

3. Slowly open the main fluid valve.

a. Place the hose end (with no dispense valve

connected) into a container for waste oil.

b. Secure the hose in the container so it will not

come out during flushing.

c. If you have multiple dispense positions, first

flush the dispense position farthest from the

pump and work your way toward the pump.

4. Slowly open the shut-off valve (B) at the dispense

position. Flush out a sufficient amount of oil to

ensure that the entire system is clean; then close

the valve.

5. Repeat Step 4 at all other positions.

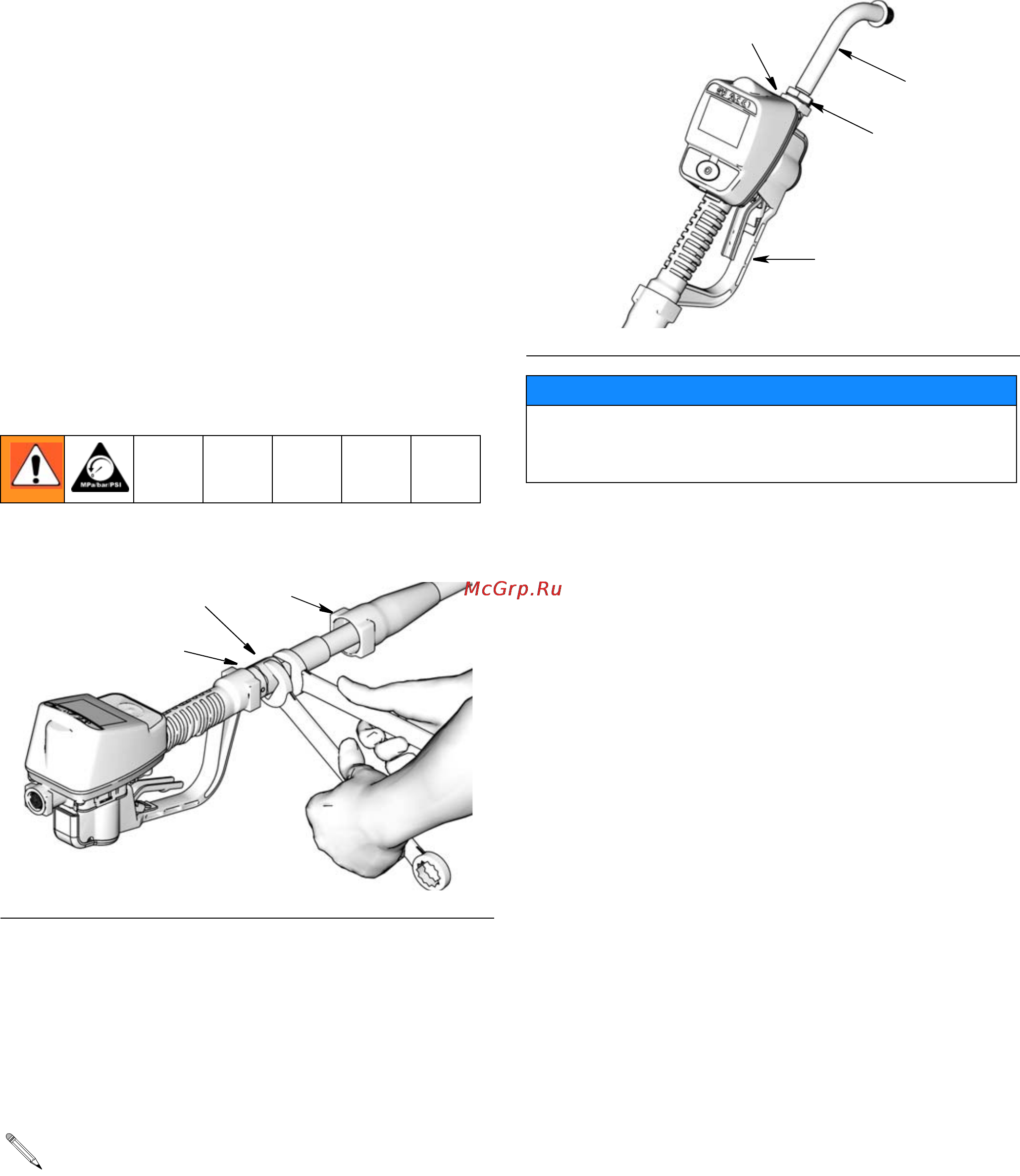

Installing Meter (FIG. 4

)

1. Relieve pressure, page 9.

2. Slide the swivel boot (32) back, over the hose, small

end first, to access the swivel fitting (a).

3. Apply thread sealant to the male threads of the hose

fitting. Thread the hose fitting into the meter swivel

(31). Use two wrenches to tighten securely (F

IG. 4).

Installing Tube Extension (FIG. 5)

a. Loosen nut (a) until it is completely off tube

threads.

b. Thread extension (20) into housing (b) until it

bottoms out.

c. Align extension (20) with meter housing and

handle (c).

d. Firmly tighten nut (a).

FIG. 4

Make sure you let the sealant cure to the manufac-

turer’s recommendations before circulating fluid

through the system.

ti10983a

FIG. 5

NOTICE

Do not use PTFE tape or thread sealant on threads of

extension tube (20). This could cause the fitting to

leak.

ti10615A
