Installation

8 312865T

Installation

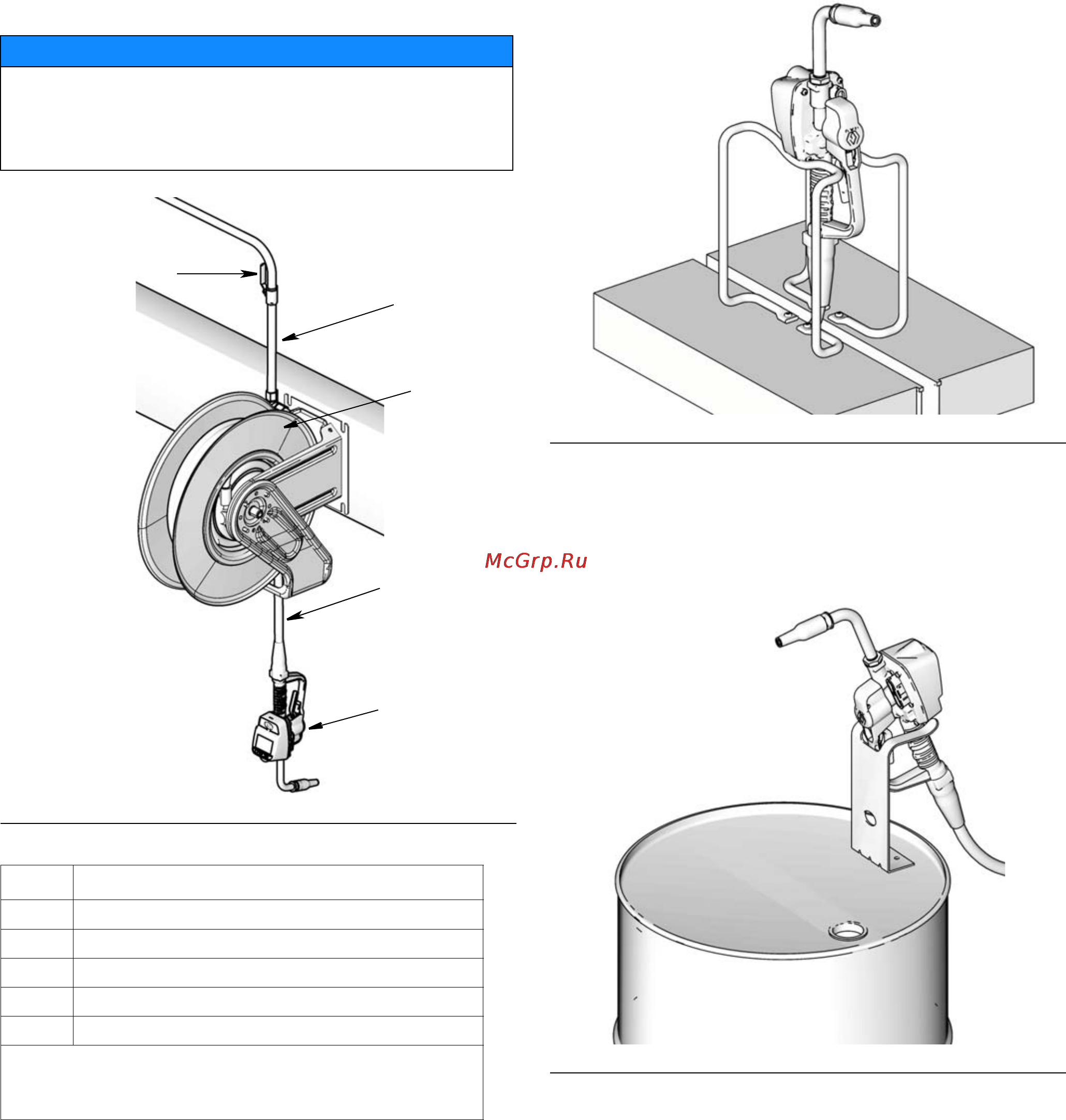

Typical Installations (FIG. 1)

The typical installation shown in FIG. 1 is only a guide. It

is not a complete system design. Contact your Graco

distributor for assistance in designing a system to suit

your needs.

Mounting Bracket (FIG. 2)

Mounting Bracket Kit 249440 is available for resting the

dispense valve on a console.

Drum Mount Bracket (FIG. 3)

Mounting Bracket 15B750 is available for resting the

dispense valve on a drum.

NOTICE

The dispense valve is not designed for in-line

installation. Do not install with a shutoff valve on the

outlet side of the meter. Such installation could result in

damage to the meter housing cover.

IG. 1

ITEM DESCRIPTION

A Electronic metered dispense valve

B Fluid shut-off valve

CHose

D Hose reel fluid inlet hose

E Hose reel

A Thermal Relief Kit (not shown) is required. The kit

required will vary by pump selected. See Parts, page 42 for

a list of available kits.

ti11010a

FIG. 2

IG. 3

ti11822

ti11823
