Service
312865T 33
Reassembly
Use all the new parts provided in the kit. Do not reuse
the old parts.

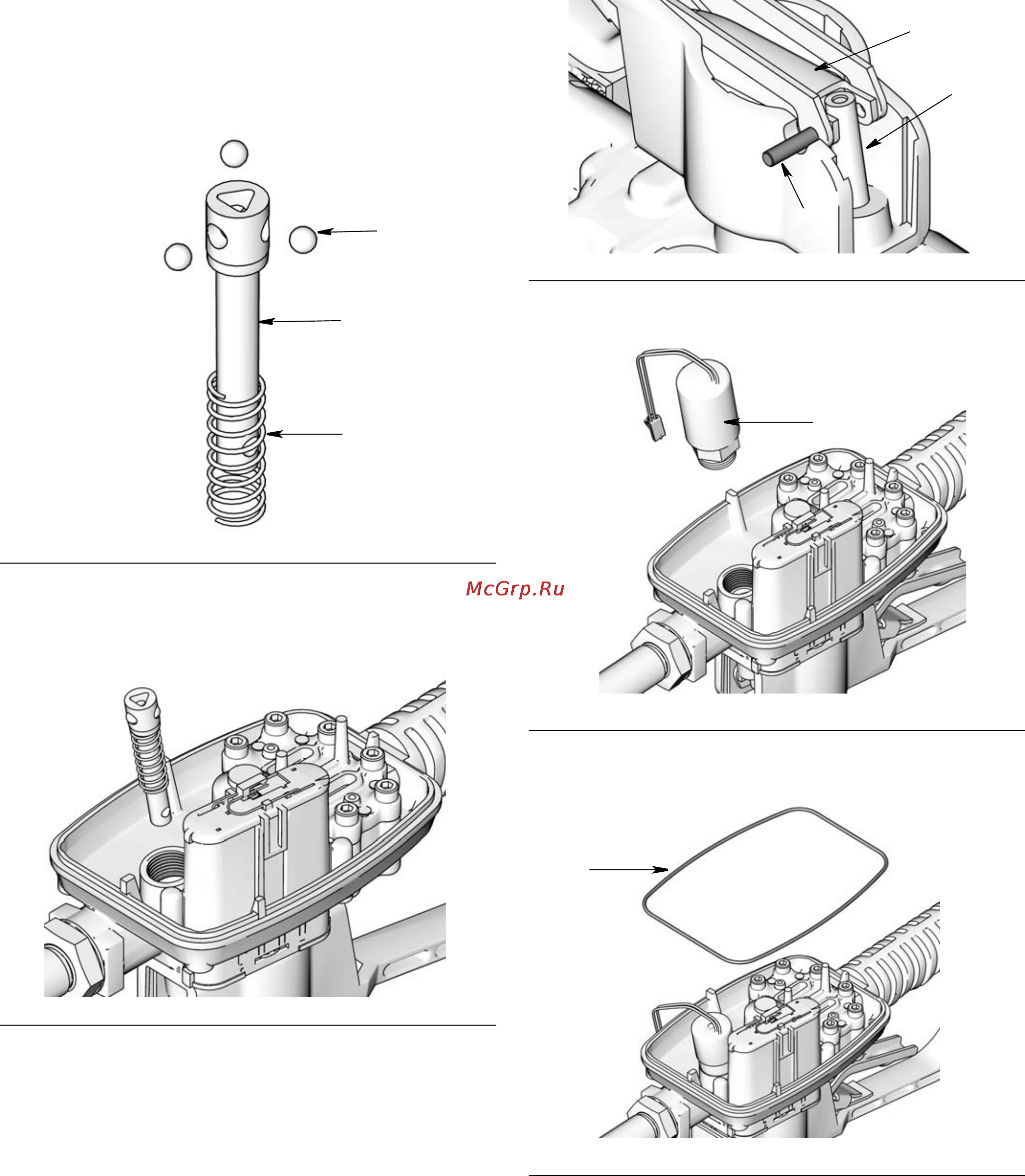

1. Insert balls (3) in trip rod (2) (F
IG. 42).
2. Slide spring (1) over trip rod (2) (F
IG. 42).
3. Insert trip rod assembly in opening in meter housing
(F
IG. 43).
4. Turn meter over and place in vise. Align holes in trig-
ger assembly with holes in trip rod (2). Use the old
trip rod or a non-metal rod or dowel to push trip rod
up and out of the meter housing (F
IG. 44) far enough
to see hole for pin (19) to slide into, however, do not
install pin in this step.
5. Install trigger assembly (8) (F
IG. 44). Push pin (19)
through holes in trigger and trip rod assembly.
6. Install solenoid (12). Finger tighten securely.
7. Install o-ring (5).
F
IG. 42
F
IG. 43
ti12014a
3
2
1
FIG. 44
F
IG. 45
F
IG. 46
ti12015a
19
2
8
ti12238a
12
ti11941a
5
