Service
312865T 35

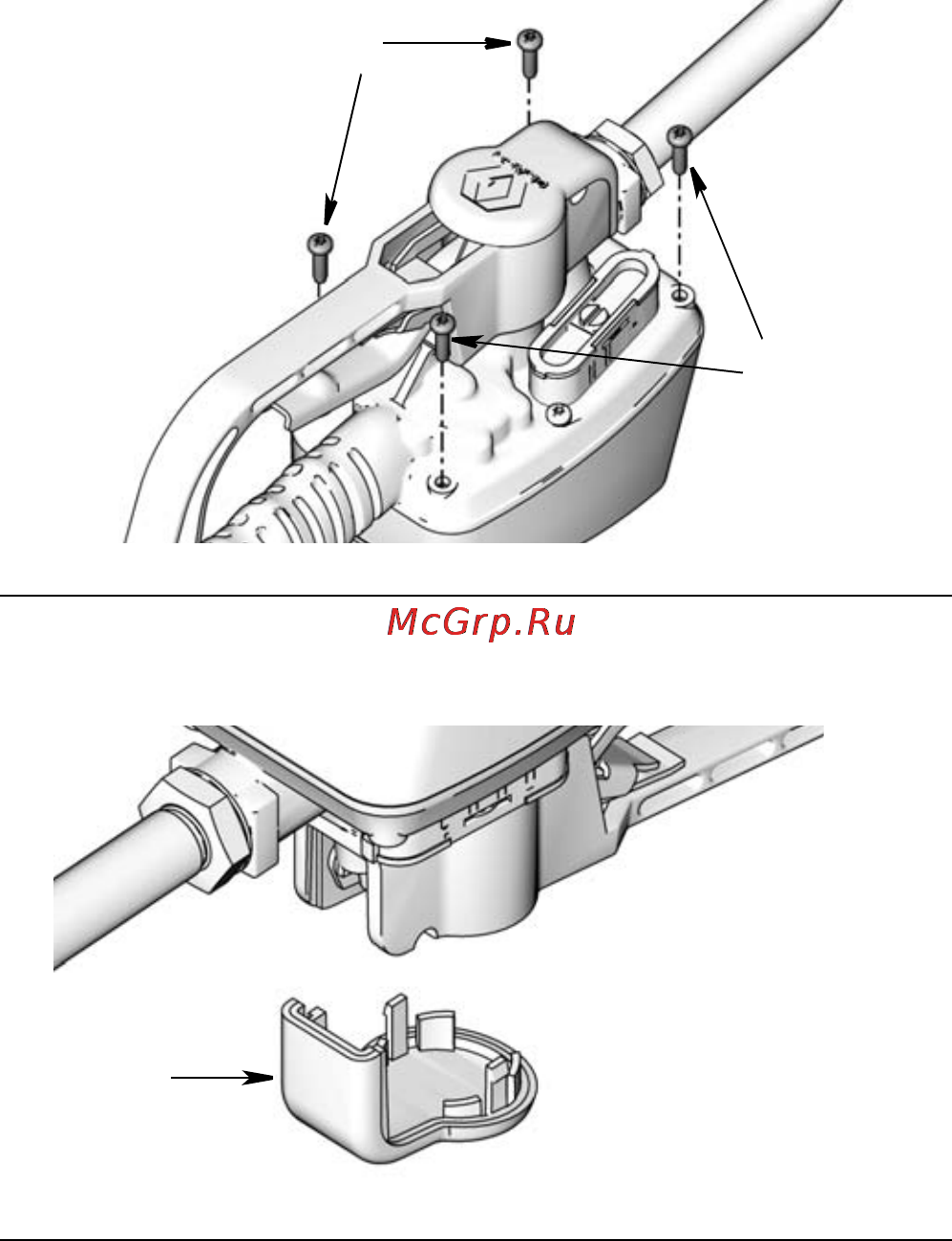

12. Replace 4 screws (A). Torque each to 15-25 inch
pounds.
13. Install guard (9).
F
IG. 50
F
IG. 51
A
A
ti11936a
ti12009a
9
Содержание
- For metered dispense of oils and 50 50 antifreeze water mix fluids for professional use only 1
- Instructions 1
- List of models page 2 1
- Not approved for use in european explosive atmosphere locations 1
- Sdm5 sdm15 manual sdp5 sdp15 preset meters 1
- Models 2
- Sdm5 manual dispense electronic meters 2
- Sdm15 manual dispense electronic meters 3
- Sdp5 preset dispense electronic meters 4
- Sdp15 preset dispense electronic meters 5
- Warning 6
- Warnings 6
- Warning 7
- Drum mount bracket 8
- Installation 8
- Mounting bracket 8
- Typical installations 8
- Grounding 9
- Installation procedure 9
- Pre installation procedure 9
- Pressure relief procedure 9
- Installing meter 10
- Installing tube extension 10
- Installing nozzle 11
- Locking and unlocking trigger 12
- Meter display 12
- Meter overview 12
- Navigation and modes 12
- Way menu navigation button 12
- Manual preset totals 13
- Manual totals 13
- Mobil1 5w 20 13
- Setup mode screens 13
- Displaying setup screen from an operation mode screen 14
- Main setup screen 14
- Main setup screen fig 12 14
- Units limit calibrate banner language home 14
- Units limit calibrate preset banner language home 14
- Manual limit 5 15
- Units limit screen 15
- Units limit screen fig 13 15
- Units qts 15
- Calibrate screen 16
- Calibrate screen fig 14 16
- Preset 18
- Preset screen 18
- Preset screen fig 15 18
- Banner screen 19
- Banner screen fig 16 19
- English 19
- Language 19
- Language screen 19
- Language screen fig 17 19
- M o b i l 1 5 w 19
- Dispensing fluid and operation mode screens 20
- Home screen 20
- Home screen fig 18 20
- Manual preset totals 20
- Manual totals 20
- Mobil1 5w 20 20
- Manual dispense 21
- Manual dispense fig 19 21
- Manual preset totals 21
- Mobil1 5w 20 21
- Preset dispense 22
- Preset dispense fig 22 22
- Mobil1 5w 20 23
- Manual preset totals 24
- Mobil1 5w 20 24
- Manual preset totals 25
- Mobil1 5w 20 25
- N total shows cumulative amount that has been dispensed in all modes for the life of the unit cannot be reset when the total n reaches 999 999 the count resets automatically to 000 25
- Totals screen 25
- Totals screen fig 26 25
- Troubleshooting 26
- Error codes 28
- Replacing the battery 29
- Service 29
- Disassembly 30
- Trip rod repair 30
- Cleaning trip rod 32
- Reassembly 33
- Sdm5 sdm15 manual meters parts 36
- Sdp5 sdp 15 preset meters parts 38
- Nozzle 33 and extension 20 kits 40
- Nozzle 33 kits 42
- Thermal relief kits page 8 42
- Technical data 43
- Copyright 2008 graco inc all graco manufacturing locations are registered to iso 9001 www graco com revised may 2016 44
- Graco 7 year meter and valve warranty 44
- Graco headquarters minneapolis international offices belgium china japan korea 44
- Graco inc and subsidiaries p o box 1441 minneapolis mn 55440 1441 usa 44
- Graco information 44
