Technical Data

22 308778U

Technical Data

Volumetric Fluid Flow Meters

U.S. Metric

Maximum Fluid Working Pressure

G3000 and G3000HR 4000 psi 28 MPa, 276 bar

S3000 Solvent Meter 3000 psi 21 MPa, 210 bar

G250 and G250HR 300 psi 2.1 MPa, 21 bar

Flow Range

G3000 and G250 0.02-1.0 gal/min 75-3800 cc/min

G3000HR and G250HR 0.01-0.5 gal/min 38-1900 cc/min

S3000 Solvent Meter 0.01-0.42 gal/min 38-1600 cc/min

Fluid Temperature Range

40-180°F 4-82°C

Maximum Ambient Temperature

140°F 60°C

Fluid Viscosity Range

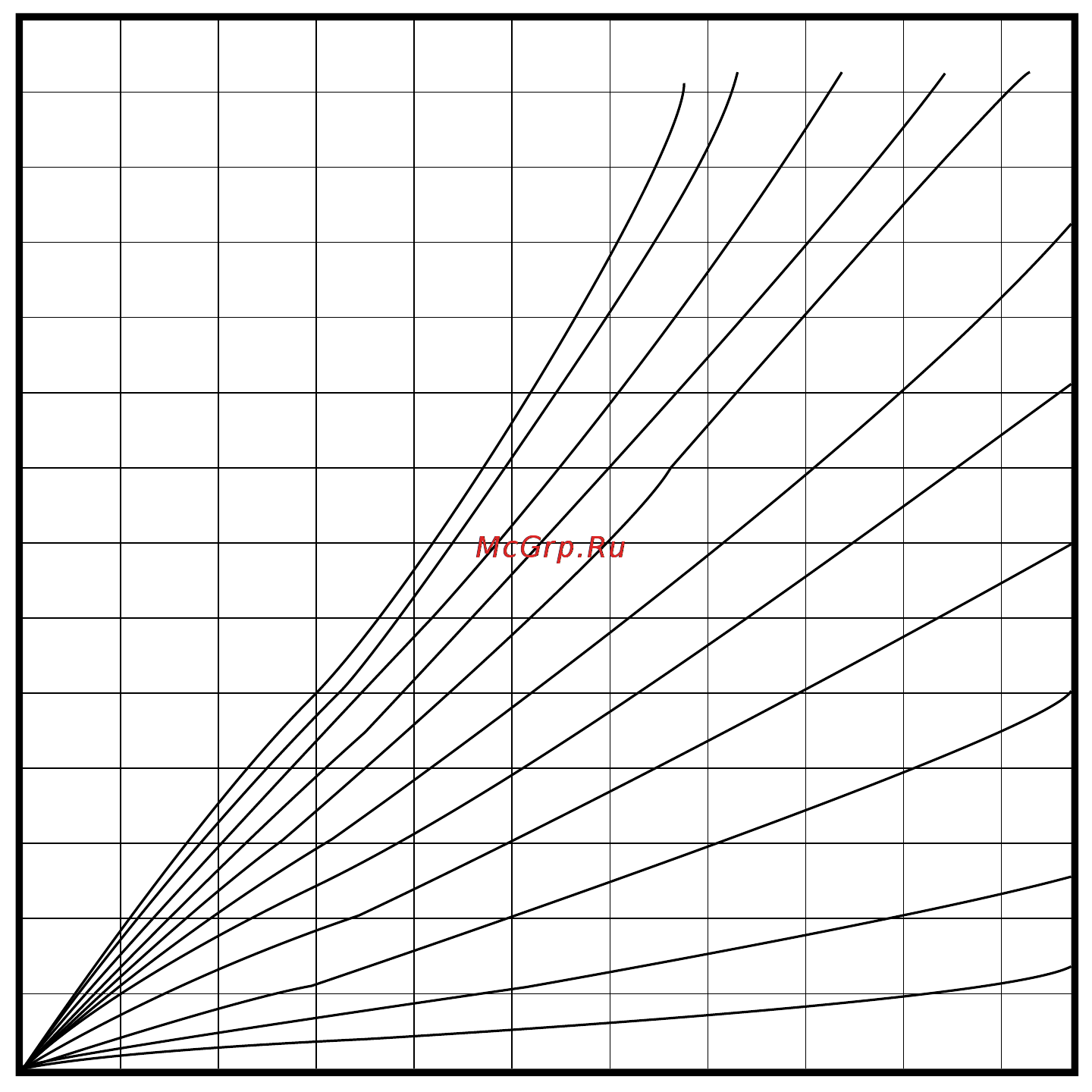

G3000 and G3000HR 20-3000 cps (see Pressure Drop Curve on page 23)

S3000 Solvent Meter solvent and light viscosity clear fluids (20-50 cps)

G250 and G250HR 20-3000 cps (see Pressure Drop Curve on page 23)

Maximum Cable Length

200 ft 61 m

Flow Meter Inlet/Outlet

1/4 npt(f)

Resolution

G3000 and G250 0.119 cc/pulse

G3000HR and G250HR 0.061 cc/pulse

S3000 Solvent Meter 0.021 cc/pulse

Accuracy

G3000, G3000HR, G250, and

G250HR

+/- 0.5% through communicated flow range for most commonly used coat-

ings. Accuracy will diminish at low viscosities and low flow rates.

S3000 Solvent Meter +/- 2.5% through communicated flow range.

Supply Voltage

10-30 Vdc

Entity Parameters

V max = 30 V; I max = 15 mA;

Ci = 0.4 microfarads; Li = .01 mH

Approvals

See front cover

Wetted Parts

G3000 and G3000HR 303 Stainless Steel, Tungsten Carbide, PTFE

S3000 Solvent Meter 303 Stainless Steel, PTFE

G250 and G250HR 303 Stainless Steel, Tungsten Carbide, PTFE

15V804, 15V827, and 280555

Meter Kits

303, 304, 17-4, and 17-7 Stainless Steel, PTFE

Weight

G3000 and G3000HR 6 lb 2.7 kg

S3000 Solvent Meter 6 lb 2.7 kg

G250 and G250HR 2.6 lb 1.8 kg
