Graco 10:1 President [5/16] Installation

308738 5

Installation

NOTES:

D Reference numbers and letters in parentheses in

the text refer to the callouts in the figures and

drawings.

D Always use Genuine Graco Parts and Accessories,

available from your Graco distributor. If you supply

your own accessories, be sure they are adequately

sized and pressure-rated to meet the system’s

requirements.

D Fig. 2 is only a guide for selecting and installing

system components and accessories. Contact your

Graco distributor for assistance in designing a

system to suit your particular needs.

Prepare the Operator

All persons who operate the equipment must be

trained in the safe, efficient operation of all system

components as well as the proper handling of all fluids.

All operators must thoroughly read all instruction

manuals, tags, and labels before operating the

equipment.

Prepare the Site

Ensure that you have an adequate compressed air

supply. Refer to the performance chart on page 15 to

find the air consumption of your pump.

Keep the site clear of any obstacles or debris that

could interfere with the operator’s movement.

Have a grounded, metal pail available for use when

flushing the system.

Mounting the Pump

Screw the bung adapter (B) tightly into the drum bung

hole and tighten the thumbscrew to hold the pump

about 13 mm (0.5 in.) off the bottom of the drum.

Loosen the drum vent plug to prevent forming a

vacuum. The pump dimensions are shown on page 13.

Grounding

WARNING

FIRE AND EXPLOSION HAZARD

Before operating the pump, ground the

system as explained below. Also read

the section FIRE AND EXPLOSION

HAZARD on page 4.

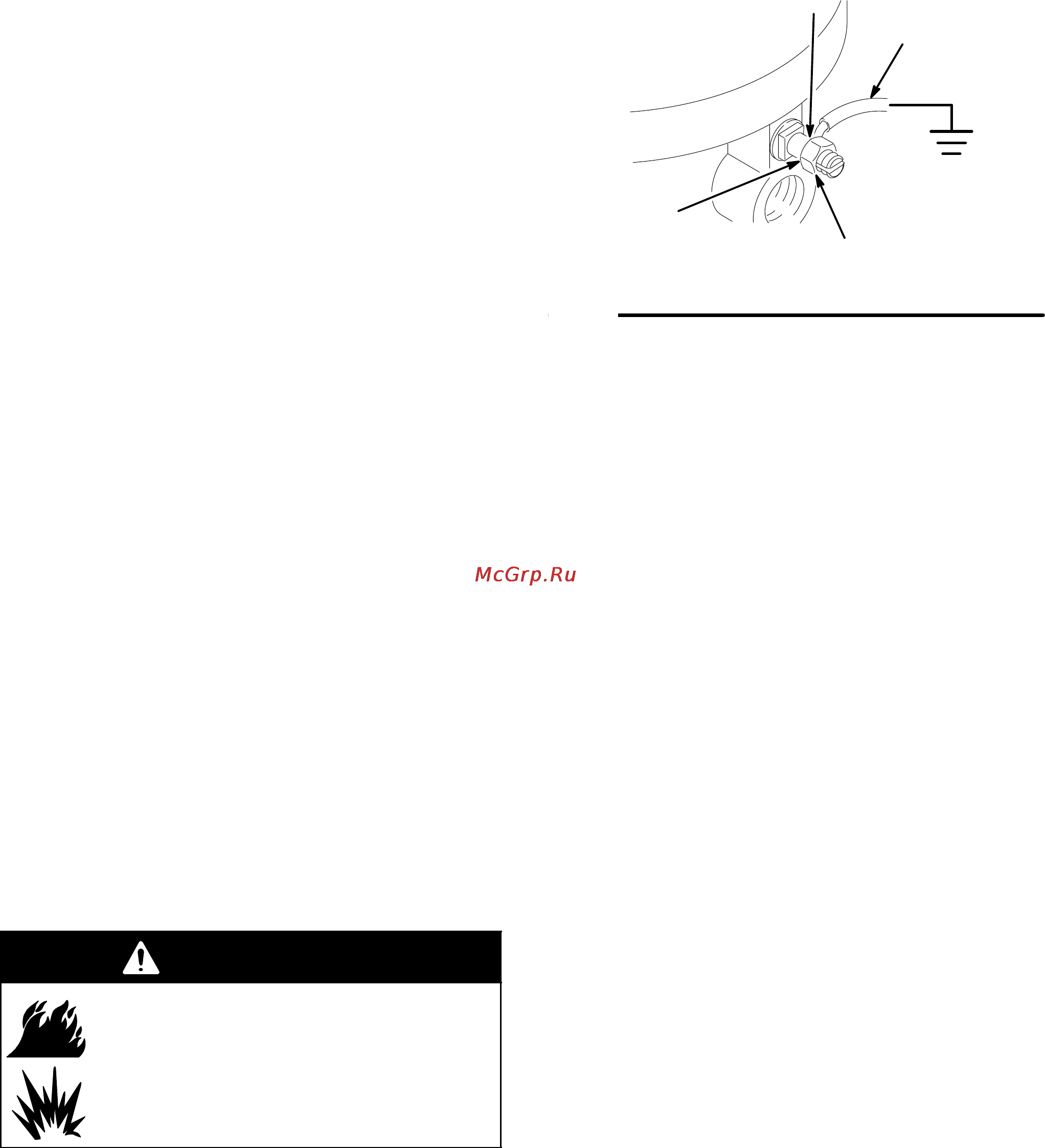

D Pump: Use a ground wire and clamp. See Fig.1.

Loosen the grounding lug locknut (W) and washer

(X). Insert one end of a 12 ga (1.5 mm@) minimum

ground wire (Y) into the slot in lug (Z) and tighten

the locknut securely. Connect the other end of the

wire to a true earth ground. For a ground wire and

clamp, order Part No. 237569.

0720

Fig. 1

D Air and fluid hoses: Use only electrically conductive

hoses with 150 m (500 ft) maximum combined hose

length to ensure grounding continuity.

D Air compressor: Follow manufacturer’s

recommendations.

D Spray gun or dispensing valve: Connect to a

properly grounded fluid hose and pump.

D Object being sprayed: Follow your local code.

D Fluid supply container: Follow your local code.

D Solvent pails used when flushing: Follow your local

code. Use only metal pails, which are conductive,

placed on a grounded surface. Do not place the

pail on a nonconductive surface, such as paper or

cardboard, which interrupts the grounding

continuity.

D To maintain proper grounding continuity when

flushing or relieving pressure, always hold the metal

part of the spray gun/dispense valve firmly to the

side of a grounded metal pail, then trigger the

gun/valve.
