Graco 10:1 President [6/16] Installation
![Graco 10:1 President [6/16] Installation](/views2/1193923/page6/bg6.png)
6 308738
Installation

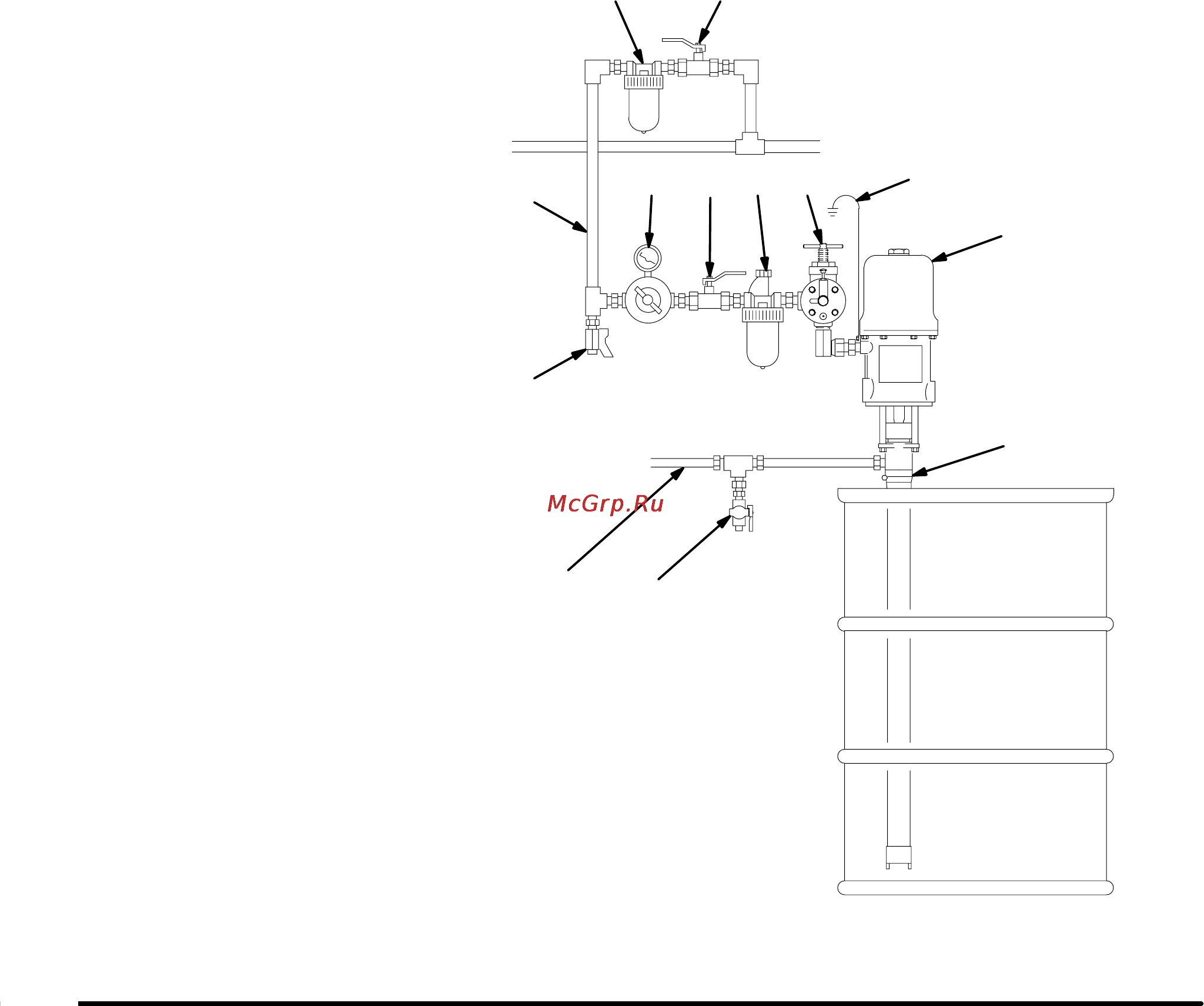

Typical Installation
Fig. 2
KEY
A Pump
B Bung adapter
C Air line lubricator
D Bleed-type master air valve (required for pump)
See Warning on page 7 for part number.
E Pump air regulator
F Air line filter
G Bleed-type master air valve (for accessories)
H Electrically conductive air supply hose
J Air line moisture trap and drain valve
K Pump runaway valve
L Fluid drain valve (required)
See Warning on page 7 for part numbers.
M Electrically conductive fluid supply hose
Y Ground wire (required)
Part No. 237569. See page 5 for installation instructions.
J
A
CDE
FG
H
L
Y
B
K
M
07201
