Add a NAT Rule

Checked the “Enable” checkbox and input the correspondent NAT parameters in the page, and then click

“New/Insert” to add it into the NAT List Table. Finally, click “Activate” to activate the configuration.

Delete a NAT Rule

Select the item in the NAT List Table, then, click “Delete” to delete the item.

Modify a NAT Rule

Select the item in the NAT List Table. Modify the attributes and click “Modify” to change the configuration.

Activate NAT List Table

After adding/deleting/modifying any NAT Rules, be sure to Activate it.

NOTE

The

Industrial Secure Router will add an N-

1 policy from the source IP, 192.168.127.1 to 192.168.127.252 to

the WAN1 interface after activating the Factory Default.

Port Forward

If the initial connection is from outside the LAN, but the user still wants to hide the Internal IP address, one way

to do this is to use the Port Forwarding NAT function.

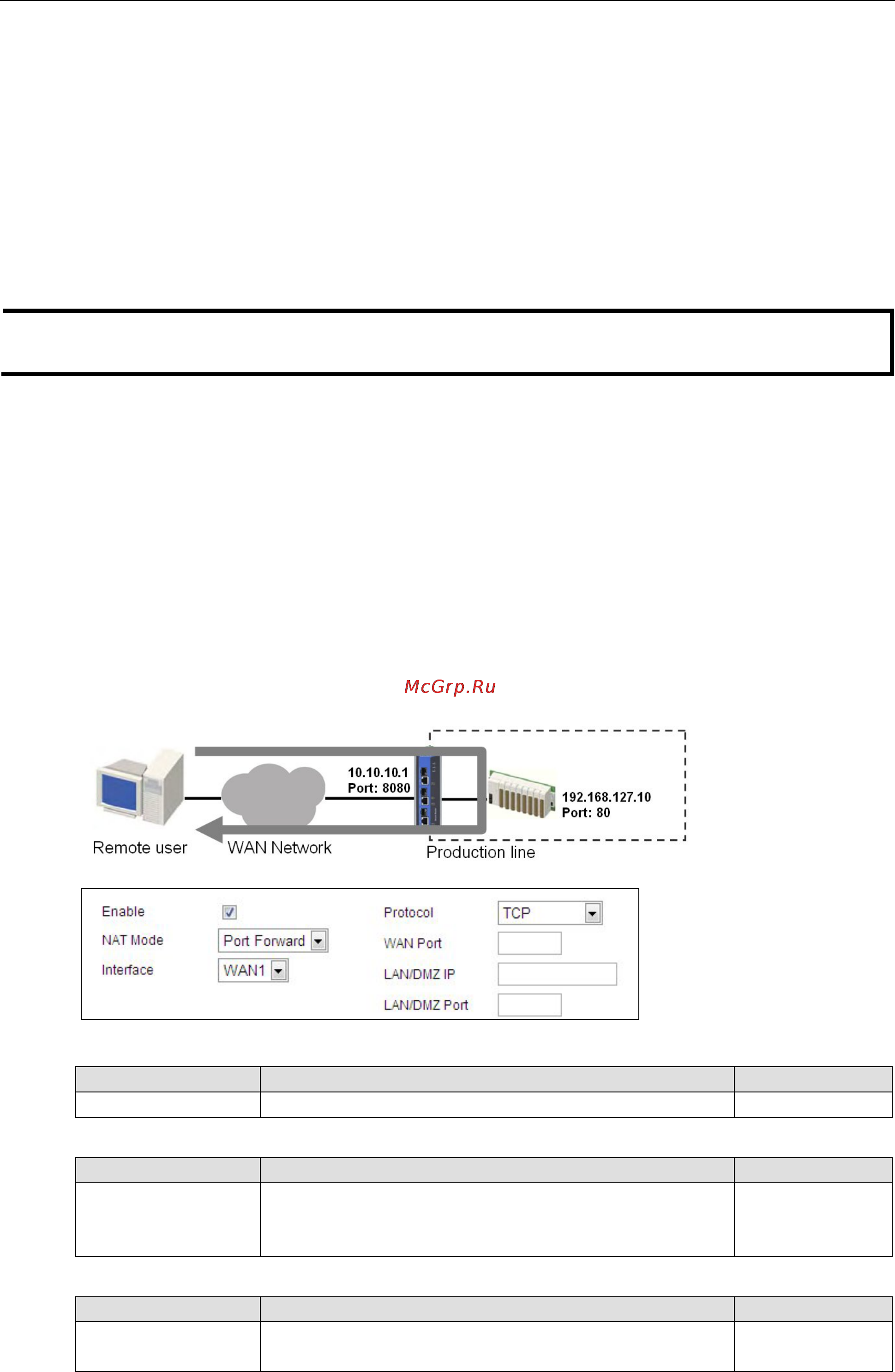

The user can specify the port number of an external IP address (WAN1 or WAN2) in the Port Forwarding policy

list. For example, if the IP address of a web server in the internal network is 192.168.127.10 with port 80, the

user can set up a port forwarding policy to let remote users connect to the internal web server from external IP

address 10.10.10.10 through port 8080. The Industrial Secure Router will transfer the packet to IP address

192.168.127.10 through port 80.

The Port Forwarding NAT function is one way of connecting from an external insecure area (WAN) to an internal

secure area (LAN). The user can initiate the connection from the external network to the internal network, but

will not able to initiate a connection from the internal network to the external network.

Enable/Disable NAT policy

Setting Description Factory Default

Enable or Disable Enable or disable the selected NAT policy Enabled

NAT Mode

Setting

Description

Factory Default

N-1

1-1

Port Forward

Select the NAT types N-1

Interface (Port Forward mode)

Setting Description Factory Default

WAN1

WAN2

Select the Interface for this NAT Policy WAN1
