Industrial Secure Router User's Manual EDR-G902/G903 Series Features and Functions
4-14

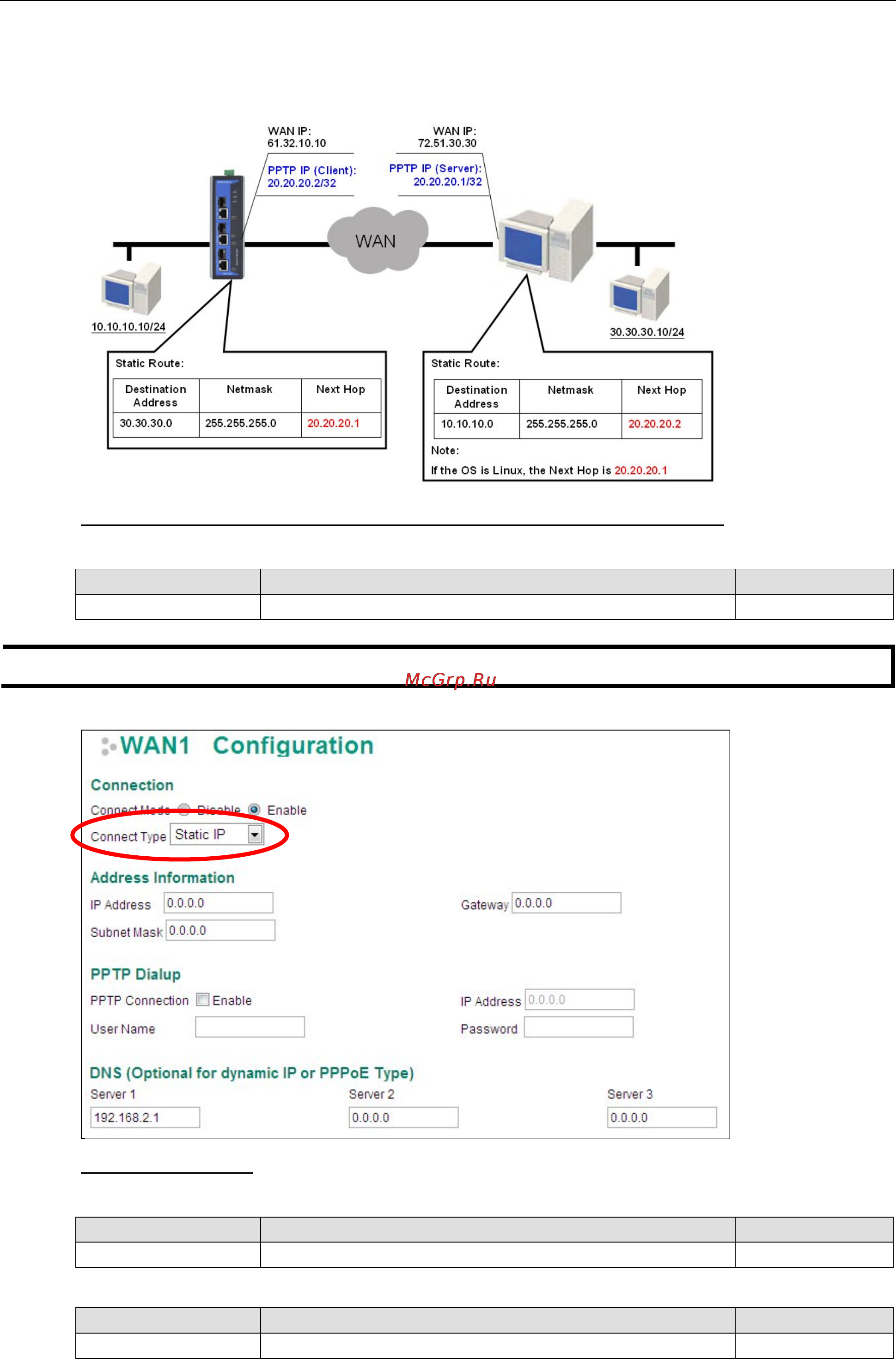

Example: Suppose a remote user (IP: 10.10.10.10) wants to connect to the internal server (private IP:
30.30.30.10) via the PPTP protocol. The IP address for the PPTP server is 20.20.20.1. The necessary
configuration settings are shown in the following figure.
DNS (Doman Name Server; optional setting for Dynamic IP and PPPoE types)
Server 1/2/3
Setting Description Factory Default
IP Address The DNS IP address None
NOTE
The priority
of a manually configured DNS will higher than the DNS from the PPPoE or DHCP server.
Detailed Explanation of Static IP Type
Address Information
IP Address
Setting Description Factory Default
IP Address The interface IP address None
Subnet Mask
Setting Description Factory Default
IP Address The subnet mask None
