PT-7528 Series Advanced Settings

4-83

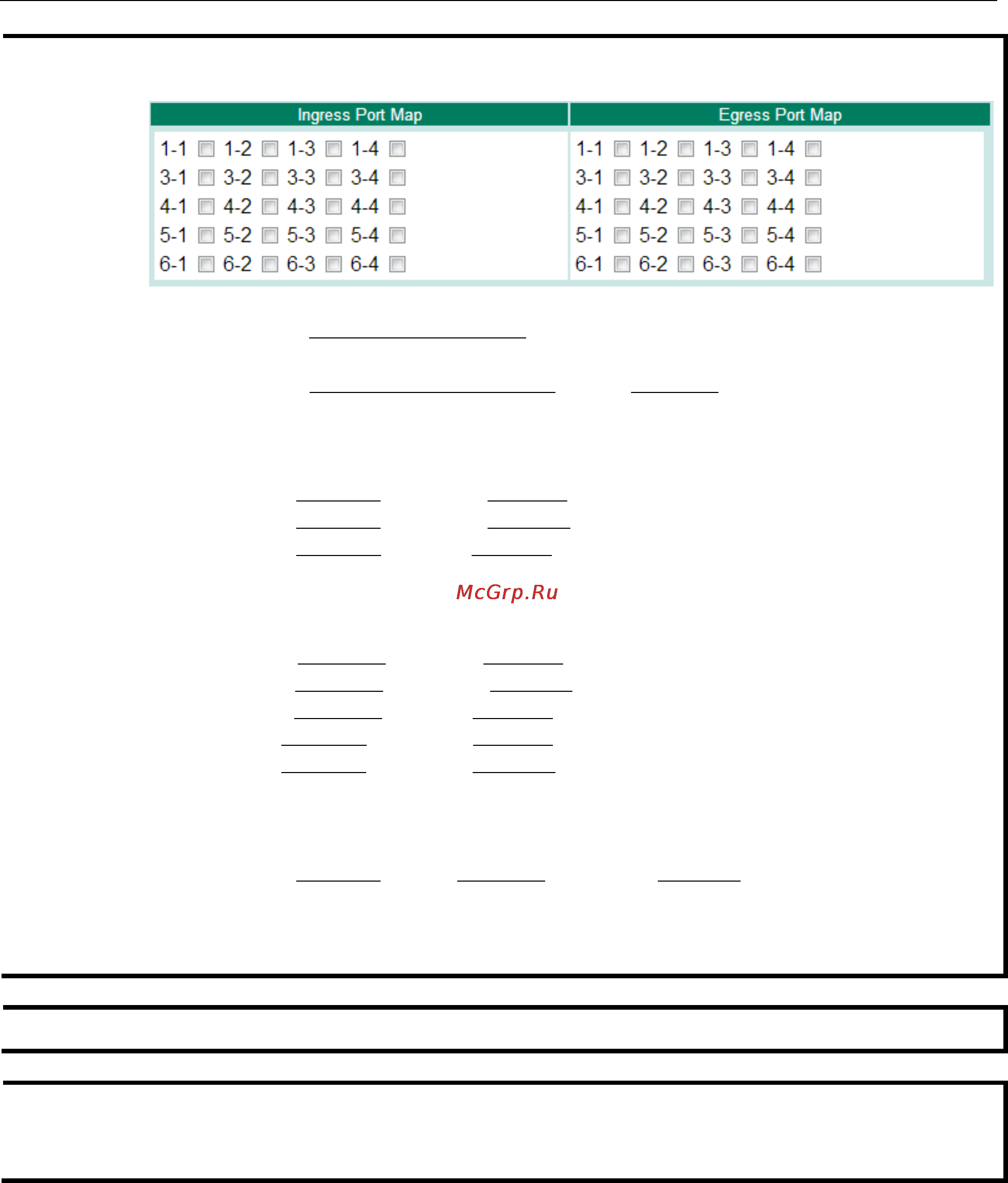

NOTE

For

EDS-828 and PT-

7828 series, there are two limitations on ACL settings. Based on the ingress port type of

ACL rules, there are two types for the limitation of numbers.

Limitation Type 1:

When rules contain Ingress Fast Ethernet (FE) ports, the Number should NOT be greater than 160.

Limitation Type 2:

When rules contain Ingress Gigabit Ethernet (GE) ports or no Ingress ports, the

Number should NOT

be greater than 40.

Example 1 for Limitation 1

Rule A contains 3 ingress FE ports and 4 egress FE ports, and it results in the number of 3 x 4 = 12.

Rule B contains 5 ingress FE ports and 6 egress GE ports, and it results in the number of 5 x 6 = 30.

Rule C contains 7 ingress FE ports and no egress port, and it results in the number of 7.

Make sure the amount of those numbers “12+30+7” is not greater than 160.

Example 2 for Limitation 2

Rule D contains 1 ingress GE port and 2 egress FE ports, and it results in the number of 1 x 2 = 2.

Rule E contains 3 ingress GE ports and 4 egress GE ports, and it results in the number of 3 x 4 = 12.

Rule F contains 5 ingress GE ports and no egress ports, and it results in the number of 5.

Rule G contains no ingress ports and 6 FE egress ports, and it results in the number of 6.

Rule H contains no ingress ports and 7 GE egress ports, and it results in the number of 7.

Make sure the amount of those numbers “2+12+5+6+7” is not greater than 40.

Example 3 for Limitation 1 and 2

Rule Z contains 3 ingress FE ports, 2 ingress GE ports, and 5 egress GE ports.

It results in the number of 3 x 5 = 15 in Limitation 1, and 2 x 5 = 10 in Limitation 2.

Make sure the amount in limitation 1, “15”, is not greater than 160.

Make sure the amount in limitation 2, “10”, is not greater than 40.

NOTE

EDS

-828 and PT-7828 series switches only provide 6 Types of ACL rules.

NOTE

For

EDS-828 and PT-7828 series, Broadcast and Multicast traffic filters are NOT

supported on egress ports of

ACL settings.

On the other hand, Broadcast’s and Multicast’s Addresses are not allowed to be set in

Source/Destination Addresses.
