PT-7528 Series Quick Settings

3-7

Mirror Port Settings

Setting Description

Monitored Port Select the number of the ports whose network activity will be monitored.

Mirror Port Select the number of the port that will be used to monitor the activity of the monitored

port.

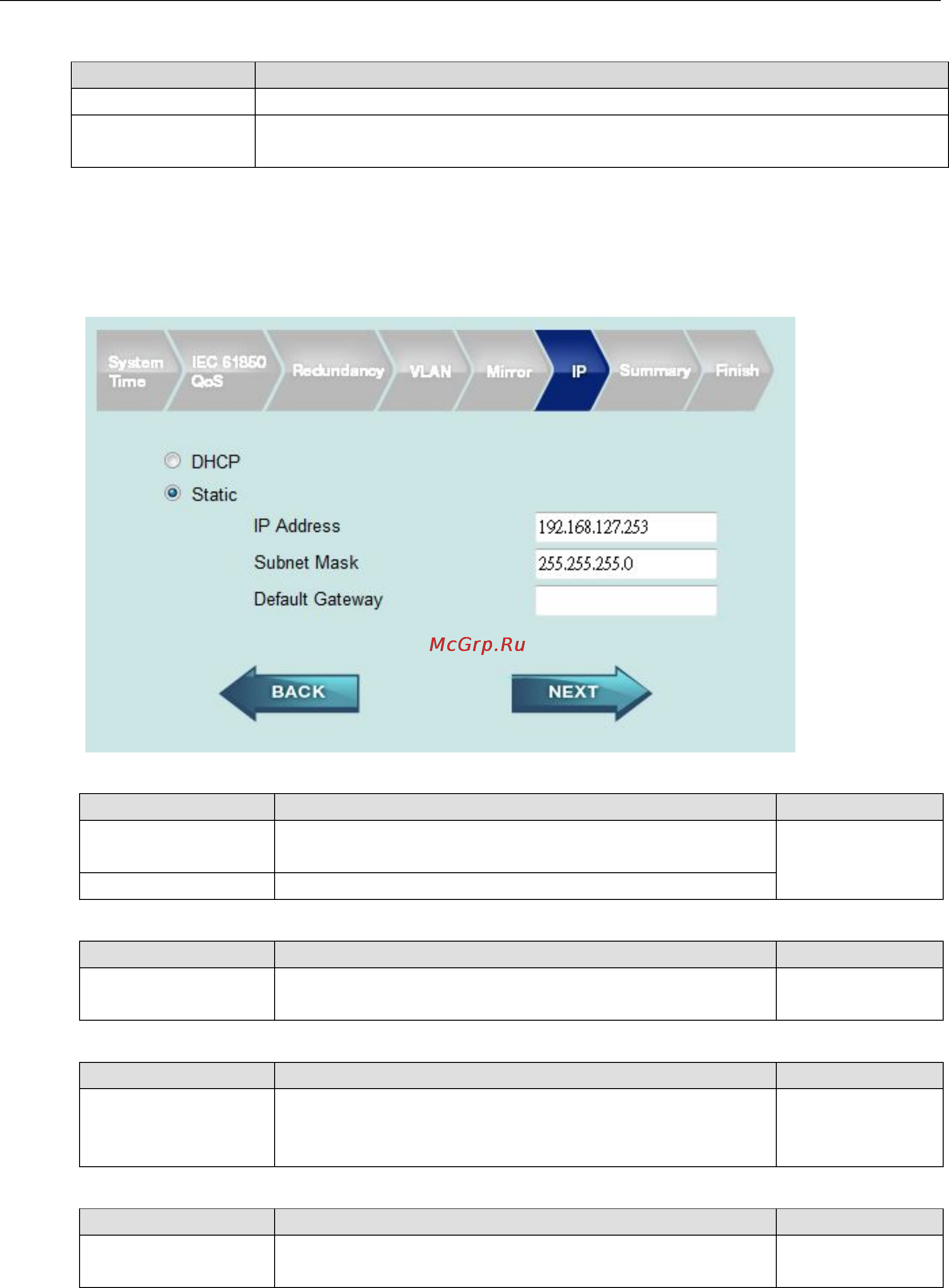

The IPv4 settings include the switch’s IP address and subnet mask, as well as the IP address of the default

gateway.

IP Configuration

Setting Description Factory Default

DHCP The Moxa switch’s IP address will be assigned automatically by

the network’s DHCP server.

Static The Moxa switch’s IP address will be assigned by inputting.

Switch IP Address

Setting Description Factory Default

IP address for the Moxa

switch

Assigns the Moxa switch’s IP address on a TCP/IP network. 192.168.127.253

Switch Subnet Mask

Setting Description Factory Default

Subnet mask for the

Moxa switch

Identifies the type of network the Moxa switch is connected to

(e.g., 255.255.0.0 for a Class B network, or 255.255.255.0 for

a Class C network).

255.255.255.0

Default Gateway

Setting Description Factory Default

IP address for gateway

Specifies the IP address of the router that connects the LAN to

an outside network.

None
