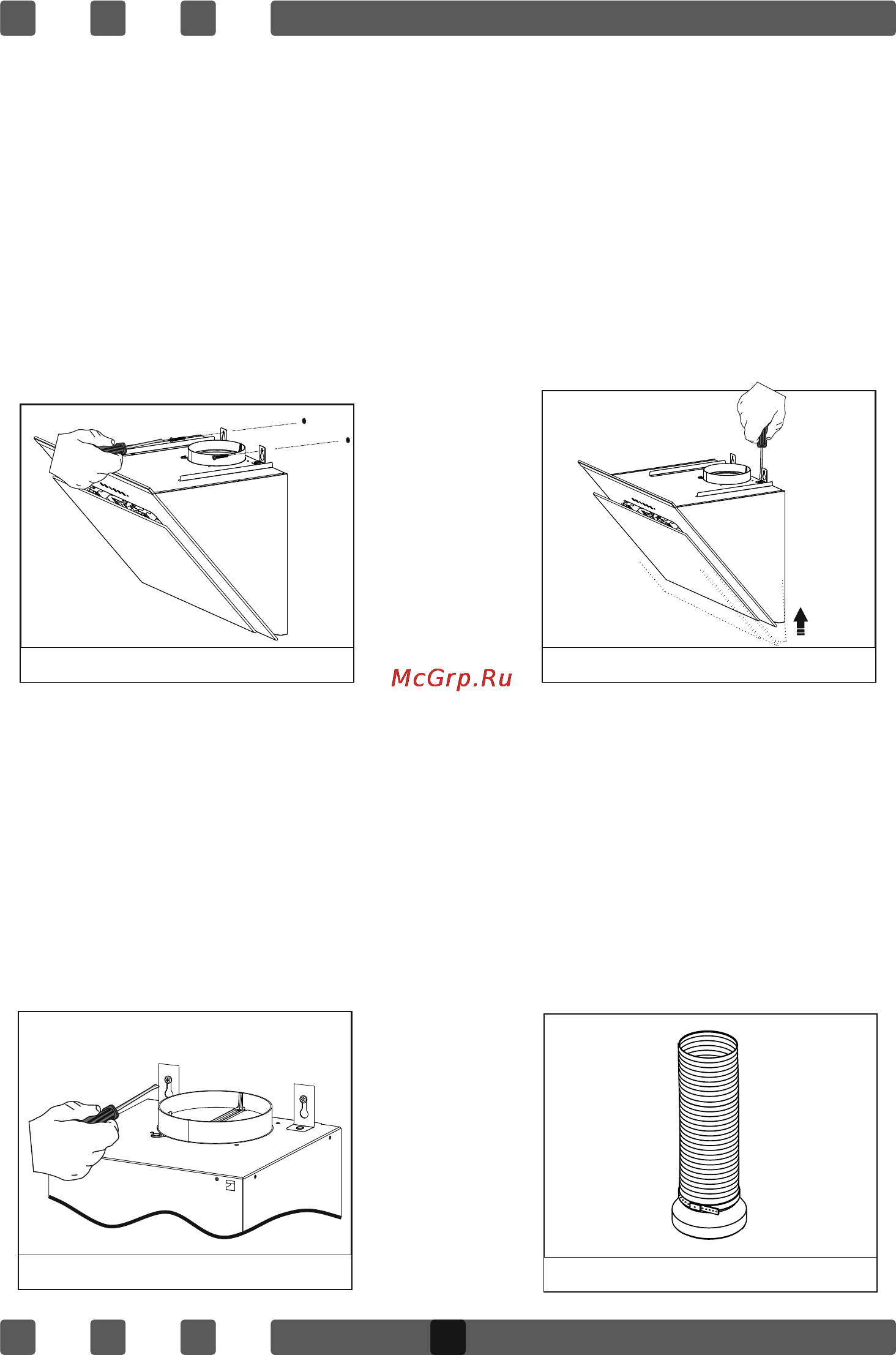

Fig 3

Fig 4

3.4.Installation of Inner Duct Mounting Bracket

2 ﬁxing holes are drilled on the wall with Ø6mm electric drill at a suitable

height and place to ﬁx the inner duct hanger plate onto the wall. 6mm drywall

anchors are nailed into those holes and inner duct mounting brackrets are

pinned down.

At the last step of chimney hood installation, the inner duct is screwed on the

inner duct mounting brackets.

4.MOUNTING THE CHIMNEY HOOD ON THE WALL

Lift the chimney hood body and ﬁx the hanger plates onto the wall anchors as

shown in Figure 3.

4.1.Leveling the Chimney Hood

If the chimney hood is inclined on one side, the chimney hood can be leveled

with the adjustment screws as shown in Figure 4.

Once the balancing is complete, the screws shown in Figure 5 must be ﬁxed

tightly.

After this, ﬁx the body with one screw through the hole on the body.

4.2.Mounting the Aluminum Pipe

Place the aluminum pipe on the plastic duct. Place the other end of the pipe

into the air outlet in the kitchen. Figure 6
