Twists and bends on the aluminum pipe may cause minimizing the air suction

so avoid unnecessary bends and twists as much as possible.

Place the inner duct and outer duct carefully on the product. Fix the inner

duct to inner duct connection plate with 2 screws. (Figure 9)

5.FUNCTIONS OF THE CHIMNEY HOOD

5.1.Control Panel

 Touch Control: Touch the symbols on the glass surface. If Press a symbol

longer (more 3 sec) may operate various functions.

 Digital Control: touch the symbols on the keys. (On/Off function and timer

are on the same key; if pressed for 1 sec on-off function will operate. If

pressed for 3 sec. 15 minutes timer will operate.

Note: When the product operates for a certain time, the aluminum filters

get dirty and the digital display shows "C" Clean sign. This means the

filters should be cleaned. Press the speed reduction key for 5 secs in

order to delete "C" sign from the display.

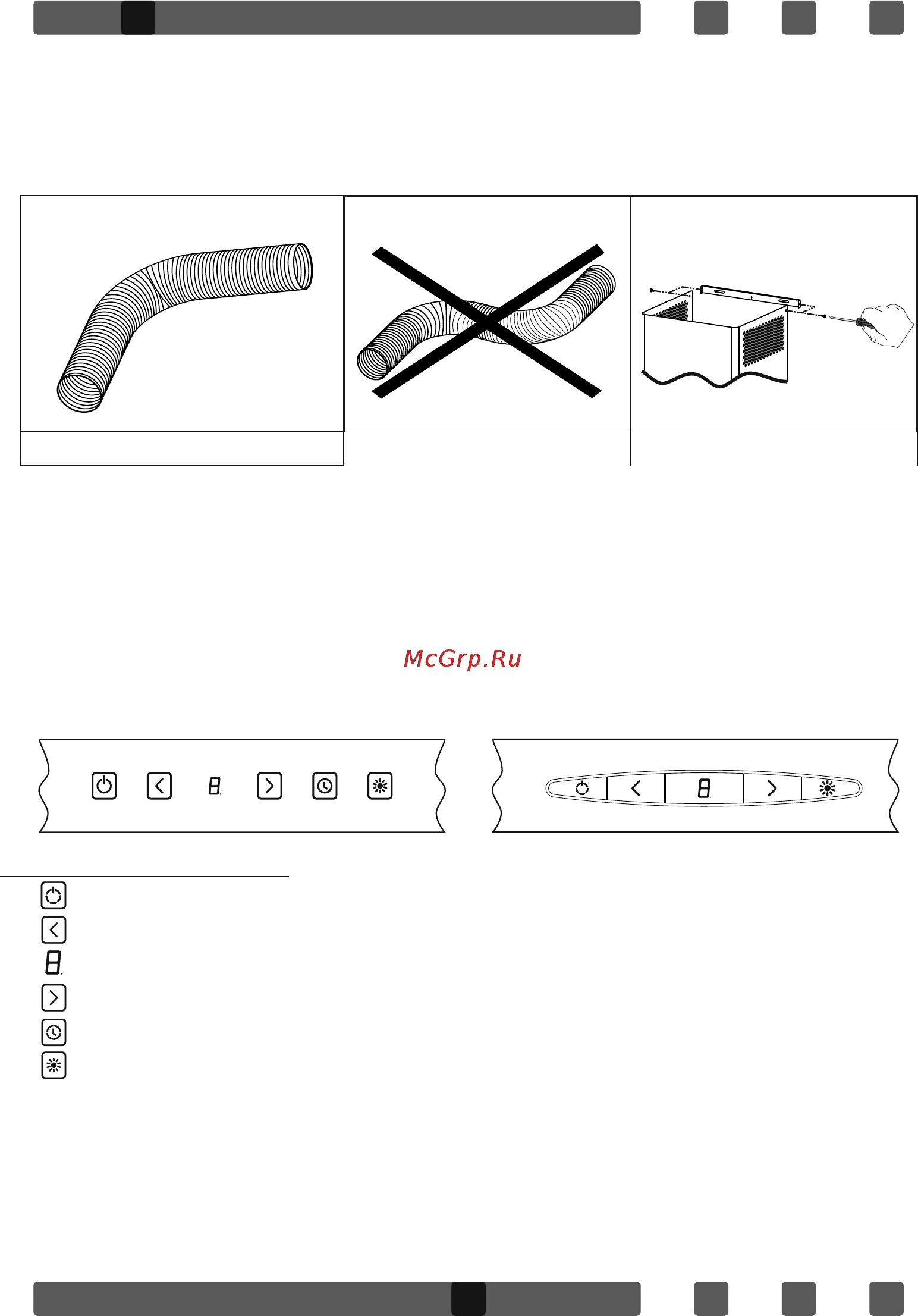

Fig 7 Fig 8

Fig 9

SYMBOLS FUNCTIONS

 Switches on and off the motor. (Except for the lighting)

 Decreases the speed when the motor is running.

 Display

 Increases the speed when the motor is running.

 If pressed this symbol, the motor turns itself off 15 minutes later.

 Only switches on and off the lighting system.
