Moxa IKS-6728A-4GTXSFP-24-24-T [2/8] Dimensions
![Moxa IKS-6728A-4GTXSFP-24-24-T [2/8] Dimensions](/views2/1196582/page2/bg2.png)
Industrial Ethernet Solutions
2
www.moxa.com
440 (17.33)
280 (11.02)
44 (1.73)

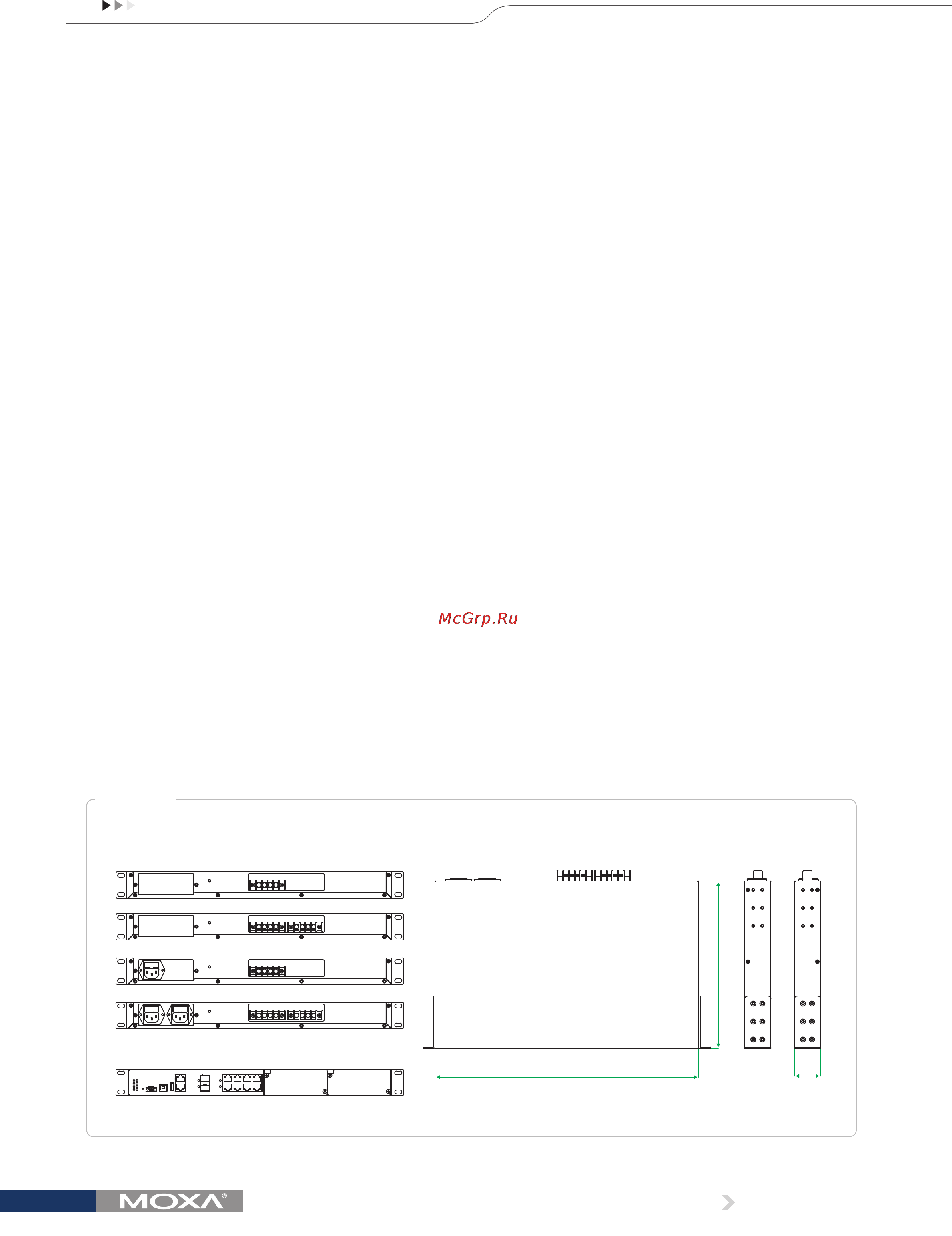

Rear View
Front View Top View Side View
Dimensions
Unit: mm (inch)
IKS-6726A-2GTXSFP Series
Software Features
Management: IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM,
RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP,
SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back
Pressure Flow Control
Filter: 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2/v3, GMRP
Redundancy Protocols: STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo
Chain, Link Aggregation
Security: RADIUS, TACACS+, SSL, SSH, Broadcast Storm Protection,
Port Lock
Time Management: SNTP, NTP Server/Client, IEEE 1588v2 PTP
(software-based)
Industrial Protocols: EtherNet/IP, Modbus/TCP, PROFINET
MIB: MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge
MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Switch Properties
Priority Queues: 4
Max. Number of VLANs: 64
VLAN ID Range: VID 1 to 4094
IGMP Groups: 2048
MAC Table Size: 16 K
Packet Buffer Size: 12 Mbit
Jumbo Frame Size: 9.6 KB
Interface
Fast Ethernet: 8-port 10/100Base T(X) and 2 modular slots for any
8-port or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX
(SC/ST connector), or 100Base SFP
Note: See the IM-6700A datasheet for Fast Ethernet module product information.
Gigabit Ethernet: 2- or 4-port 10/100/1000BaseT(X) or 100/1000Base
SFP
Console Port: USB-serial console (Type B connector)
Storage Port: USB storage (Type A connector for ABC-02-USB)
Alarm Contact: 1 relay output with current carrying capacity of 3 A @
30 VDC or 3 A @ 240 VAC
Power Requirements
Input Voltage:
•24VDCmodels:24VDC
•48VDCmodels:48VDC
•HVmodels:110/220VAC
Operating Voltage:
•24VDCmodels:18to36VDC
•48VDCmodels:36to72VDC
•HVmodels:85to264VAC
Input Current: (without IM-6700A modules installed)
•Max.0.36A@24VDC
•Max.0.19A@48VDC
•Max.0.28/0.14A@110/220VAC
Overload Current Protection: Present
Reverse Polarity Protection: Present
Physical Characteristics
IP Rating: IP30 protection
Dimensions: 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)
Weight: 4100 g (9.05 lb)
Installation: 19-inch rack mounting
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 60950-1, EN 60950-1
EMC: EN 55022/24
EMI: CISPR 22, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: Signal: 10 V
IEC 61000-4-8
Rail Traffic: EN 50121-4
Marine: DNV, GL, LR, ABS, NK
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Note: Please check Moxa’s website for the most up-to-date certification status.
MTBF (mean time between failures)
Time:
IKS-6726A: 149,151 hrs
IKS-6728A: 148,687 hrs
Standard: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
