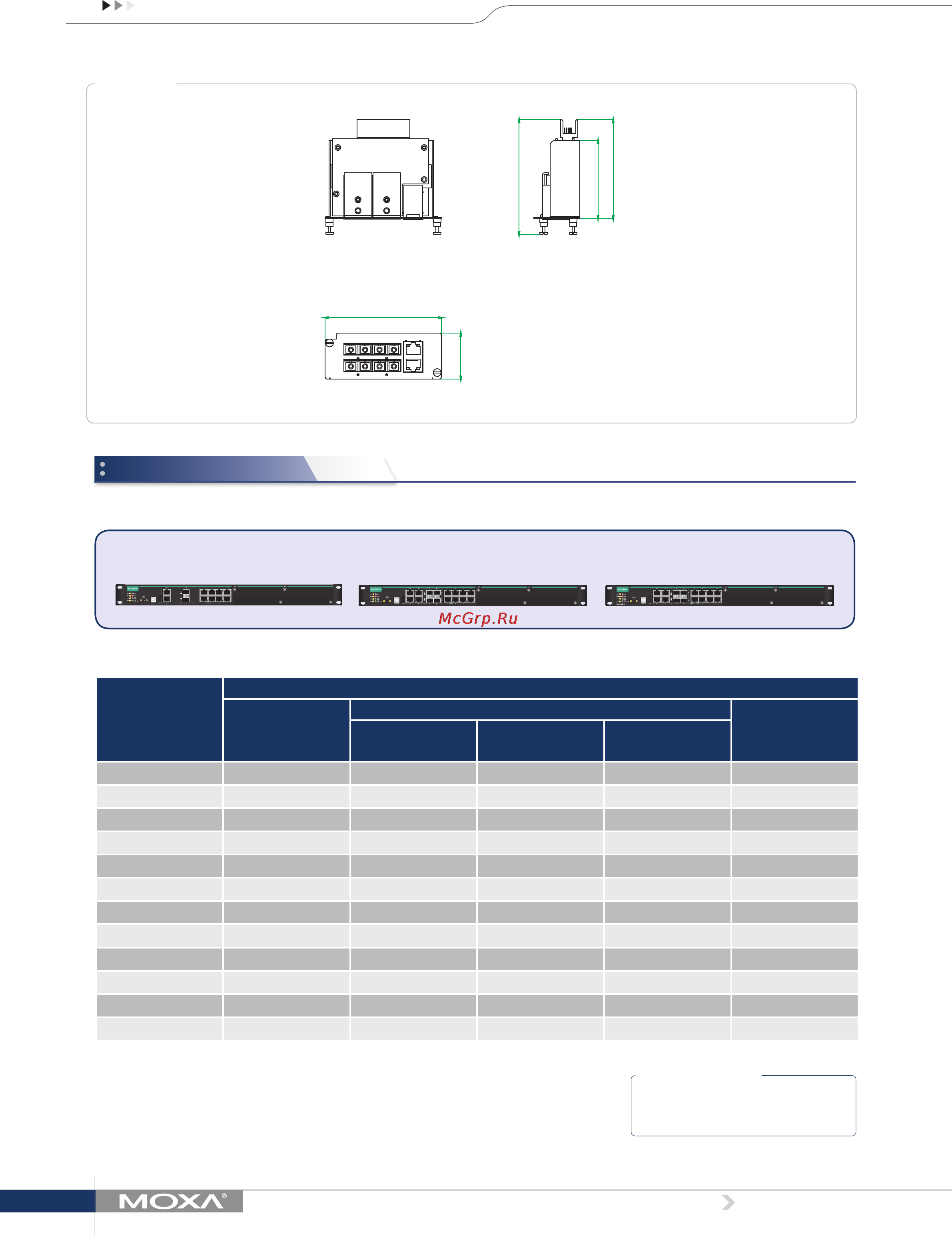

Dimensions
Unit: mm (inch)
Compatible Rackmount Ethernet Switch Systems
Ordering Information
Modular Rackmount Ethernet Switch System:
IKS-6726A-2GTXSFP IKS-6728A-4GTXSFP
IKS-6726A
Fast Ethernet Modules, IM-6700A Series
Available Models
Port Interface
10/100BaseT(X)
100BaseFX
100BaseSFP*
Multi-Mode,
SC Connector
Multi-Mode,
ST Connector
Single-Mode,
SC Connector
IM-6700A-8TX
8 – – – –
IM-6700A-8SFP
– – – – 8
IM-6700A-6MSC
– 6 – – –
IM-6700A-6MST
– – 6 – –
IM-6700A-6SSC
– – – 6 –
IM-6700A-4MSC2TX
2 4 – – –
IM-6700A-4MST2TX
2 – 4 – –
IM-6700A-4SSC2TX
2 – – 4 –
IM-6700A-2MSC4TX
4 2 – – –
IM-6700A-2MST4TX
4 – 2 – –
IM-6700A-2SSC4TX
4 – – 2 –
IM-6700A-8PoE
8 (PoE+ ports) – – – –
Package Checklist
• IM-6700A series interface module
• Warranty card
IKS-6728A-8PoE
Side ViewTop View
Front View
105.6 (4.16)
41.8 (1.65)
71 (2.80)
89.7 (3.53)
104.1 (4.10)
105.6 (4.16)
41.8 (1.65)
71 (2.80)
89.7 (3.53)
104.1 (4.10)
IKS-6728A
105.6 (4.16)
41.8 (1.65)
71 (2.80)
89.7 (3.53)
104.1 (4.10)
