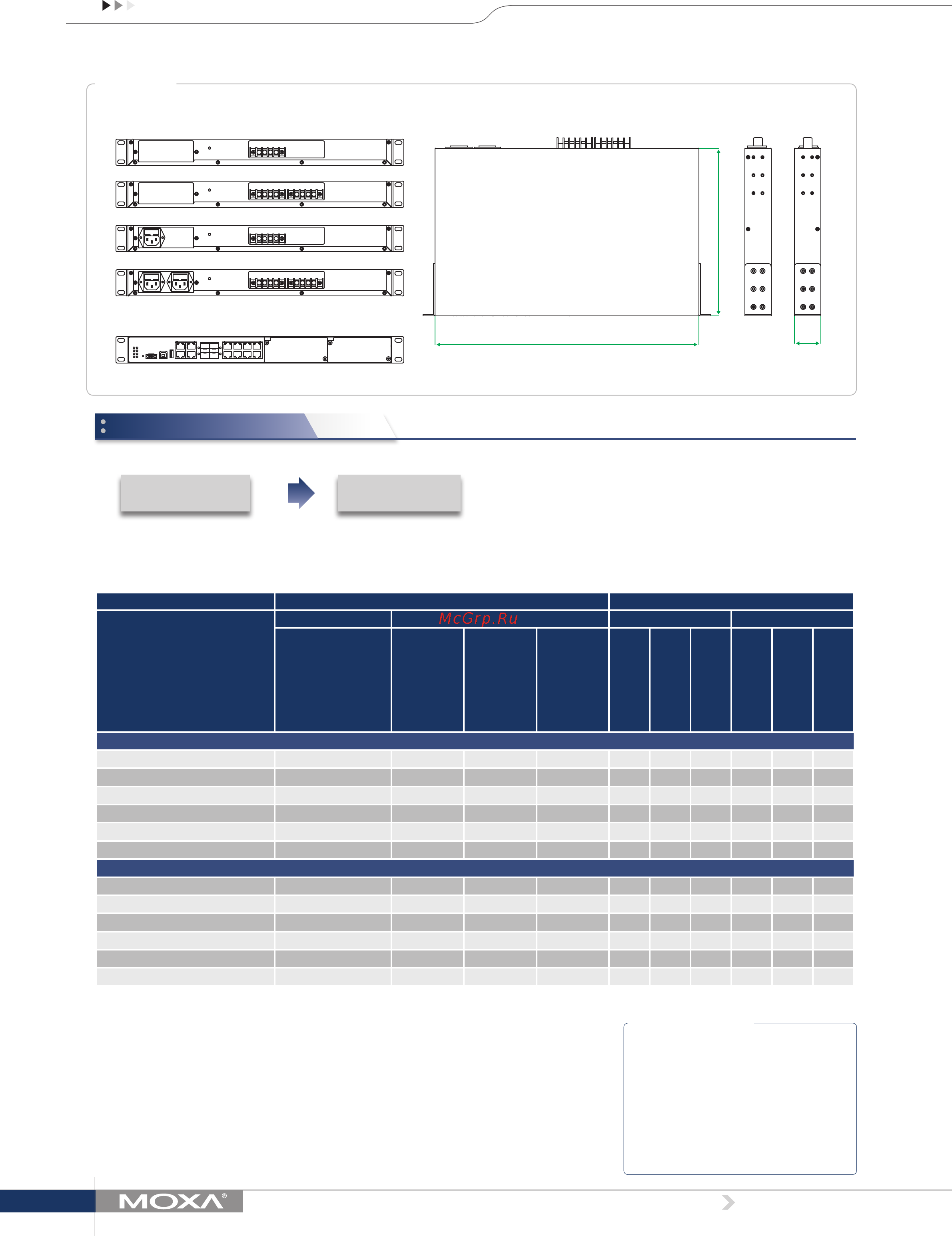

![Moxa IKS-6728A-4GTXSFP-48-48-T [3/8] Ordering information](/views2/1196582/page3/bg3.png)
Industrial Ethernet Solutions
3
www.moxa.com
440 (17.33)
280 (11.02)
44 (1.73)
IKS-6726A/6728A with
power supply
IM-6700A modules
(Fast Ethernet)
Step 1: Select Ethernet switch system
Step 2: Select interface modules
Note: The IKS-6726A/6728A Ethernet switch system is delivered without interface
modules. See the IM-6700A datasheet to determine which interface modules are suit-
able for your application.
Ordering Information
IKS-6726A/6728A Modular Rackmount Ethernet Switch System
Modular managed rackmount Ethernet switch with 8 fixed 10/100BaseT(X) ports, 2 or 4 Gigabit Copper/SFP combo ports, and 2 slots for Fast Ethernet
modules. Support up to 24+4G ports, -40 to 75°C operating temperature.
Available Models Port Interface Power Supply
Front Cabling, Wide Temperature
(-40 to 75 °C)
Gigabit Ethernet Fast Ethernet Isolated Power Supply 1 Isolated Power Supply 2
10/100/1000 BaseT(X)
or 100/1000BaseSFP*
10/100BaseT(X)
100BaseFX
100BaseSFP*
HV (85 to 264 VAC)
48 VDC
24 VDC
HV (85 to 264 VAC)
48 VDC
24 VDC
IKS-6726A Series
IKS-6726A-2GTXSFP-HV-T
2 Up to 24 Up to 12 Up to 18 1 – – – – –
IKS-6726A-2GTXSFP-HV-HV-T
2 Up to 24 Up to 12 Up to 18 1 – – 1 – –
IKS-6726A-2GTXSFP-24-T
2 Up to 24 Up to 12 Up to 18 – – 1 – – –
IKS-6726A-2GTXSFP-24-24-T
2 Up to 24 Up to 12 Up to 18 – – 1 – – 1
IKS-6726A-2GTXSFP-48-T
2 Up to 24 Up to 12 Up to 18 – 1 – – – –
IKS-6726A-2GTXSFP-48-48-T
2 Up to 24 Up to 12 Up to 18 – 1 – – 1 –
IKS-6728A Series
IKS-6728A-4GTXSFP-HV-T
4 Up to 24 Up to 12 Up to 20 1 – – – – –
IKS-6728A-4GTXSFP-HV-HV-T
4 Up to 24 Up to 12 Up to 20 1 – – 1 – –
IKS-6728A-4GTXSFP-24-T
4 Up to 24 Up to 12 Up to 20 – – 1 – – –
IKS-6728A-4GTXSFP-24-24-T
4 Up to 24 Up to 12 Up to 20 – – 1 – – 1
IKS-6728A-4GTXSFP-48-T
4 Up to 24 Up to 12 Up to 20 – 1 – – – –
IKS-6728A-4GTXSFP-48-48-T
4 Up to 24 Up to 12 Up to 20 – 1 – – 1 –
Note: The IKS-6726A/6728A series supports 100BaseSFP and 100/1000BaseSFP slots. See the SFP-1G and SFP-1FE datasheets for SFP module product information.
Rear View
Front View Top View Side View
Dimensions
Unit: mm (inch)
IKS-6728A-4GTXSFP Series
Optional Accessories (can be purchased separately)
MXview: Moxa industrial network management software with 50, 100, 250, 500, 1000, or 2000 nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices
ABC-02-USB: Configuration backup and restoration tool for managed Ethernet switches, 0 to 60°C
operating temperature
Power Cords: See Appendix A for details
Package Checklist
• IKS-6726A or IKS-6728A switch
• AC power cord (HV model only)
• Protective caps for unused ports
• 2 rackmount ears
• USB cable (Type A male to Type B male)
• Documentation and software CD
• Hardware installation guide (printed)
• Warranty card
