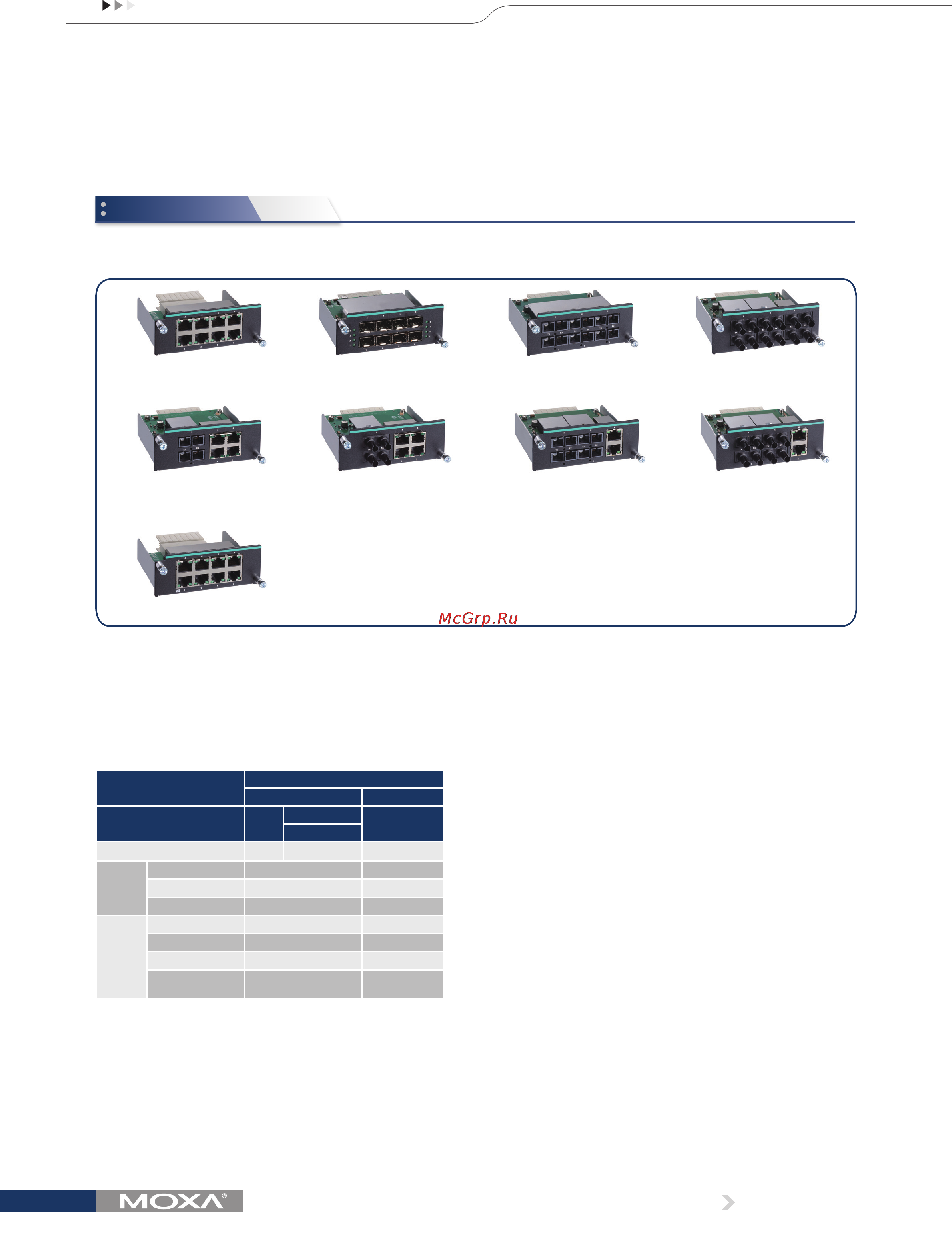

![Moxa IKS-6726A-2GTXSFP-48-T [4/8] Im 6700a series](/views2/1196582/page4/bg4.png)
Industrial Ethernet Solutions
4
www.moxa.com
IM-6700A Series
Fast Ethernet modules for IKS-6726A-2GTXSFP/IKS-6728A-4GTXSFP/
IKS-6728A-8PoE-4GTXSFP series switches
Fast Ethernet Interface Modules, IM-6700A series
*See the SFP-1FE datasheet for Fast Ethernet module product information.
**IM-6700A-8PoE is supported by the IKS-6728A-8PoE series
Specifications
Interface
RJ45 Ports: 10/100BaseT(X) auto negotiation speed, Full/Half duplex
mode, and auto MDI/MDI-X connection
Fiber Ports: 100BaseFX ports (SC/ST or SFP LC connector)
PoE Ports: 10/100BaseT(X) auto negotiation speed, Full/Half duplex
mode, and auto MDI/MDI-X connection, IEEE 802.3af/at standards,
Mode A
Optical Fiber
100BaseFX
Multi-Mode Single-Mode
Fiber Cable Type OM1
50/125 μm
G.652
800 MHz*km
Typical Distance
4 km 5 km 40 km
Wave-
length
Typical (nm) 1300 1310
TX Range (nm) 1260 to 1360 1280 to 1340
RX Range (nm) 1100 to 1600 1100 to 1600
Optical
Power
TX Range (dBm) -10 to -20 0 to -5
RX Range (dBm) -3 to -32 -3 to -34
Link Budget (dB) 12 29
Dispersion Penalty
(dB)
3 1
Note: When connecting a single-mode fiber transceiver, we recommend
using an attenuator to prevent damage caused by excessive optical power.
Note: Compute the “typical distance” of a specific fiber transceiver as
follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Power Requirements
Power Consumption:
IM-6700A-8TX: 1.21 W
IM-6700A-8PoE: 1.21 W (w/o PoE output)
IM-6700A-8SFP: 0.92 W
IM-6700A-6MSC/6MST/6SSC: 7.57 W
IM-6700A-4MSC2TX/4MST2TX/4SSC2TX: 5.28 W
IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 3.19 W
Physical Characteristics
Weight:
IM-6700A-8TX: 225 g (0.50 lb)
IM-6700A-8PoE: 260 g (0.58 lb)
IM-6700A-8SFP: 295 g (0.65 lb)
IM-6700A-6MSC-6MSC/6MST/6SSC: 390 g (0.86 lb)
IM-6700A-4MSC2TX-4MSC2TX/4MST2TX/4SSC2TX: 270 g (0.60 lb)
IM-6700A-2MSC4TX-2MSC4TX/2MST4TX/2SSC4TX: 270 g (0.60 lb)
Reliability
MTBF (mean time between failures):
IM-6700A-8TX: 10,412,400 hrs
IM-6700A-8SFP: 3,510,110 hrs
IM-6700A-6MSC: 366,119 hrs
IM-6700A-6MST: 365,741 hrs
IM-6700A-6SSC: 365,741 hrs
IM-6700A-4MSC2TX: 530,268 hrs
IM-6700A-4MST2TX: 537,942 hrs
IM-6700A-2MSC4TX: 1,031,180 hrs
IM-6700A-2MST4TX: 1,031,180 hrs
IM-6700A-2SSC4TX: 1,031,180 hrs
IM-6700A-8PoE: 338,800 hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
IM-6700A-8TX
IM-6700A-2MSC4TX
IM-6700A-2SSC4TX
IM-6700A-8PoE**
IM-6700A-2MST4TX IM-6700A-4MSC2TX
IM-6700A-4SSC2TX
IM-6700A-4MST2TX
IM-6700A-6SSC
IM-6700A-6MSC
IM-6700A-6MSTIM-6700A-8SFP*
