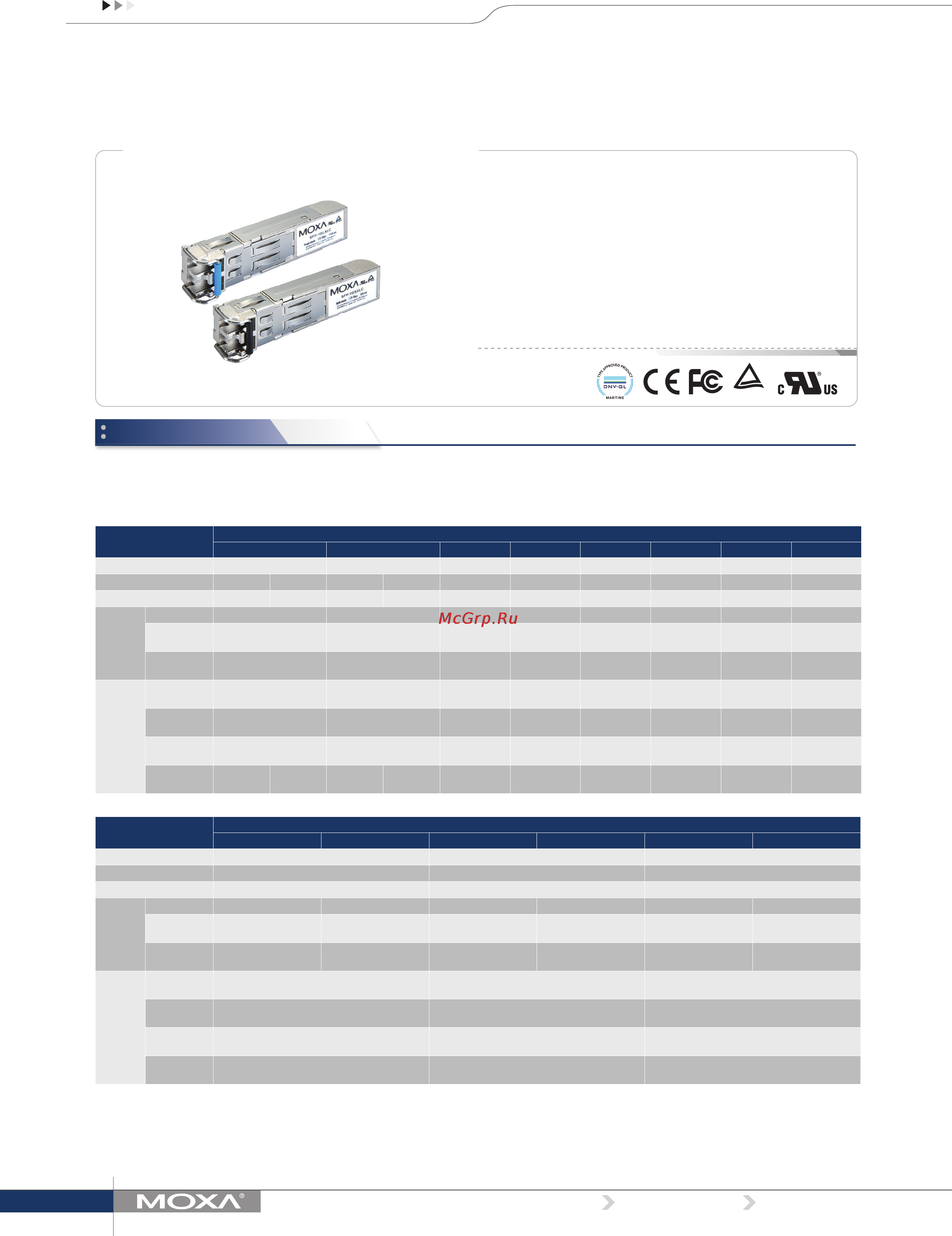

![Moxa IKS-6728A-8PoE-4GTXSFP-48-48-T [6/8] Sfp 1g series](/views2/1196663/page6/bg6.png)
6
www.moxa.com
info@moxa.com
Industrial Ethernet Solutions
SFP-1G Series
EN : 60825
1-port Gigabit Ethernet SFP modules
Specifications
› Digital Diagnostic Monitor Function
› -40 to 85°C operating temperature range (T models)
› IEEE 802.3z compliant
› Differential LVPECL inputs and outputs
› TTL signal detect indicator
› Hot pluggable LC duplex connector
› Class 1 laser product, complies with EN 60825-1
Interface
Ethernet Ports: 1
Connectors: Duplex LC Connector or Simplex LC Connector (WDM-type only)
Optical Fiber
Gigabit Ethernet SFP
SFP-SX SFP-LSX SFP-LX SFP-LH SFP-LHX SFP-ZX SFP-EZX SFP-EZX-120
Transceiver Type Multi-Mode Multi-Mode Single-Mode Single-Mode Single-Mode Single-Mode Single-Mode Single-Mode
Fiber Cable Type OM1 OM2 OM2 OM1 G.652 G.652 G.652 G.652 G.652 G.652
Typical Distance 300 m 550 m 1 km 2 km 10 km 30 km 40 km 80 km 110 km 120 km
Wave-
length
Typical (nm) 850 1310 1310 1310 1310 1550 1550 1550
TX Range
(nm)
830 to 860 1270 to 1355 1280 to 1355 1280 to 1355 1280 to 1340 1530 to 1570 1530 to 1570 1530 to 1570
RX Range
(nm)
770 to 860 1260 to 1610 1260 to 1610 1260 to 1610 1260 to 1610 1260 to 1610 1260 to 1610 1100 to 1600
Optical
Power
TX Range
(dBm)
-4 to -9.5 -1 to -9 -3 to -9 -3 to -8 +3 to -4 +5 to 0 +5 to 0 +3 to -2
RX Range
(dBm)
0 to -18 -1 to -19 -3 to -21 -3 to -23 -1 to -24 -1 to -24 -9 to -30 -8 to -33
Link Budget
(dB)
8.5 10 12 15 20 24 30 31
Dispersion
Penalty (dB)
4.3 3.6 5 5 1 1 1 1 1 2
Note: When connecting the SFP-LHX, ZX, EZX, or EZX-120, we recommened using an attenuator to prevent the transceiver from being damaged by excessive optical power.
WDM Gigabit Ethernet SFP
SFP-10A SFP-10B SFP-20A SFP-20B SFP-40A SFP-40B
Transceiver Type Single-Mode Single-Mode Single-Mode
Fiber Cable Type G.652 G.652 G.652
Typical Distance 10 km 20 km 40 km
Wave-
length
Typical (nm) TX 1310, RX 1550 TX 1550, RX 1310 TX 1310, RX 1550 TX 1550, RX 1310 TX 1310, RX 1550 TX 1550, RX 1310
TX Range
(nm)
1270 to 1355 1530 to 1570 1270 to 1355 1530 to 1570 1290 to 1330 1530 to 1570
RX Range
(nm)
1480 to 1580 1260 to 1360 1480 to 1580 1260 to 1360 1480 to 1580 1260 to 1360
Optical
Power
TX Range
(dBm)
-3 to -9 -2 to -8 +2 to -3
RX Range
(dBm)
-3 to -21 -2 to -23 -1 to -23
Link Budget
(dB)
12 15 20
Dispersion
Penalty (dB)
2 3 1
Note: WDM-type SFP modules must be used in pairs (e.g., SFP-1G10ALC and SFP-1G10BLC)
Note: When connecting the SFP-40A and 40B, we recommend using an attenuator to prevent damage caused by excessive optical power.
Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total
link loss(dB).
