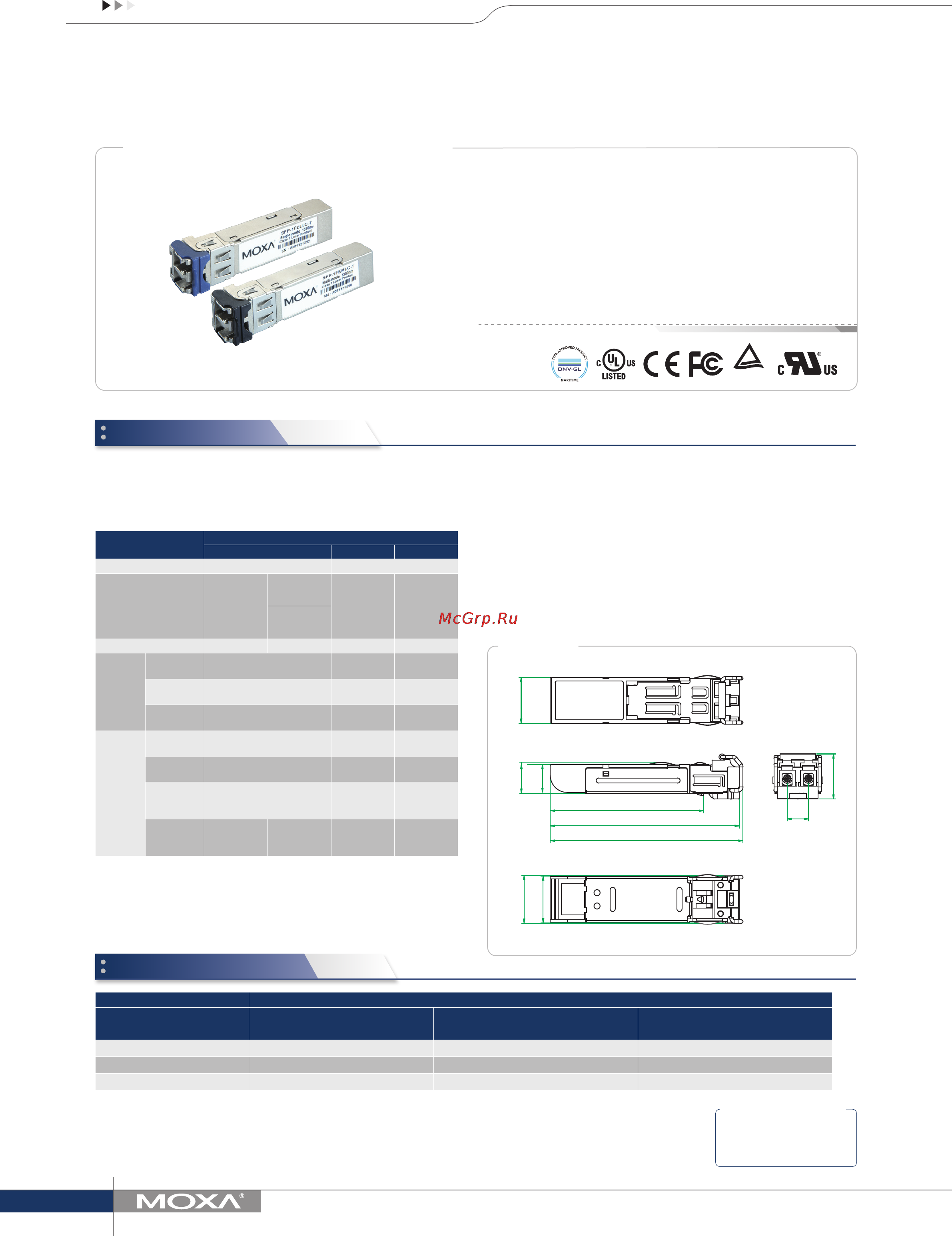

SFP-1FE Series
1-port Fast Ethernet SFP modules
› Digital Diagnostic Monitor Function
› IEEE 802.3u compliant
› Differential PECL inputs and outputs
› TTL signal detect indicator
› Hot pluggable LC duplex connector
› Class 1 laser product; complies with EN 60825-1
EN : 60825
Interface
Ethernet Ports: 1
Connectors: Duplex LC Connector
Optical Fiber
Fast Ethernet SFP
SFP-M SFP-S SFP-L
Transceiver Type Multi-Mode Single-Mode
Fiber Cable Type OM1/OM2
62.5/125,
50/125 μm
G.652 G.652
800
MHz*km
Typical Distance 2 km 4 km 40 km 80 km
Wave-
length
Typical
(nm)
1310 1310 1550
TX Range
(nm)
1280 to 1340
1280 to
1340
1530 to
1570
RX Range
(nm)
1100 to 1650
1100 to
1600
1100 to
1600
Optical
Power
TX Range
(dBm)
-8 to -18 0 to -5 0 to -5
RX Range
(dBm)
-3 to -32 -3 to -34 -3 to -34
Link
Budget
(dB)
14 29 29
Dispersion
Penalty
(dB)
2 3 1 1
Note: When connecting the SFP-S or L, we recommend using an attenuator to
prevent damage caused by excessive optical power.
Power Requirements
Power Consumption: Max. 1 W
Environmental Limits
Available Models Port Interface
Wide Temperature
(-40 to 85˚C)
100BaseFX, Multi-Mode,
LC Connector, 4 km
100BaseFX, Single-Mode,
LC Connector, 40 km
100BaseFX, Single-Mode,
LC Connector, 80 km
SFP-1FEMLC-T
1 – –
SFP-1FESLC-T
– 1 –
SFP-1FELLC-T
– – 1
Ordering Information
Specifications
Rear View
13.4 (0.5)
45.0 (1.8)
6.3 (0.2)
55.5 (2.2)
56.6 (2.2)
8.4 (0.3)
13.4 (0.5)
14.0 (0.6)
13.7 (0.5)
8.2
(0.3)
Side View
Top View
Dimensions
Unit: mm (inch)
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: CE, FCC, TÜV, UL 60950-1
Marine: DNV, GL
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Package Checklist
• SFP-1FE module
• Warranty card
