Moxa TN-5305-T [3/11] Mounting dimensions unit mm

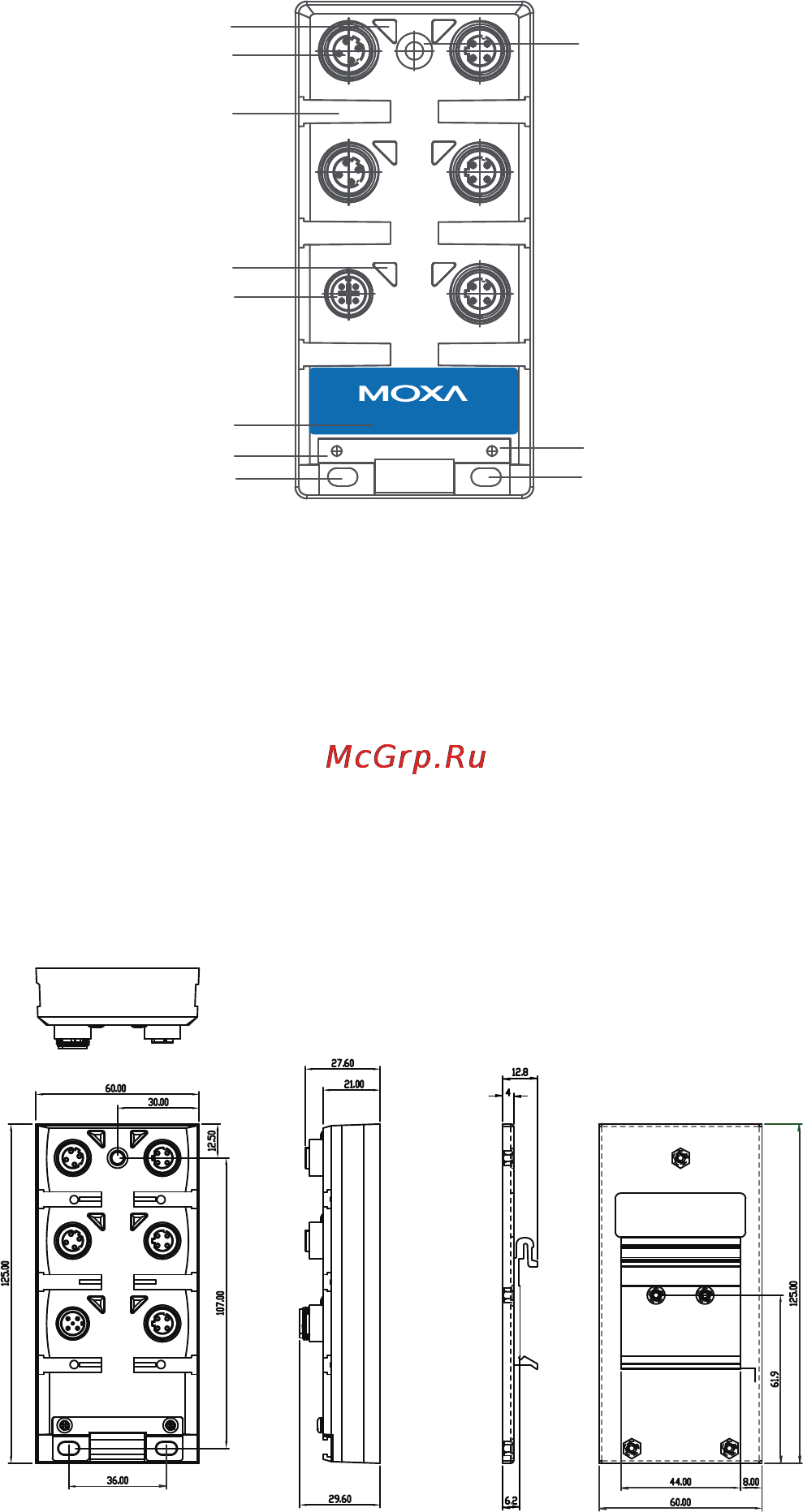

TN-5305 Panel Layouts

Front Panel View

1. M12 port’s 10/100 Mbps LED.

2. 10/100BaseT(X) port (4-pin female shielded M12 socket with D coding).

3. Port Label.

4. Power input (5-pin male shielded M12 socket with A coding).

5. Power input (PWR) LED.

6. Model name.

7. Holes for attaching the TN-5305 to a wall with screws (there are 3 holes:

bottom left, bottom right, and top middle).

8. Grounding screws.

Mounting Dimensions (unit = mm)

Front View Side View DIN-Rail Mounting Kit
