Moxa TN-5305-T [4/11] Din rail mounting optional

- 4 -

Panel/Wall Mounting

To mount the TN-5305 on the wall use the 3 screws included in the panel

mounting kit.

STEP 1: Make 3 screw holes on the wall based on the positions of the 3 screw

holes on the switch shown in the mounting dimensions diagram.

STEP 2: Insert one screw in the top-middle screw hole on the switch and

screw it into the wall.

STEP 3: Screw in the remaining 2 screws through the bottom-left and

bottom-right holes on the switch.

DIN-Rail Mounting (optional)

Use the optional DIN-Rail mounting kit (DK-M12-305, must be purchased

separately) to mount the TN-5305 on a 35-mm DIN rail.

STEP 1:

Fix the DIN-Rail attachment plate to the rear panel of the switch as shown in

the above figure.

STEP 2:

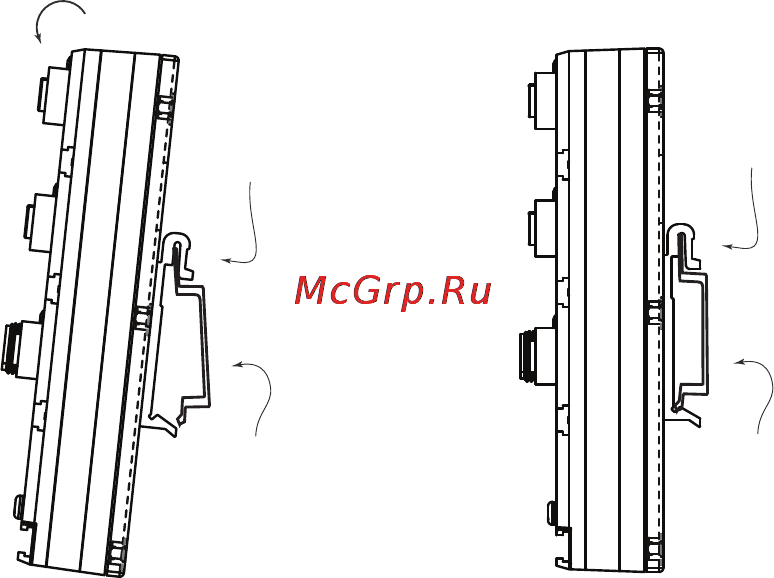

Position the top hook of the DIN-Rail

attachment plate to the top edge of

the rail.

STEP 3:

Rotate the switch downwards until

the bottom of the attachment plate

latches onto the bottom edge of the

rail.

Metal

spring

DIN-Rail

Metal

spring

DIN-Rail

To remove the switch from the DIN-Rail, simply reverse Steps 2 and 3 above.
