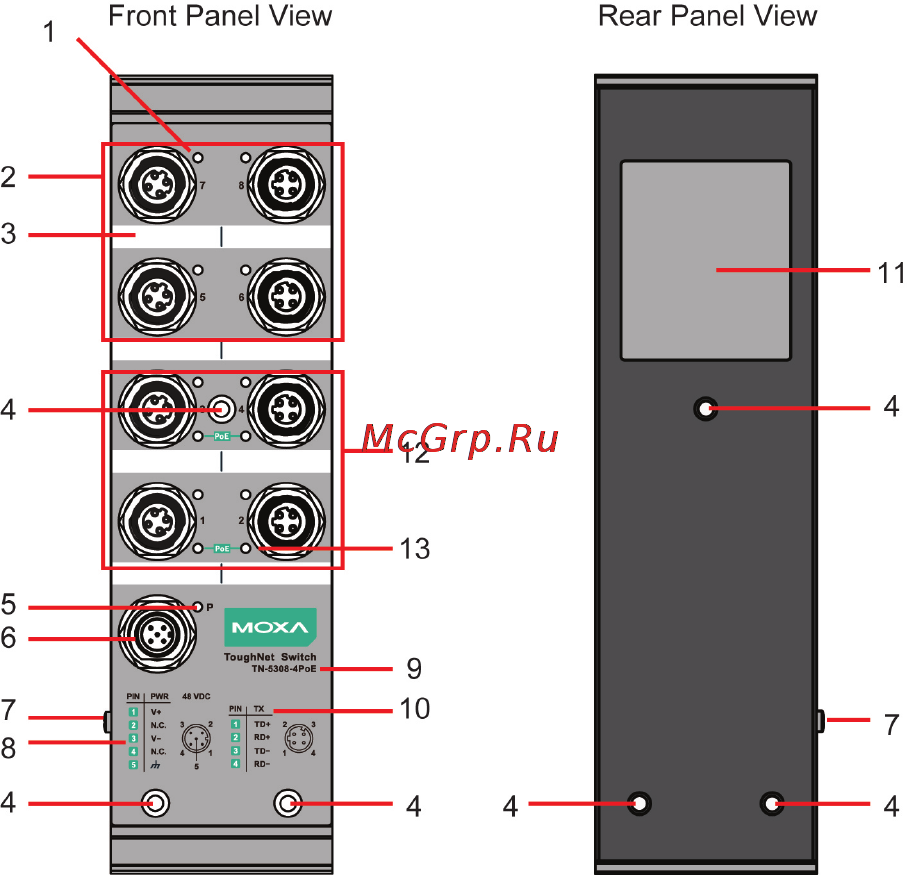

TN-5308-4PoE Panel Layouts

TP port’s 10/100 Mbps LED

2. 10/100BaseT(X) port

(female 4-pin shielded M12 connector with D coding)

3. Port label

4. Screw holes for panel mounting kit or DIN rail mounting kit

(there are 3 holes: top middle, bottom left, and bottom right)

5. Power input LED

6. Power input port

(male 5-pin shielded M12 connector with A coding)

7. Grounding screw

8. Power input port pin assignment

9. Model name

TP port pin assignment

10/100BaseT(X) PoE port

(female 4-pin shielded M12 connector with D coding)

PoE port’s LED
