- 6 -

NOTE

Please use the screws (M3 x 40 mm) packed in the panel

mounting kit.

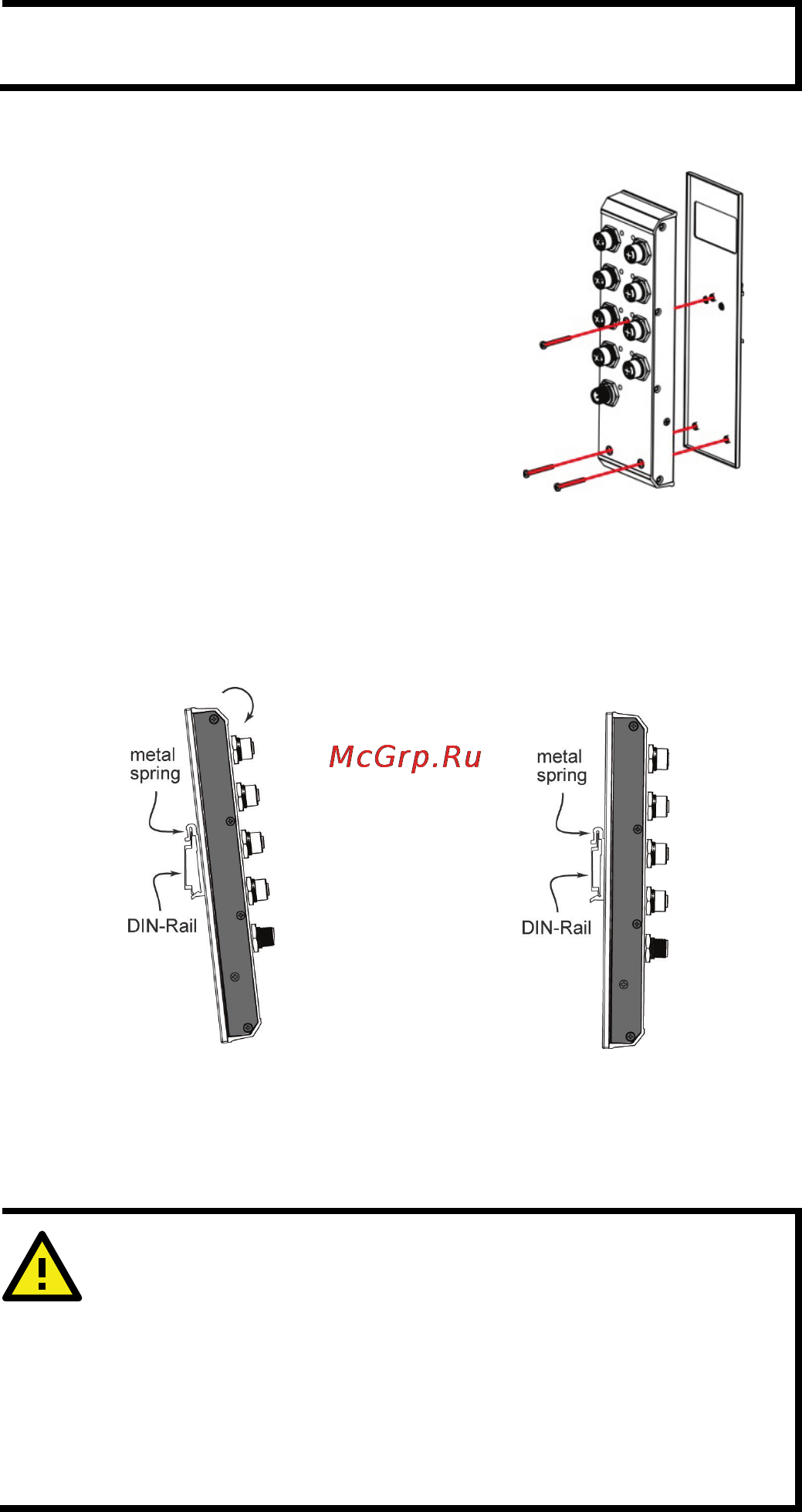

DIN-Rail Mounting (optional)

With the optional DIN-Rail mounting kit

-TN-5308-4/8PoE (must be purchased

separately), you can mount the

-5308-4/8PoE on a 35mm DIN-Rail.

STEP 1:

Fix the DIN

-Rail attachment plate onto the

rear panel of the switch as shown in the

figure at the right.

STEP 2:

Position the TN

-5308-4/8PoE on

the DIN

-Rail, tilting to hook

clamps over the top edge of the

rail.

STEP 3:

Swing the switch down fully onto the

DIN

-Rail until both clamps

completely latch.

To remove the Moxa ToughNet Switch from the DIN-Rail, simply reverse

Steps 2 and 3 above.

Wiring Requirements

WARNING

Turn the power off before disconnecting modules or wires. The

correct power supply voltage is listed on the product label. Check

the voltage of your power sourc

e to make sure you are using

the

correct voltage. Do NOT use a voltage greater than what is

specified on the product label.

These devices must be supplied by a SELV source as defined in

the Low Voltage Directive 2006/95/EC and 2004/108/EC.
